iFlightPlanner



...

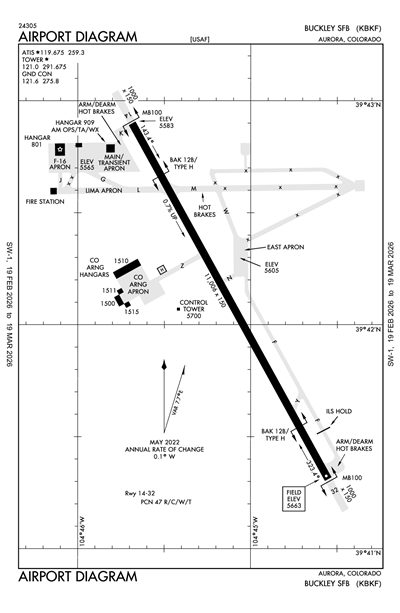

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBKF
BUCKLEY SPACE FORCE BASE
PrivatePVT

0 miles N of AURORA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 42' 06"N 104° 45' 07"W
5663' MSL
6663' MSL
08E
JET A+, CILI
DENVER (DEN)
DENVER
DENVER (ZDV)
4/17/25-5/15/25
KBKF VFR
8:58 AM MST
Few 22,000'
Few 9,000'
10sm
48°F
8°F
29.96"Hg
260° 9kts
AO2A SLP117 T00891135
METAR KBKF 061558Z 26009KT 10SM FEW090 FEW220 09/M13 A2996 RMK AO2A SLP117 T00891135
+ Add Your Business

KBKF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 119.675

Emergency

EMERG
 121.5

Ground

GND/P
 121.6

Tower

LCL/P
 121.0

Other

ARNG OPS
ARNG OPS-OUTLAW
 32.5
ARNG OPS
ARNG OPS-OUTLAW
 149.1

Terminal Area Forecast

KBKF
Tue, 1/6 2:00 AM MST
Tue, 1/6 2:00 AM MST - Wed, 1/7 8:00 AM MST
VFR
2:00 AM MST - 5:00 AM MST
Few 24,000'
Few 19,000'
6sm
29.91"Hg
260° 9kts
Gusts 20kts
VFR
Becoming 5:00 AM MST - 8:00 AM MST
Broken 22,000'
Few 15,000'
6sm
29.79"Hg
VRB° 6kts
TAF KBKF 060900Z 0609/0715 26009G20KT 9999 FEW190 FEW240 QNH2992INS
   BECMG 0612/0613 VRB06KT 9999 FEW150 BKN220 QNH2980INS TX11/0622Z TNM03/0715Z
KBKF
EffectiveExpiresCategoryNOTAM
FDC
11/21/25
1455Z
!FDC 5/0337 BKF SID BUCKLEY SPACE FORCE BASE, AURORA, CO.
PLAINS TWO DEPARTURE...
GARDEN CITY TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VORTAC OUT OF SERVICE. 2511211455-2602111455EST
10/23/25
1615Z
1/7/26
1615Z
!FDC 5/5341 BKF SID BUCKLEY SPACE FORCE BASE, AURORA, CO.
PIKES THREE DEPARTURE...
ALAMOSA TRANSITION, BINKE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ALS VORTAC OUT OF SERVICE. 2510231615-2601071615EST
9/26/25
1700Z
9/26/27
2359Z
!FDC 5/0967 BKF STAR BUCKLEY SPACE FORCE BASE AIRPORT, AURORA, CO.
DANDD ONE ARRIVAL: INCREASE ALL MOCA VALUES TO 8300. ALL OTHER DATA
REMAINS AS PUBLISHED 2509261700-2709262359
8/22/25
1532Z
!FDC 5/1811 BKF SID BUCKLEY SPACE FORCE BASE, AURORA, CO.
ROCKIES SEVEN DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2508221532-2604031532EST
Military
12/29/25
2158Z
1/1/26
2158Z
M0787/25 NOTAMC M0786/25
12/29/25
1645Z
1/1/26
1645Z
M0785/25 NOTAMC M0784/25
12/29/25
1538Z
1/1/26
1538Z
M0783/25 NOTAMC M0782/25
12/28/25
2057Z
12/31/25
2057Z
M0781/25 NOTAMC M0780/25
12/28/25
2006Z
12/31/25
2006Z
M0779/25 NOTAMC M0772/25
12/28/25
1823Z
12/31/25
1823Z
M0778/25 NOTAMC M0776/25
12/28/25
1820Z
12/31/25
1820Z
M0777/25 NOTAMC M0774/25
12/28/25
1328Z
12/31/25
1328Z
M0775/25 NOTAMC M0773/25
12/10/25
1400Z
2/6/26
2330Z
Apron!KBKF M0755/25 BKF APRON CO ARNG APRON CONST AREA LGTD AND BARRICADED ON SOUTH SIDE OF APRON WED THU FRI MON TUE 1400-2330 2512101400-2602062330
12/9/25
0001Z
1/15/26
2359Z
F-16 APRON SPOTS 13-16 CLOSED FOR STAGING EQUIPMENT
12/4/25
1714Z
2/4/26
2359Z
OBSTN LGT OUT OF SERVICE ON TOWER APPROXIMATELY 980 FEET EAST OF APCH END RWY 32
11/11/25
1300Z
2/6/26
2359Z
OBST 80 FT CRANE ERECTED 3375 FT WEST OF RWY 14 THRESHOLD
11/2/25
1400Z
1/30/26
2300Z
OBST 75 FT CRANE ERECTED 2477 FT NORTHEAST OF RWY14 THRESHOLD
11/2/25
1300Z
1/31/26
0030Z
OBST 210 FT CRANE ERECTED 1.75 NM NORTHEAST OF RWY14 THRESHOLD
11/2/25
0700Z
1/30/26
1300Z
OBST LIGHTED 128 FT CRANE ERECTED 2100 FT NORTHEAST OF RWY 14 THRESHOLD
10/20/25
2324Z
1/21/26
2359Z
Aerodrome!KBKF V0020/25 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-TACAN RWY 14 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2510202324-2601212359
10/20/25
2323Z
1/21/26
2359Z
Aerodrome!KBKF V0019/25 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC/DME RWY 32, INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2510202323-2601212359
10/20/25
2323Z
1/21/26
2359Z
Aerodrome!KBKF V0018/25 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2510202323-2601212359
10/20/25
2322Z
1/21/26
2359Z
Aerodrome!KBKF V0017/25 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-ILS LOC/DME RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2510202322-2601212359
10/20/25
2322Z
1/21/26
2359Z
Aerodrome!KBKF V0016/25 BKF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED HI-TACAN RWY 32 INCREASE CAT E CIRCLING MINIMUMS 6440-2¾ 777 (800-2¾) 2510202322-2601212359
10/16/25
1955Z
1/10/26
2359Z
AerodromeAERODROME TRANSIENT LAV TRUCK UNSERVICEABLE
Yes
TUE-SAT 0630-2230
SUN-MON 0800-1600
USAF LICENSED TO COANG
BUCKLEY ANGB
AURORA, CO 80011
CHIEF AIRFIELD MANAGEMENT
HQCOANG DET 1/CC BUCKLEY ANGB
AURORA, CO 80011
Phone: 720-847-9650
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 14/32

11006 ft. x 150 ft.

PEM
NONE
HIGH
47 /R/C/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 151°331°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition
Latitude 39° 42' 54"N 39° 41' 19"N
Longitude 104° 45' 41"W 104° 44' 33"W
Elevation 5,583' 5,663'
Threshold Crossing Height 40 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-11OIL - O-148 SOAP-AVBL 1315-2400Z++ TUE-FRI.
A110-17BEARING STRENGTH RWY 14-32: T140, ST175, TT280
A110-18FLUID - SP PRESAIR LOX LHOX, LHNIT, DE-ICE AVBL.
A110-20JASU - 1(A/M32A-86) 2(AM32A-60A) 2(AM32A-95)
A110-22FIRST 3836 FT RWY 14, FIRST 1710 FT RWY 32 CONC; MIDDLE 5460 FT RWY 14-32 ASPHALT. FOUR ENG ACFT TAXI WITH INBOARD ENG ONLY PRIOR TO DEP/AFTER LDG FOR FOD CTL.
A110-23LGT - RWY 32 ILS GS/RPI AND PAPI GS/RRP NOT COINCIDENTAL.
A110-24TFC PAT - RWY 32 LEFT TFC, RWY 14 RGT TFC, OVERHEAD 7200 FT. FTR ACFT EXP CLSD TFC AND OVERHEAD PAT E OF BUCKLEY FOR NOISE AVOIDANCE.
A110-25LARGE/HVY ACFT REQ U-TURN ON RWY, MAKE LEFT TURNS AT RWY END ON THE CONCRETE PORTION. AVOID OVFT RADAR DOMES NW RWY 14-32.
A110-26LDG ILLUSION EXISTS ON SHORT FINAL RWY 14. TERRAIN RISES SHORT OF THLD THEN DESCENDS FOR 2000 FT CREATING ILLUSION OF ACFT BEING HI ON FINAL AND EXCESSIVE GND RUSH. EXTRA CAUTION SHOULD BE USED DUR NGT LDG.
A110-3RSTD - PPR FOR ALL ACFT EXC BASE-ASGN, DSN 847-9650/9651/9652 C720-847-9650/9651/9652; MIN 24 HR NTC REQ AND NO MORE THAN 7 DAYS PRIOR TO ARR. TRAN ACFT VFR PAT WORK LTD TO SINGLE PRACTICE APCH FOLLOWED BY FULL STOP LDG. MULTIPLE VFR PRACTICE APCH UNAUTHD FOR ACFT NOT LDG BUCKLEY AFB. TRAN ACFT MAY BE REQ TO FLY STR-IN FULL STOP. C5,C-17,KC10, F4,EA6, F14 ACFT START RUN-UP 300 FT DOWN RWY PRIOR TO TKOF TO PREVENT ASPHALT AND LGT SYS DAMAGE.
A110-30RSTD:TWY L IS CLSD TO ALL TRANSIENTS.
A110-33CLASS D AIRSPACE EFF CONT.
A110-35UNLGT OBST SW OF RWY 32.
A110-37ARNG OPS: OPS DSN 250-1623/20, C720-250-1623/20.
A110-39FOR NML DAY-TO-DAY OPS, ACFT OTHER THAN F-16S MAY BE HELD ON THE TRANS APRON OR OTHER TWY/APRON WAITING FOR WG ASGN ACFT TO CLEAR THE ARM/DEARM AREA.
A110-40CAUTION: HI FOD POTENTIAL ON TWY M EAST OF TWY W DUE TO PAVEMENT BREAKUP.
A110-42A-GEAR: BAK-12B(B)/TYPE-H A-G STD CONFIGURATION IS DEP END CABLE IN RAISED POSN FOR LCL ASGN F-16 ACFT DEP; ALL OT IN LOWERED POSN.
A110-43RSTD: AFLD LTD TO BASE ASGN ACFT ONLY FR 0530-1330Z++ TUE-SAT AND 2300-1500Z++ SUN AND MON.
A110-44AERODROME CONST AREA W SIDE RWY 32 THLD APRX 500 FEET FR EDGE OF RWY; NON-FRANGIBLE CONC SCRAPS LCTD IN VCNTY.
A110-45RSTD: ACFT MUST ADHERE TO PPR ARR BLOCK +/- 30 MIN OF SKED LDG.
A110-46CSTMS/AG/IMG: SVC LTD TO 140TH WG ACFT AND AMC ACFT SUPPORTING 140TH WG MSN ONLY.
A110-47TRAN ALERT: OPR 1230-0230Z++ TUE-FRI, CLSD SAT-MON. ACFT DEICING EQUIP NOT AVBL.
A110-48BASE OPS OPR H24.
A110-5CAUTION - HI MID-AIR COLLISION POTENTIAL, EXTREME VIGILANCE RQR. HVY BIRD ACT DUR PEAK MIGRATION PERIODS (BASH PHASE II MAR-MAY AND OCT-NOV) MAY POSE A POTENTIAL HAZ TO ACFT, ESPECIALLY DUR MORNING/EVENING HRS. ALL OTHER MONTHS PHASE I. CTC ATIS OR PTD FOR CURRENT BWC. POSSIBLE CROSSWIND HAZARD RWY 14/32.UNLGTD FENCE AROUND AIRFIELD.
A110-6CAUTION: HVY COML TFC ON DENVER INTL RY 35 ILS CRS BTN 6500 FT & 12,000 FT 2 NM E OF BUCKLEY. HVY UNCTL GA TFC FM CENTENNIAL 9 NM SW. TFC IS CONCENTRATED FR SFC TO 10,000 FT S, SE AND E OF BUCKLEY CLASS D AIRSPACE.
BUCKLEY SPACE FORCE BASE (ICAO: KBKF, IATA: BKF) is a private airport located in AURORA, CO.
