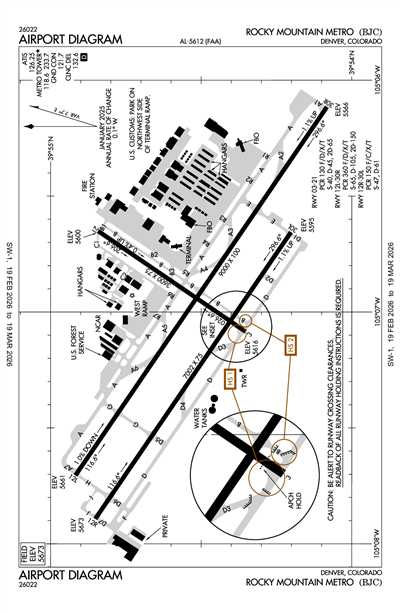

ROCKY MOUNTAIN METRO - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBJC
ICAO KBJCIATA BJCLocal BJC
ROCKY MOUNTAIN METRO
PublicPUB

9 miles NW of DENVER, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 54' 32"N 105° 07' 02"W
Elevation
5673' MSL
Pattern Alt
6673' MSL
Mag Variation
8°E
Declination
9°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KBJC VFR
1:55 AM MST
Clear
10sm
34°F
32°F
30.16"Hg
270° 3kts
AO2
METAR KBJC 040855Z AUTO 27003KT 10SM CLR 01/00 A3016 RMK AO2
+ Add Your Business

KBJC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.25
(303) 466-8744
AWOS-3 (720) 887-8067

Common

CTAF 118.6
WHEN ATCT CLSD ACTVT MALSR RWY 30R; REIL RWY 12L, 12R & 30L; PAPI RWY 03, 12L, 12R, 21, 30L & 30R; MIRL RWY 03/21 & 12R/30L; HIRL RWY 12L/30R - CTAF.

Clearance

Clearance Delivery 132.6

Ground

METRO GROUND 121.7
0600-2200

Tower

METRO TOWER 118.6
0600-2200
METRO TOWER 123.95
0600-2200, Secondary

Arrival

BRNKO RNAV STAR 127.05
DANDD STAR 120.35
DUNNN RNAV STAR 128.45
POWDR STAR 120.35
QUAIL STAR 120.35
RAMMS STAR 120.35
TOMSN STAR 119.3

Approach

DENVER APPROACH 125.125

Departure

DENVER DEPARTURE 125.125

Terminal Area Forecast

KBJC
Tue, 3/3 10:38 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 AM MST
Broken 10,000'
Scattered 2,000'
Few 100'
6sm
270° 6kts
VFR
1:00 AM MST - 6:00 AM MST
Scattered 2,000'
Few 100'
6sm
240° 6kts
VFR
6:00 AM MST - 11:00 AM MST
Few 15,000'
6sm
180° 6kts
VFR
11:00 AM MST - 9:00 PM MST
Few 15,000'
6sm
100° 6kts
VFR
9:00 PM MST - 11:00 PM MST
Sky Clear
6sm
240° 7kts
TAF KBJC 040538Z 0406/0506 27006KT P6SM FEW001 SCT020 BKN100
   FM040800 24006KT P6SM FEW001 SCT020
   FM041300 18006KT P6SM FEW150
   FM041800 10006KT P6SM FEW150
   FM050400 24007KT P6SM SKC
KBJC
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
0200Z
11/1/26
0400Z
!BJC 03/002 BJC SVC TWR CLSD MNT CTAF 118.6 CTC DENVER APP FOR CLR DELIVERY ON 125.125 OR AT 303-342-1916 DLY 0200-0400 2603090200-2611010400
3/8/26
1200Z
10/31/26
1300Z
!BJC 03/001 BJC SVC TWR CLSD MNT CTAF 118.6 CTC DENVER APP FOR CLR DELIVERY ON 125.125 OR AT 303-342-1916 DLY 1200-1300 2603081200-2610311300
3/4/26
1700Z
3/4/26
2100Z
!BJC 03/007 BJC AIRSPACE UNMANNED FREE BALLLON 395657N1051150W (3.3NM NW BJC) SFC-FL950 ESEB 2603041700-2603042100
3/3/26
1428Z
3/6/26
2359Z
!BJC 03/006 BJC OBST TOWER LGT (ASN 2009-WTW-1857-OE) 395422N1051331W (5.0NM W BJC) 6498FT (445FT AGL) U/S 2603031428-2603062359
3/2/26
0357Z
Runway!BJC 03/003 BJC RWY 30R PAPI U/S 2603020357-2604062000EST
2/26/26
1300Z
3/7/26
1400Z
!BJC 02/024 BJC SVC TWR CLSD MNT CTAF 118.6 CTC DENVER APP FOR CLR DELIVERY ON 125.125 OR AT 303-342-1916 DLY 1300-1400 2602261300-2603071400
2/26/26
0300Z
3/8/26
0500Z
!BJC 02/025 BJC SVC TWR CLSD MNT CTAF 118.6 CTC DENVER APP FOR CLR DELIVERY ON 125.125 OR AT 303-342-1916 DLY 0300-0500 2602260300-2603080500
2/16/26
1900Z
1/1/27
0659Z
!BJC 02/014 BJC AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
394331.60N1050455.10W (11.1NM SSE BJC) SFC-400FT AGL
2602161900-2701010659
10/2/25
1500Z
!BJC 10/004 BJC TWY F EAST 650FT CLSD 2510021500-PERM
4/15/25
1222Z
9/1/27
0130Z
!BJC 04/041 BJC AIRSPACE SEE BRK 04/434 AEROBATIC ACFT DLY SR-SS 2504151222-2709010130
FDC
3/3/26
2027Z
4/3/26
2027Z
!FDC 6/2955 BJC IAP ROCKY MOUNTAIN METRO, DENVER, CO.
ILS OR LOC RWY 30R, AMDT 15A...
MISSED APPROACH: CLIMB TO 6380 THEN CLIMBING RIGHT TURN TO 10400 ON HEADING 360 AND ON DEN VOR/DME R-302 TO HYGEN INT/DEN 31.49 DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 10400,
FQF VORTAC OUT OF SERVICE. 2603032027-2604032027EST
3/3/26
1955Z
3/31/26
1955Z
!FDC 6/2909 BJC IAP ROCKY MOUNTAIN METRO, DENVER, CO.
ILS OR LOC RWY 30R, AMDT 15A...
MISSED APPROACH: CLIMB TO 6380 THEN CLIMBING RIGHT TURN TO 10400 ON HEADING 360 AND ON DEN VORIDME R-302 TO HYGEN INT/DEN 31.49 DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 10400.
2603031955-2603311955EST
2/28/26
1814Z
4/8/26
1814Z
!FDC 6/1540 BJC IAP ROCKY MOUNTAIN METRO, DENVER, CO.
ILS OR LOC RWY 30R, AMDT 15A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FQF VORTAC UNMONITORED. 2602281814-2604081814EST
2/5/26
1830Z
!FDC 6/0692 BJC SID ROCKY MOUNTAIN METRO, DENVER, CO.
PLAINS TWO DEPARTURE...
GARDEN CITY TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VORTAC OUT OF SERVICE. 2602051830-2604021830EST
1/5/26
1434Z
8/17/26
1434Z
!FDC 6/0366 BJC SID ROCKY MOUNTAIN METRO, DENVER, CO.
PIKES THREE DEPARTURE...
ALAMOSA TRANSITION, BINKE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ALS VORTAC OUT OF SERVICE. 2601051434-2608171434EST
12/15/25
1631Z
!FDC 5/9235 BJC IAP ROCKY MOUNTAIN METRO, DENVER, CO.
RNAV (GPS) RWY 30L, AMDT 2...
LNAV/VNAV DA 5945/HAT 317, VIS 7/8 ALL CATS.
LNAV MDA 6040/HAT 412 ALL CATS, VIS CATS C/D 1 1/8.
TEMPORARY CRANE 5734 MSL, 3584FT NE OF RWY 30L (2025-ANM-3762-NRA).
2512151631-2607271630EST
9/26/25
1700Z
9/26/27
2359Z
!FDC 5/0966 BJC STAR ROCKY MOUNTAIN METRO AIRPORT, DENVER, CO.
DANDD ONE ARRIVAL: INCREASE ALL MOCA VALUES TO 8300. ALL OTHER DATA
REMAINS AS PUBLISHED 2509261700-2709262359
8/22/25
1532Z
!FDC 5/1812 BJC SID ROCKY MOUNTAIN METRO, DENVER, CO.
ROCKIES SEVEN DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2508221532-2604031532EST
Yes
ALL
JEFFERSON COUNTY
100 JEFFERSON CO PKWY
GOLDEN, CO 80419
Phone: (303) 271-4850
ERICK DAHL
11755 AIRPORT WAY
BROOMFIELD, CO 80021
Phone: (303) 271-4851
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
BJC
--
WHEN ATCT CLSD ACTVT MALSR RWY 30R; REIL RWY 12L, 12R & 30L; PAPI RWY 03, 12L, 12R, 21, 30L & 30R; MIRL RWY 03/21 & 12R/30L; HIRL RWY 12L/30R - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

3600 ft. x 75 ft.
ASPH
Fair
NONE
MED

40,000lbs
45,000lbs
65,000lbs
--
  Runway 03 Runway 21
True Heading 34°214°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 39° 54' 21"N 39° 54' 51"N
Longitude 105° 07' 05"W 105° 06' 39"W
Elevation 5,616' 5,600'
Threshold Crossing Height 30 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12L/30R

9000 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

65,000lbs
105,000lbs
150,000lbs
--
  Runway 12L Runway 30R
True Heading 124°304°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 39° 54' 55"N 39° 54' 05"N
Longitude 105° 07' 42"W 105° 06' 07"W
Elevation 5,660' 5,566'
Threshold Crossing Height 41 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 12R/30L

7002 ft. x 75 ft.
ASPH
Good
GRVD
MED

47,000lbs
61,000lbs
--
--
  Runway 12R Runway 30L
True Heading 124°304°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 54' 51"N 39° 54' 12"N
Longitude 105° 07' 54"W 105° 06' 39"W
Elevation 5,673' 5,595'
Threshold Crossing Height 40 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1BIRDS & WILDLIFE ON & INVOF RWY.
A110-11TWY C1 & D MKD WITH REFLECTORS.
A110-13N TRML RAMP SLP EXCEEDS RCMDD STD.
A110-14HEL ARR/DEP FM RWY & TWYS.
A110-16ARFF INDEX B AVBL PPR - 720-352-0395
A110-17PILOTS ARE REQUESTED TO AVOID FLIGHT DUE TO NESTING EAGLES: BLW 6500 FT MSL, BJC VOR 25 DEG RADIAL, 2.7 DME; OVER STANDLEY LAKE BLW 8000 FT MSL, BJC VOR 150 DEG RADIAL, 3.0 DME.
A110-2NOISE ABATEMENT PROC IN EFCT - 303-271-4850.
A110-8FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A2624 HR PPR FOR UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS - 720-352-0395.
A39-03/21PCR VALUE: 130/F/D/X/T
A39-12L/30RPCR VALUE: 360/F/D/X/T
A39-12R/30LPCR VALUE: 150/F/C/X/T
A70-100LL100LL SELF SVC.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 30R; REIL RWY 12L, 12R & 30L; PAPI RWY 03, 12L, 12R, 21, 30L & 30R; MIRL RWY 03/21 & 12R/30L; HIRL RWY 12L/30R - CTAF.
ROCKY MOUNTAIN METRO (ICAO: KBJC, IATA: BJC) is a public airport located in DENVER, CO, US.
