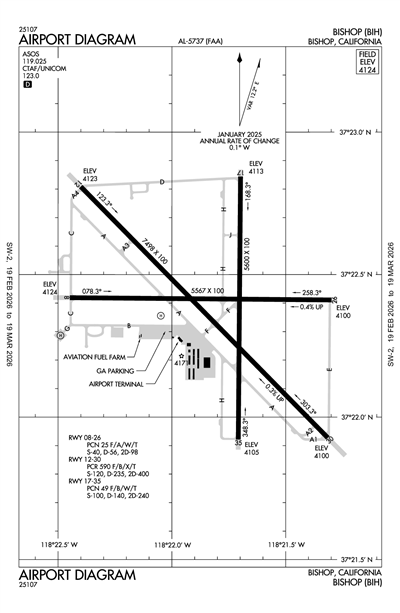

BISHOP - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBIH
BISHOP
PublicPUB

2 miles E of BISHOP, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 22' 23"N 118° 21' 49"W
4124' MSL
5124' MSL
JET A, 100LL
RIVERSIDE (RAL)
SAN FRANCISCO
OAKLAND (ZOA)
4/17/25-5/15/25
KBIH VFR
7:56 AM PST
Clear
10sm
29°F
9°F
30.46"Hg
360° 4kts
AO2 SLP326 T10171128
METAR KBIH 091556Z AUTO 36004KT 10SM CLR M02/M13 A3046 RMK AO2 SLP326 T10171128
+ Add Your Business

KBIH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.025
760-872-2658

Terminal Area Forecast

KBIH
Fri, 1/9 3:21 AM PST
Fri, 1/9 4:00 AM PST - Sat, 1/10 4:00 AM PST
VFR
4:00 AM PST - 10:00 AM PST
Few 25,000'
6sm
330° 11kts
VFR
10:00 AM PST - 4:00 AM PST
Few 25,000'
6sm
350° 8kts
TAF KBIH 091121Z 0912/1012 33011KT P6SM FEW250
   FM091800 35008KT P6SM FEW250
KBIH
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1800Z
1/8/26
2200Z
!BIH 01/001 BIH NAV LOC TYPE DIRECTIONAL AID RWY 17 U/S 2601081800-2601082200
12/30/25
2330Z
2/1/26
0100Z
Runway!BIH 12/010 BIH RWY 17 PAPI U/S 2512302330-2602010100
7/24/25
1322Z
Runway!BIH 07/011 BIH RWY 12 PAPI UNUSABLE 2507241322-2601262111EST
12/15/22
2223Z
!BIH 12/002 BIH APRON RESTRICTED APN CLSD TO GA 2212152223-PERM
FDC
1/21/25
1919Z
!FDC 5/5360 BIH IAP BISHOP, BISHOP, CA.
LDA RWY 17, ORIG-D...
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI ANGLE 3.00/TCH 39).
2501211919-2701211919EST
No
0800-1700
CONDS NOT MNT BTN 1700-0800.
ADMIN OFC AT ARPT 760-872-2971. AFTER HRS EMERG: 760-937-4017.
INYO COUNTY
168 N EDWARDS, PO DRAWER Q
INDEPENDENCE, CA 93526
Phone: 760-878-0201
ASHLEY HELMS
703 AIRPORT ROAD
BISHOP, CA 93514
Phone: (760) 872-2971
RIVERSIDE FSS (RAL)
Toll Free: 1-800-WX-BRIEF
BIH
--
ACTVT REIL RWY 12, 30, 17, & 35; PAPI RWY 08, 26, 12, 30, 17, & 35; MIRL RWY 08/26, 12/30, & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance
Pilot Instruction

Runway 08/26

5567 ft. x 100 ft.
ASPH
Fair
NONE
MED
25 /F/A/W/T
40,000lbs
56,000lbs
98,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 22' 25"N 37° 22' 25"N
Longitude 118° 22' 27"W 118° 21' 18"W
Elevation 4,124' 4,100'
Threshold Crossing Height 30 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

7498 ft. x 100 ft.
ASPH
Excellent
PFC
MED

120,000lbs
235,000lbs
400,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 22' 49"N 37° 21' 56"N
Longitude 118° 22' 24"W 118° 21' 19"W
Elevation 4,123' 4,100'
Threshold Crossing Height 48 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3.52°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 17/35

5600 ft. x 100 ft.
ASPH
Good
PFC
MED
49 /F/B/W/T
100,000lbs
140,000lbs
240,000lbs
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 22' 51"N 37° 21' 55"N
Longitude 118° 21' 42"W 118° 21' 42"W
Elevation 4,112' 4,105'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway H1

40 ft. x 40 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 72°252°
Traffic Pattern
Markings
Markings Condition
Latitude 37° 22' 21"N N/A
Longitude 118° 22' 03"W N/A
Elevation 4,124' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

100 ft. x 100 ft.
ASPH
Fair
NONE


--
--
--
--
  Runway H2 Runway
True Heading 72°252°
Traffic Pattern
Markings
Markings Condition
Latitude 37° 22' 17"N N/A
Longitude 118° 22' 29"W N/A
Elevation 4,124' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11LEASED, CONSTRUCTED AND MAINTAINED BY INYO COUNTY. CITY OF LOS ANGELES IS UNDERLYING LAND OWNER - 300 MANDICH ST, BISHOP CA 93514
A110-10MAIN RAMP IS RSTRD TO PART 121; OTRS USE TSNT RAMP BY FUEL FARM.
A110-2NO INTXN DEPS; HEL TFC APCH ARPT FM THE WEST BOUNDARY.
A110-5RAMP FEES FOR COMM ACFT; MAY BE OFFSET WITH FUEL PURCHASE.
A110-6OVNGT TIE-DOWN FEE; ONE NIGHT MAY BE OFFSET WITH MIN FUEL PURCHASE.
A110-7FUEL DISCOUNTS FOR VOLUME PURCHASES.
A110-8NO LOCAL TAXI SERVICE; DIAL-A-RIDE AVBL, BUT LTD ON SUN.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC OAKLAND ARTCC AT 510-745-3380.
A14ASHLEY HELMS, DEPUTY PUBLIC WORKS DIRECTOR - AIRPORTS; AHELMS@INYOCOUNTY.US.
A17CONDS NOT MNT BTN 1700-0800.
A17 1ADMIN OFC AT ARPT 760-872-2971. AFTER HRS EMERG: 760-937-4017.
A32-12/30PVD SHOULDER 10' TO LGTS PLUS 15' TO EDGE.
A32-17/35PVD SHOULDER 10' TO LGTS PLUS 15' TO EDGE.
A39-12/30PCR VALUE: 590/F/B/X/T
A43-08PAPI UNUSBL BYD 5 NM.
A43-17PAPI UNUSBL BYD 5 NM.
A43-26PAPI UNUSBL BYD 2 NM.
A43-30PAPI UNUSBL BYD 4 NM.
A43-35PAPI UNUSBL BYD 5 NM.
A58-2610' DEEP DITCH 100' FROM THR.
A76HTTPS://BISHOPFLYING.CLUB/
A81-APTACTVT REIL RWY 12, 30, 17, & 35; PAPI RWY 08, 26, 12, 30, 17, & 35; MIRL RWY 08/26, 12/30, & 17/35 - CTAF.
BISHOP (ICAO: KBIH, IATA: BIH) is a public airport located in BISHOP, CA.
