KBIF
BIGGS AAF (FORT BLISS)
PrivatePVT

5 miles NE of FORT BLISS/EL PASO/, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 50' 58"N 106° 22' 48"W
3947' MSL
4947' MSL
08E
JET A+, CILI
ALBUQUERQUE (ABQ)
EL PASO
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KBIF VFR
12:55 AM MDT
Broken 8,000'
10sm
77°F
50°F
29.98"Hg
280° 10kts
AO2 SLP084 T02510098 $
KBIF 030655Z AUTO 28010KT 10SM BKN080 25/10 A2998 RMK AO2 SLP084 T02510098 $
+ Add Your Business

KBIF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Ground

GND/P
 121.6

Tower

LCL/P
 127.9

Other

OPS
BLISS RDO
 134.1
PTD
 126.2

FAA A/FD Pages

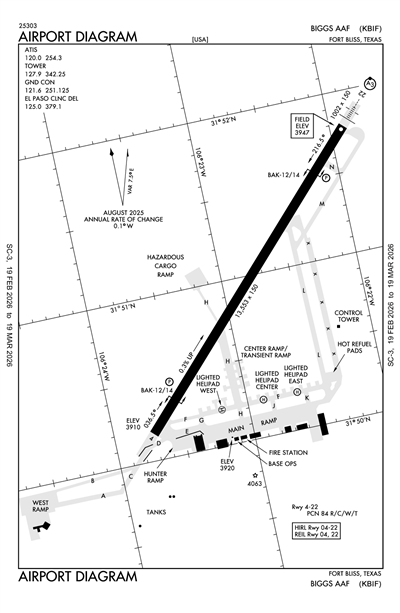

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBIF
Mon, 6/2 9:00 PM MDT
Mon, 6/2 9:00 PM MDT - Wed, 6/4 3:00 AM MDT
VFR
9:00 PM MDT - 1:00 AM MDT
Scattered 12,000'
6sm
29.94"Hg
280° 10kts
Gusts 25kts
Moderate, Clear Air, Occasional: up to 9,000'
Moderate, Clear Air, Occasional: 9,000 - 12,000'
VFR
Becoming 1:00 AM MDT - 8:00 AM MDT
Few 1,000'
6sm
30.00"Hg
270° 12kts
Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 12,000'
VFR
Becoming 8:00 AM MDT - 10:00 AM MDT
Sky Clear
6sm
30.03"Hg
280° 10kts
Gusts 20kts
Light Turbulence: 9,000 - 9,000'
Light Turbulence: 9,000 - 12,000'
VFR
Becoming 10:00 AM MDT - 7:00 PM MDT
Haze
Scattered 1,000'
5.59sm
30.00"Hg
280° 10kts
Gusts 25kts
Light Turbulence: 9,000 - 9,000'
Light Turbulence: 9,000 - 12,000'
VFR
Becoming 7:00 PM MDT - 12:00 AM MDT
Scattered 31,000'
6sm
29.91"Hg
260° 15kts
VFR
Becoming 12:00 AM MDT - 3:00 AM MDT
Few 28,000'
6sm
29.94"Hg
VRB° 6kts
TAF KBIF 030300Z 0303/0409 28010G25KT 9999 SCT120 520009 520903 QNH2994INS
   BECMG 0307/0308 27012KT 9999 FEW010 520009 520903 QNH2999INS
   BECMG 0314/0315 28010G20KT 9999 SKC 510009 510903 QNH3004INS
   BECMG 0316/0317 28010G25KT 9000 HZ SCT010 510009 510903 QNH3001INS
   BECMG 0401/0402 26015KT 9999 NSW SCT310 QNH2990INS
   BECMG 0406/0407 VRB06KT 9999 FEW280 QNH2994INS TX31/0310Z TN18/0312Z
KBIF
Military
5/21/251400Z !KBIF M0153/25 BIF RWY 04 BAK-12 ARST SYSTEM U/S BAK SYSTEM SCHEDULED MAINT. 2505211400-2505211800
5/21/251400Z !KBIF M0152/25 BIF RWY 04/22 CLSD BAK SYSTEM MAINT. PERSONNEL AND VEHICLES. 2505211400-2505211800
5/20/252031Z !KBIF M0163/25 BIF AD ABN U/S 2505202031-2506042031
5/20/251634Z M0162/25 NOTAMC M0159/25
5/20/251533Z !KBIF M0160/25 BIF NAV ILS RWY 22 U/S 2505201533-2508150600
5/20/250315Z !KBIF M0158/25 BIF TWY H LOCATION SIGN NOT LGTD 2505200315-2507042200
5/20/250314Z !KBIF M0157/25 BIF TWY H TWY DIRECTION SIGN NOT LGTD 2505200314-2507042200
5/20/250312Z !KBIF M0156/25 BIF TWY E TWY DIRECTION SIGN NOT LGTD 2505200312-2507042200
5/20/250306Z M0155/25 NOTAMC M0151/25
5/20/250306Z M0154/25 NOTAMC M0063/25
5/14/251453Z !KBIF M0144/25 BIF AD WINDCONE WILLIAM BEAUMONT LGT U/S OBSTRUCTION LIGHTS 2505141453-2506272200
5/12/251933Z !KBIF M0141/25 BIF AD WINDCONE RWY 04 LGT U/S AND OBSTRUCTION LGT UNSERVICEABLE. 2505121933-2506272200
5/10/251400Z !KBIF M0131/25 BIF APRON MAIN RAMP CONST AREA NE EDGE BARRICADED MEN AND EQUIPMENT SAT MON TUE WED THU FRI 1400-2200 2505101400-2505242200
4/23/251601Z !KBIF M0098/25 BIF SVC BASE OPS OPERATING HOURS NOW 0800-2359L, MON-SUN, CLSD FEDERAL HOLIDAYS. NO SVC REQUIRED. EXCEPTIONS TO OPERATING HOURS AVAIL FOR PRIORITY MISSIONS WITH PRIOR COORDINATION WITH AIRFIELD OPS SUPVR (915)744-9021/8088, DSN 621-9021//8088 TO ENSURE REQUESTED AIRCARFT SUPPORT SERVICES ARE AVAILABLE. 2504231601-2507211800
4/4/251938Z !KBIF M0081/25 BIF RWY 22 SEQUENCED FLG LGT U/S 2504041938-2507012200
4/4/251937Z !KBIF M0080/25 BIF RWY 22 ALS U/S 2504041937-2507012200
4/2/250449Z !KBIF M0079/25 BIF TWY B TWY DIRECTION SIGN NOT LGTD 2504020449-2506060600
3/24/251909Z !KBIF M0071/25 BIF APRON MAIN RAMP CLSD TAXI LANE 20 2503241909-2506190600
3/20/252156Z !KBIF M0060/25 BIF APRON MAIN RAMP CLSD TAXI LANE 21 2503202156-2506190600
3/19/252211Z !KBIF V0088/25 BIF AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RADAR ASR RWY 22, AMDT 8, RADAR INSTRUMENT APPROACH MINIMUMS RWY 22, MDA/HAT 4500/553, VISIBILITY 1, CAT A/B, MDA/HAT 4500/553, VISIBILITY 1 5/8, CAT C/D/E. 2503192211-2509052359
Yes
MON-SUN 1500-0700Z++
EXCP HOL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
N/A
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
SERVICE-LGT: WHEN UNATNDD ACTVT REIL RWY 04; PAPI RWY 04 & 22; HIRL RWY 04/22 - 127.9.
N/A
N/A
No
No
None
Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

13554 ft. x 150 ft.
CONC
Good
GRVD
HIGH
84 /R/C/W/T
--
--
--
--
  Runway 04 Runway 22
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 50' 10"N 31° 51' 47"N
Longitude 106° 23' 43"W 106° 21' 54"W
Elevation 3,910' 3,947'
Threshold Crossing Height 75 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights SSALR
Centerline Lights
Runway End Identifier Lights Yes No
A110-1RSTD: PPR ALL ACFT 24 HR PN CTC AIRFIELD OPS DSN 621-8811/8330, C915-744-8811/8330. TWR AND SVCS AVBL FOR ALL ACFT WITH PPR. PPR TIME VALID +/-1 HR. ALL ACFT CTC AFLD OPNS VIA PTD 30 MIN PRIOR TO ARR. FLT OPS AND TRAN ALERT SVC UNAVBL BFR 1 HR PRIOR TO PPR SKED ARR.
A110-12JASU: 4(A/M32A-86) 2(A/M32-95).
A110-13SERVICE: FUEL - A+, TRUCK REFUEL ONLY (ATLANTIC AVN, 1500-0700Z++ MON-SUN, C915-779-2831, 1 HR PN, AFTER HR CALL OUT FEE $100).
A110-14FLUID: SP.
A110-16MISC: APVL RQR FOR ACCESS TO RAMP.
A110-18MISC: HGR SPACE EXTREMELY LTD FOR TRAN ACFT.
A110-19TRAN ALERT - 1300-0700Z++ MON-FRI, 1500-0700Z++ SAT & SUN, EXC HOL.
A110-2TFC PAT: F/W 5000', TURBO PROP 5500', R/W 4500', JET 6000'.
A110-20MISC: KBIF AUTO OBSN AND BAAF USAF WX AVBL 24/7, DSN 621-1215/1214, C915-744-1215/1214. OT 25TH OWS, DAVIS-MONTHAN AFB, DSN 228-6598-6599. CLASS D AIRSPACE EFF 1500-0700Z++ MON-SUN, EXC HOL. OT CLASS E INTL GARBAGE CAP LTD. MUST BE BAGGED PRIOR TO ARR.
A110-22MISC: INTL GARBAGE CAP LTD. EXP DELAYS UNLESS PLACED IN GARBAGE BAGS PRIOR TO ARRIVAL.
A110-26COMMUNICATIONS: PMSV 373.7.
A110-27TWY L SOUTH OF TWY F DSGND FOR ROTARY WING ACFT ONLY.
A110-28SERVICES: NO DE-ICE AVBL, NO OFF AFLD TRNSP AVBL FOR AIRCREW, 24 HR NOTICE FOR LAV AND WATER SVCS, 915-525-7087.
A110-29CLOSED CIRCUIT TV OPNS, TSNT ACFT CIV-MIL INBD CTC AFLD OPNS VIA PTD AT 60 NM PRIOR TO LDG.
A110-30ACFT SVC/TRANS ALERT WILL NOT SUPPORT LCL, ROUND ROBIN OR OUT AND BACK FOR TRANS ACFT.
A110-31NO TWY EDGE LTS AT HOT REFUEL AREA.
A110-32WILLIAM BEAUMONT HOSPITAL HELIPAD PCL FREQ 126.2.
A110-6CAUTION: EL PASO INTL RWY 22, 2 NM SE CAN BE MISTAKEN FOR BIGGS AAF RWY 22. COYOTE HAZ.
A110-7NS ABTMT: VFR WEST ARR/DEP VIA MTN PASS 15 NM NW OF BIGGS AAF. AVOID VFR OVFT OF CITY. FLY 1500 FT AGL, 1500 FT HORIZONTAL DIST FM MTN DWELLINGS.
A110-8BEARING STRENGTH RWY 04/22: ST175 SBTT593 TRT585.
A110-9SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
BIGGS AAF (FORT BLISS) (ICAO: KBIF, IATA: BIF) is a private airport located in FORT BLISS/EL PASO/, TX.
