KBGM
GREATER BINGHAMTON/EDWIN A LINK FLD
PublicPUB

7 miles N of BINGHAMTON, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 12' 30"N 75° 58' 47"W
1636' MSL
2436' MSL
12W
JET A, 100LL
BUFFALO (BUF)
NEW YORK
NEW YORK (ZNY)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KBGM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.3

ATIS

ATIS
 128.15

Approach/Departure

APCH/P DEP/P
6000-8000 FT
 127.55
APCH/P DEP/P IC
SFC TO 5000 FT
 118.6

Clearance Delivery

CD/P
 125.05

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.3

Other

TRSA
SFC TO 5000 FT
 118.6
TRSA
6000-8000 FT
 127.55

FAA A/FD Pages

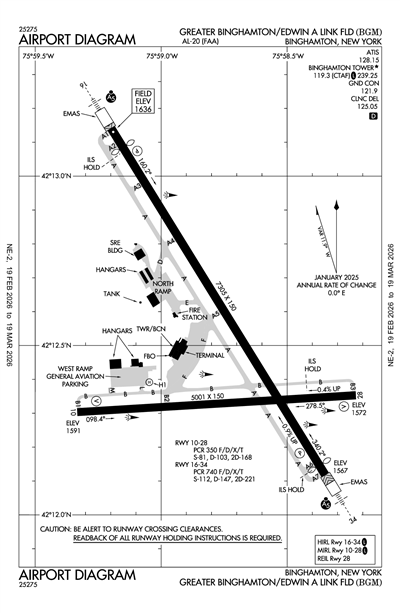

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KBGM
Domestic
1/15/251200Z !BGM 01/157 BGM OBST CRANE (ASN 2024-AEA-1784-NRA) 421228N0755859W (0.2NM WSW BGM) 1688FT (90FT AGL) FLAGGED AND LGTD WED THU FRI MON TUE 1200-2200 2501151200-2502072200
1/15/251200Z !BGM 01/156 BGM OBST CRANE (ASN 2024-AEA-1783-NRA) 421226N0755854W (0.1NM SW BGM) 1685FT (90FT AGL) FLAGGED AND LGTD WED THU FRI MON TUE 1200-2200 2501151200-2502072200
1/15/251200Z !BGM 01/155 BGM OBST CRANE(ASN 2024-AEA-1782-NRA) 421232N0755856W (0.1NM WNW BGM) 1694FT (90FT AGL) FLAGGED AND LGTD WED THU FRI MON TUE 1200-2200 2501151200-2502072200
1/15/251200Z !BGM 01/154 BGM OBST CRANE (ASN 2024-AEA-1781-NRA) 421231N0755852W (0.1NM W BGM) 1689FT (90FT AGL) FLAGGED AND LGTD WED THU FRI MON TUE 1200-2200 2501151200-2502072200
1/15/251044Z !BGM 01/181 BGM RWY 34 FICON 2/2/2 100 PCT 1IN DRY SN OBS AT 2501151044. 2501151044-2501161044
1/15/251042Z !BGM 01/180 BGM TWY ALL FICON 1IN DRY SN OVER COMPACTED SN BA MEDIUM TO POOR OBS AT 2501151042. 2501151042-2501161042
1/15/251041Z !BGM 01/179 BGM APRON ALL FICON 1IN DRY SN OVER COMPACTED SN BA MEDIUM TO POOR OBS AT 2501151041. 2501151041-2501161041
1/15/250000Z !BGM 01/173 BGM TWY B3, TWY B BTN RWY 16/34 AND TWY B3 CLSD 2501150000-2501162300
1/15/250000Z !BGM 01/172 BGM TWY B1, B2, B3 CLSD 2501150000-2501162300
1/14/252237Z !BGM 01/167 BGM RWY 10/28 CLSD EXC XNG 2501142237-2501152300EST
12/27/240556Z !BGM 12/282 BGM RWY 28 RWY END ID LGT U/S 2412270556-2505192000EST
12/17/241616Z !BGM 12/165 BGM SVC AUTOMATED WX BCST SYSTEM CHANGED TO 607-200-3489 2412171616-PERM
FDC
5/1/241732Z !FDC 4/7371 BGM IAP GREATER BINGHAMTON/EDWIN A LINK FLD, BINGHAMTON, NY.
ILS OR LOC RWY 34, AMDT 5...
CHART NOTE: AUTO PILOT COUPLED APPROACH NA BELOW 1850 MSL..
2405011732-2605011732EST
7/6/231354Z !FDC 3/2172 BGM IAP GREATER BINGHAMTON/EDWIN A LINK FLD, BINGHAMTON, NY.
RNAV (GPS) RWY 34, AMDT 1A...
TAA RIGHT BASE 30 NM TO ZUNGA, 160/30 CW 250/30 MINIMUM ALTITUDE 4600.
2307061354-2507061353EST
Yes
ALL
FBO SVCS AVBL 0500-2000 SUN-SAT. AFT HRS FBO SVCS CTC 607-763-4474.
BROOME COUNTY
2534 AIRPORT ROAD #16
JOHNSON CITY, NY 13790
Phone: 607-763-4471
MARK HEEFNER
2534 AIRPORT ROAD, #16
JOHNSON CITY, NY 13790
Phone: 607-763-4471
BUFFALO FSS (BUF)
Toll Free: 1-800-WX-BRIEF
BGM
--
WHEN ATCT CLSD ACTVT MALSR RWY 16 & 34; HIRL RWY 16/34; MIRL RWY 10/28; TWY LGTS - CTAF.
DUSK-DAWN.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
High & Low Pressure
None
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10/28

5001 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

81,000lbs
103,000lbs
168,000lbs
--
  Runway 10 Runway 28
True Heading 86°266°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 12' 18"N 42° 12' 21"N
Longitude 75° 59' 20"W 75° 58' 14"W
Elevation 1,591' 1,572'
Threshold Crossing Height 53 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes

Runway 16/34

7305 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

112,000lbs
147,000lbs
221,000lbs
--
  Runway 16 Runway 34
True Heading 148°328°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 13' 08"N 42° 12' 07"N
Longitude 75° 59' 12"W 75° 58' 21"W
Elevation 1,636' 1,567'
Threshold Crossing Height 61 ft. AGL 64 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway H1

54 ft. x 54 ft.
ASPH
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 100°280°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 42° 12' 23"N N/A
Longitude 75° 59' 03"W N/A
Elevation 1,591' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ATCT UNABLE TO SEE HARD SFC S OF FBO HANGAR.
A110-2EXTSV GLDR ACT 10 NM SW OF ARPT.
A110-4BIRD ACT ON & INVOF ARPT.
A110-5LGTD STRUCTURE 118 FT AGL 2000 FT S OF AER 10.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC NEW YORK ARTCC AT 631-468-1425.
GREATER BINGHAMTON/EDWIN A LINK FLD (ICAO: KBGM, IATA: BGM) is a public airport located in BINGHAMTON, NY.
