iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBFM
MOBILE INTL
PublicPUB

3 miles S of MOBILE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 37' 36"N 88° 04' 05"W
26' MSL
1026' MSL
01W
JET A, 100LL
ANNISTON (ANB)
NEW ORLEANS
HOUSTON (ZHU)
4/17/25-5/15/25
KBFM VFR
7:53 AM CDT
Clear
10sm
63°F
55°F
30.07"Hg
340° 5kts
AO2 SLP182 T01720128
METAR KBFM 141253Z 34005KT 10SM CLR 17/13 A3007 RMK AO2 SLP182 T01720128
+ Add Your Business

KBFM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.8

ATIS

ATIS
 135.575

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 118.8

Other

NG OPS
FM
 49.85
NG OPS
 125.525

FAA A/FD Pages

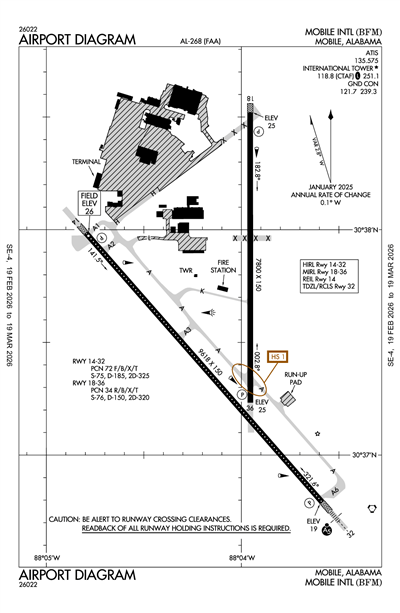

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KBFM
Tue, 10/14 6:20 AM CDT
Tue, 10/14 7:00 AM CDT - Wed, 10/15 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
310° 3kts
VFR
10:00 AM CDT - 5:00 PM CDT
Sky Clear
6sm
360° 9kts
Gusts 15kts
VFR
5:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
360° 4kts
TAF KBFM 141120Z 1412/1512 31003KT P6SM SKC
   FM141500 36009G15KT P6SM SKC
   FM142200 36004KT P6SM SKC
KBFM
EffectiveExpiresCategoryNOTAM
Domestic
10/7/25
1733Z
10/17/25
2200Z
!BFM 10/008 BFM OBST RIG (ASN UNKNOWN) 303756N0880457W (.83NM NW BFM)
UNKNOWN (52FT AGL) FLAGGED 2510071733-2510172200
10/1/25
2206Z
1/29/26
2206Z
!BFM 10/001 BFM OBST TOWER LGT (ASR 1032993) 304230.60N0880247.90W (5.0NM NNE BFM) 274.9FT (262.8FT AGL) U/S 2510012206-2601292206
9/24/25
1425Z
1/16/26
2359Z
!BFM 09/057 BFM OBST TOWER LGT (ASR 1036419) 303934.00N0875333.00W (9.4NM ENE BFM) 712.3FT (545.3FT AGL) U/S 2509241425-2601162359
7/31/25
1654Z
12/31/25
0001Z
!BFM 07/046 BFM OBST CRANE (ASN UNKNOWN) 304029N0880217W (3.26NM NE BFM)
UNKNOWN (150FT AGL) NOT LGTD 2507311654-2512310001
4/11/25
1030Z
11/7/25
2330Z
!BFM 04/027 BFM OBST RIG (ASN 2025-ASO-4494-NRA) 303802N0880411W (0.4NM N BFM) 46FT (20FT AGL) FLAGGED AND LGTD 2504111030-2511072330
4/11/25
1030Z
11/7/25
2330Z
!BFM 04/026 BFM OBST RIG (ASN 2025-ASO-4493-NRA) 303802N0880405W (0.4NM NE BFM) 46FT (20FT AGL) FLAGGED AND LGTD 2504111030-2511072330
4/11/25
1030Z
11/7/25
2330Z
!BFM 04/025 BFM OBST RIG (ASN 2025-ASO-4492-NRA) 303807N0880405W (0.5NM NE BFM) 46FT (20FT AGL) FLAGGED AND LGTD 2504111030-2511072330
4/11/25
1030Z
11/7/25
2330Z
!BFM 04/024 BFM OBST RIG (ASN 2025-ASO-4491-NRA) 303807N0880411W (0.5NM N BFM) 46FT (20FT AGL) FLAGGED AND LGTD 2504111030-2511072330
12/27/24
1809Z
12/31/25
2359Z
Runway!BFM 12/022 BFM RWY 14/32 RCLL NOT STD 2412271809-2512312359
10/31/24
1453Z
12/31/25
2300Z
!BFM 10/040 BFM TWY A6 LEAD ON LINE FOR RWY 32 NOT STD 2410311453-2512312300
10/31/24
1446Z
12/31/25
2300Z
!BFM 10/039 BFM TWY A EDGE MARKINGS BTN TWY L AND TWY K EAST SIDE NOT STD 2410311446-2512312300
FDC
9/18/25
1644Z
4/30/26
1644Z
!FDC 5/6970 BFM IAP MOBILE INTL, MOBILE, AL.
VOR RWY 32, AMDT 11D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SJI VORTAC OUT OF SERVICE. 2509181644-2604301644EST
9/18/25
1644Z
4/30/26
1644Z
!FDC 5/6967 BFM IAP MOBILE INTL, MOBILE, AL.
VOR RWY 14, AMDT 9A...
VOR RWY 18, AMDT 2B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SJI VORTAC OUT OF SERVICE. 2509181644-2604301644EST
9/18/25
1644Z
4/30/26
1644Z
!FDC 5/6966 BFM IAP MOBILE INTL, MOBILE, AL.
ILS OR LOC RWY 32, AMDT 4A...
MISSED APPROACH: CLIMB TO 800 THEN CLIMBING RIGHT TURN TO 2000 ON HEADING 060 AND ON BFM VORTAC R-031 TO STETS INT/BFM 28.21 DME AND HOLD,
SJI VORTAC OUT OF SERVICE. 2509181644-2604301644EST
8/29/25
1108Z
!FDC 5/5340 BFM IAP MOBILE INTL, MOBILE, AL.
RNAV (GPS) RWY 14, AMDT 3A...
LNAV/VNAV DA 527/HAT 501 ALL CATS, VIS 1 3/8 ALL CATS. LNAV MDA 620/HAT 594 ALL CATS, VIS CATS C/D 1 3/4. VDP 1.6 NM TO RW14. TEMPORARY CRANES UP TO 316 MSL BEGINNING 3024FT NE OF RWY 14 (2023-ASO-8003-THRU-8014-NRA). TEMPORARY CRANES 316 MSL BEGINNING 3475FT NE OF RWY 14 (2023-ASO-7494-THRU-7498-NRA). TEMPORARY CRANES 227 MSL BEGINNING 1781FT NORTH OF RWY 14 (2023-ASO-11889 THRU 11899-NRA). TEMPORARY CRANES 200 MSL BEGINNING 2131FT NE OF RWY 14 (2023-ASO-7912 THRU 7919-NRA). TEMPORARY CRANES 186 MSL BEGINNING 1790FT E OF RWY 14 (2023-ASO-7669 THRU 7672-NRA). TEMPORARY CRANES 198 MSL BEGINNING 2215FT N OF RWY 14 (2024-ASO-3597 THRU 3600-NRA).
2508291108-2510251108EST
8/28/25
1706Z
!FDC 5/5152 BFM IAP MOBILE INTL, MOBILE, AL.
RNAV (GPS) RWY 18, AMDT 3A...
LPV DA 427/HAT 401 ALL CATS, VIS 1 1/8 ALL CATS. LNAV/VNAV DA 527/HAT 501 ALL CATS, VIS 1 3/8 ALL CATS. LNAV MDA 620/HAT 594 ALL CATS, VIS CATS C/D 1 3/4. VDP: 1.65 NM TO RW18. TEMPORARY CRANE 316 MSL BEGINNING 932FT SW OF RWY 18 (2023-ASO-7494-THRU-7498-NRA). TEMPORARY CRANES, 227 MSL, BEGINNING 4072FT WEST OF RWY 18 (2023-ASO-11889 THRU 11899-NRA). TEMPORARY CRANES 200 MSL BEGINNING 2639FT SW OF RWY 18 (2023-ASO-7912 THRU 7919-NRA).
2508281706-2511181706EST
8/14/25
1525Z
!FDC 5/7722 BFM IAP MOBILE INTL, MOBILE, AL.
VOR RWY 14, AMDT 9A...
HUTIT DME FIX MINIMUMS: S-14 MDA 620/HAT 594 ALL CATS, VIS CATS C/D 1 3/4. TEMPORARY CRANE 316 MSL BEGINNING 3475FT NE OF RWY 14 (2023-ASO-7494 THRU 7498-NRA).
2508141525-2603262355EST
Yes
0700-2300
MOBILE AIRPORT AUTHORITY
1891-9TH ST/BROOKLEY COMPLEX
MOBILE, AL 36615
Phone: 251-438-7334
CHRIS CURRY
P O BOX 88004
MOBILE, AL 36608
Phone: 251-639-4680
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
BFM
--
DUSK-DAWN. WHEN ATCT CLSD ACTVT MALSR RWY 32 - CTAF. HIRL RWY 14/32 PRESET ON STEP 3 OR HYR BASED ON WX.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 14/32

9618 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
72 /F/B/X/T
75,000lbs
185,000lbs
325,000lbs
--
  Runway 14 Runway 32
True Heading 139°319°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 37' 59"N 30° 36' 48"N
Longitude 88° 04' 48"W 88° 03' 35"W
Elevation 26' 19'
Threshold Crossing Height 68 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 18/36

7800 ft. x 150 ft.
ASPH CONC
Fair
NONE
MED
34 /R/B/X/T
76,000lbs
150,000lbs
320,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 38' 31"N 30° 37' 14"N
Longitude 88° 03' 57"W 88° 03' 57"W
Elevation 25' 25'
Threshold Crossing Height 64 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CONDS NOT MNT WHEN ATCT CLSD.
A110-2HOT CARGO SPACE ASGND TO TWY A BTN RWY 18/36 AND A6
A110-3FOR CD WHEN ATCT CLSD CTC MOBILE APCH AT 251-662-6236. WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A110-4ARPT MNTN ARFF INDEX B. INDEX C AVBL UPON REQ.
MOBILE INTL (ICAO: KBFM, IATA: BFM) is a public airport located in MOBILE, AL.
