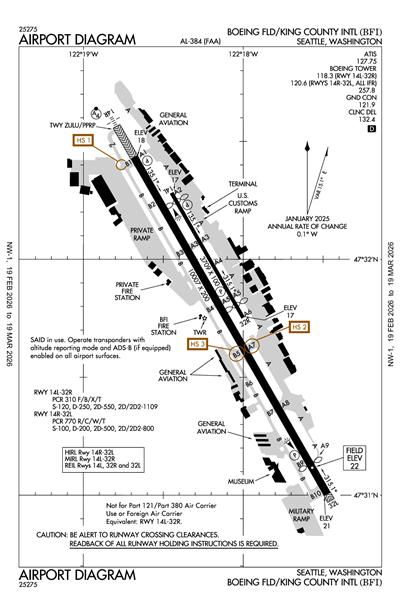

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBFI
BOEING FLD/KING COUNTY INTL
PublicPUB

4 miles S of SEATTLE, WA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 31' 48"N 122° 18' 07"W
22' MSL
1022' MSL
15E
JET A, 100LL
SEATTLE (SEA)
SEATTLE
SEATTLE (ZSE)
4/17/25-5/15/25
KBFI VFR
11:53 PM PDT
Clear
10sm
59°F
43°F
30.24"Hg
Calm
AO2 SLP241 T01500061
KBFI 030653Z 00000KT 10SM CLR 15/06 A3024 RMK AO2 SLP241 T01500061
+ Add Your Business

KBFI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
206-767-4113
 127.75

Clearance Delivery

CD/P
 132.4

Ground

GND/P
 121.9

Tower

LCL/P
RWY 14L/32R
 118.3
LCL/P
RWY 14R/32L & ALL IFR
 120.6

Terminal Area Forecast

KBFI
Mon, 6/2 10:20 PM PDT
Mon, 6/2 11:00 PM PDT - Tue, 6/3 11:00 PM PDT
VFR
11:00 PM PDT - 8:00 AM PDT
Scattered 20,000'
6sm
VRB° 3kts
VFR
8:00 AM PDT - 2:00 PM PDT
Few 20,000'
6sm
290° 5kts
VFR
2:00 PM PDT - 11:00 PM PDT
Scattered 20,000'
Few 7,000'
6sm
310° 8kts
KBFI 030520Z 0306/0406 VRB03KT P6SM SCT200
   FM031500 29005KT P6SM FEW200
   FM032100 31008KT P6SM FEW070 SCT200
KBFI
Domestic
5/28/250315Z !BFI 05/083 BFI RWY 14R/32L CLSD WED-FRI 0315-1045 2505280315-2505301045
5/25/250130Z !BFI 05/074 BFI AIRSPACE SEE FDC 5/3105 ZSE 99.7 SECURITY 2505250130-2505250630
5/24/250300Z !BFI 05/072 BFI TWY A7 CLSD 2505240300-2505241215
5/23/250315Z !BFI 05/082 BFI RWY 14R/32L CLSD 2505230315-2505231045
5/23/250300Z !BFI 05/061 BFI NAV ILS RWY 14R U/S 2505230300-2505231215
5/22/250315Z !BFI 05/066 BFI NAV ILS RWY 14R U/S 2505220315-2505221045
5/21/250839Z !BFI 05/084 BFI NAV ILS RWY 14R U/S 2505210839-2505211100
5/21/250315Z !BFI 05/071 BFI TWY A7 CLSD WED-FRI 0315-1045 2505210315-2505231045
5/21/250315Z !BFI 05/069 BFI RWY 14R/32L CLSD 2505210315-2505211045
5/20/251400Z !BFI 05/073 BFI TWY B BTN TWY B1 AND TWY B3 CLSD TO ACFT WINGSPAN MORE THAN 118FT EXC 1HR PPR 206-296-7334 TUE WED THU FRI MON 1400-0130 2505201400-2506060130
5/16/251111Z !BFI 05/062 BFI TWY A BTN SIGNATURE RAMP AND TWY A1 RUNUP PAD FOR RWY 14R WEST SIDE IRREGULAR SFC 2505161111-2505312359
5/13/251330Z !BFI 05/050 BFI TWY B BTN TWY B6 AND TWY B7 CLSD TO ACFT WINGSPAN MORE THAN 118FT EXC 1HR PPR 206-296-7334 TUE WED THU FRI MON 1330-0130 2505131330-2505220130
5/9/251042Z !BFI 05/043 BFI RWY 14R/32L E SIDE IRREGULAR SFC 2505091042-2505232359
5/7/251338Z !BFI 05/037 BFI NAV ILS RWY 32L U/S 2505071338-2505292355
5/5/252230Z !BFI 05/024 BFI RWY 32L RWY END ID LGT NOT STD 2505052230-2505292359
5/3/251741Z !BFI 05/017 BFI OBST BLDG (ASN 2025-ANM-2-NRA) 473226N1221853W (0.8NM NW BFI) 32FT (22FT AGL) ERECTED 2505031741-PERM
5/3/250300Z !BFI 04/112 BFI RWY 14R/32L CLSD SAT 0300-1215 2505030300-2511011215
4/17/251624Z !BFI 04/066 BFI TWY B BTN BOEING COMMERCIAL RAMP NORTH ACCESS AND BOEING COMMERCIAL RAMP SOUTH ACCESS WIP STEEL PLATES ADJ WEST SHOULDER LGTD AND BARRICADED 2504171624-2508312359
4/16/251230Z !BFI 04/059 BFI TWY A CL MARKINGS BTN TWY A1 AND TWY A5 NOT STD 2504161230-2510312359
4/11/251331Z !BFI 04/039 BFI TWY A7 ELEVATED RWY GUARD LGT AT RWY 14L/32R U/S 2504111331-2507312359
4/4/251232Z !BFI 04/018 BFI TWY A7 ELEVATED RWY GUARD LGT BTN RWY 14L/32R AND TWY A U/S 2504041232-2507312359
4/4/251228Z !BFI 04/016 BFI TWY A1 SFC PAINTED HLDG PSN SIGNS FOR APCH END RWY 14R NOT STD 2504041228-2509302359
4/2/250341Z !BFI 04/008 BFI TWY A7 HLDG PSN SIGN BTN TWY A AND RWY 14L/32R LGT U/S 2504020341-2507312359
3/28/250610Z !BFI 03/143 BFI TWY A BTN TWY A2 AND TWY A5 WIP OPN EXCAVATION ADJ WEST SIDE LGTD AND BARRICADED 2503280610-2510312359
3/27/251127Z !BFI 03/142 BFI OBST POLE LGT (ASN 2018-ANM-6999-OE) 473306N1221857W (1.4NM NNW BFI) 162FT (80FT AGL) U/S 2503271127-2506271730
3/19/252051Z !BFI 03/097 BFI TWY A BTN TWY A5 AND TWY A2 CLSD TO ACFT WINGSPAN MORE THAN 100FT EXC 2HR PPR 206-296-7334 2503192051-2510312359
3/19/250228Z !BFI 03/093 BFI TWY A EDGE LGT BTN TWY A2 AND TWY A5 U/S 2503190228-2507142359
3/17/251730Z !BFI 03/080 BFI OBST RIG (ASN 2023-ANM-4860-NRA) 473209N1221816W (0.4NM NNW BFI) 57FT (30FT AGL) FLAGGED AND LGTD 2503171730-2507142359
3/17/251525Z !BFI 03/074 BFI TWY A2 BTN TWY A AND RWY 14R/32L, TWY A3 BTN TWY A AND RWY 14L/32R, TWY A4 BTN TWY A AND RWY 14R/32L, TWY A5 BTN TWY A AND RWY 14L/32R, TWY A8 BTN TWY A AND RWY 14R/32L CLSD 2503171525-2511011400
3/17/251400Z !BFI 03/045 BFI TWY A BTN TWY A5 AND TWY A3 WIP HVY EQPT ADJ WEST SIDE 2503171400-2510312359
3/17/251400Z !BFI 03/023 BFI RWY 14L/32R CLSD 2503171400-2510312359
12/10/241752Z !BFI 12/015 BFI TWY B1 SFC PAINTED HLDG PSN SIGNS BTN APCH END RWY 14R AND TWY B NOT STD 2412101752-2508312359
FDC
12/20/241235Z !FDC 4/9267 BFI ODP BOEING FLD/KING COUNTY INTL, SEATTLE, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
TAKEOFF MINIMUMS: RWY 14L, 600-2 3/4 WITH A MINIMUM CLIMB OF 320 FT PER NM TO 600 OR STANDARD WITH A MINIMUM CLIMB OF 708 FT PER NM TO 600 OR 1000-3 FOR VCOA. ALL OTHER DATA REMAINS AS PUBLISHED. 2412201235-2612201235EST
Yes
ALL
KING COUNTY
516 THIRD AVE
SEATTLE, WA 98104
Phone: (206) 296-7380
JOHN PARROTT, AAE
7277 PERIMETER ROAD SOUTH
SEATTLE, WA 98108-3844
Phone: 206-296-7334
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
BFI
--
HIRL RY 14R/32L OPEN DUSK-DAWN. MIRL RY 14L/32R NOT OPER 0600-1500Z++.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 14L/32R

3709 ft. x 100 ft.
ASPH
Fair
GRVD
MED

120,000lbs
250,000lbs
550,000lbs
1,109,000lbs
  Runway 14L Runway 32R
True Heading 150°330°
Traffic Pattern Left Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 32' 17"N 47° 31' 45"N
Longitude 122° 18' 27"W 122° 18' 00"W
Elevation 17' 17'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14R/32L

10007 ft. x 200 ft.
ASPH
Good
GRVD
HIGH

100,000lbs
200,000lbs
500,000lbs
800,000lbs
  Runway 14R Runway 32L
True Heading 150°330°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 32' 26"N 47° 31' 00"N
Longitude 122° 18' 41"W 122° 17' 28"W
Elevation 18' 21'
Threshold Crossing Height 55 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3.1°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-10GA ITNRNT/TSNT PRKG AVBL. CTC ARPT OPS 206-296-7334.
A110-11TWR 80 FT AGL LCTD 1200 FT N AND 900 FT W OF THLD RY 14R.
A110-13FOR NOISE ABATEMENT PROCEDURES, CONTACT NOISE OFFICE AT (206) 296-7334.
A110-14EXTENSIVE HELICOPTER TRAINING ACTIVITY ON TAXIWAY B.
A110-15FOR MUSEUM OF FLT TSNT ACFT PRKG, PPR, CALL MUSEUM OF FLT SCTY (206) 920-9770.
A110-16TAXIWAY ZULU AND 880' SPECIAL USE PAVEMENT AVAILABLE 72 HOURS PRIOR PERMISSION REQUIRED. CONTACT AIRPORT OPERATIONS 206-296-7334.
A110-2TPA RWY 14L/32R 1000 MSL; RWY 14R/32L 800 MSL.
A110-22EMERG FREQ 121.5 NOT MNT AT TWR.
A110-23FOR BOEING MILITARY FLIGHT CENTER RAMP PERMISSION, CTC RAMP COORDINATOR 206-225-0989, 72 HOUR PRIOR PERMISSION REQUIRED, 96 HOUR PRIOR PERMISSION REQUIRED IF ORDNANCES/MUNITIONS INSTALLED OR IF ORDNANCES/MUNITIONS STORAGE IS REQUIRED. LIMITED LOX SERVICE MEETING MIL-PRF-27210J, TYPE II AVAILABLE FOR MILITARY FLIGHT CENTER TRANSIENT AIRCRAFT, CONTACT 96 HOURS PRIOR WITH NEEDED VOLUME AND AIRCRAFT TYPE. PRIOR TO ARRIVAL ONTO BOEING COMMERCIAL AIRPLANE RAMP, CTC BOEING SEATTLE AT 123.425 OR CALL 206-662-4500. ADVANCED PERMISSION TO ACCESS BOEING COMMERCIAL AIRPLANE RAMP ONLY, CTC 206-544-5900 M-F 1600Z-0000Z.
A110-25FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4722.
A110-26VFR PILOTS SHLD REVIEW & EXPC VFR PROCS PRIOR TO ARR/DEP.
A110-3TOUCH AND GO LNDGS PROHIBITED 2200-0700.
A110-5BIRD FLOCKS WITHIN ARPT VICINITY. - CHECK LOCAL ADVISORIES.
A110-6FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-714' ANT (MKD/LGTD) 230' FM RY 14L END 125' R.
A110-8TWY A1 & TWY A FROM A1-A3 RSTRD TO ACFT UP TO 150000 LBS AND LESS THAN 108 FT WINGSPAN.
A110-9TWYS A2; B2; & A11 RSTD TO ACFT UP TO 60000 LBS. TWYS A3; A5; & A8 RSTD TO ACFT UP TO 12500 LBS.
BOEING FLD/KING COUNTY INTL (ICAO: KBFI, IATA: BFI) is a public airport located in SEATTLE, WA.
