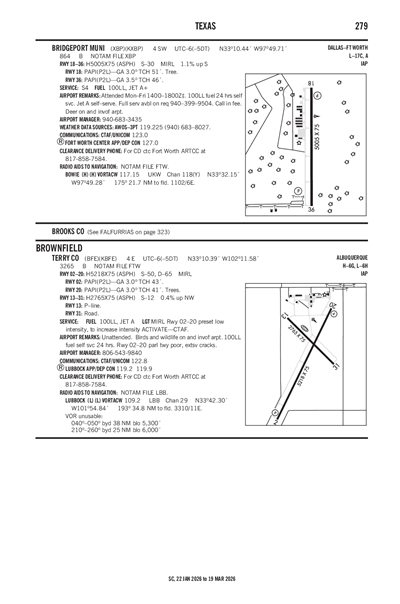

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBFE
TERRY COUNTY
PublicPUB

4 miles E of BROWNFIELD, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 10' 23"N 102° 11' 34"W
3265' MSL
4265' MSL
09E
JET A, 100LL
FORT WORTH (FTW)
ALBUQUERQUE
FORT WORTH (ZFW)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KBFE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KBFE
Domestic
1/13/252129Z !FTW 01/460 BFE OBST TOWER LGT (ASR 1024005) 331331.30N1021656.70W (5.5NM NW BFE) 3737.9FT (396.0FT AGL) U/S 2501132129-2505132129
FDC
10/24/231531Z !FDC 3/0115 BFE ODP TERRY COUNTY, BROWNFIELD, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 2, SIGN 21 FT FROM DER, 165 FT LEFT OF CENTERLINE, 3266 FT MSL.
WIND INDICATOR 326 FT FROM DER, 362 FT LEFT OF CENTERLINE, 3276 FT MSL.
POLE, TANK BEGINNING 471 FT FROM DER, 445 FT LEFT OF CENTERLINE, UP TO 3296 FT MSL.
POLES, BUILDING BEGINNING 564 FT FROM DER, 425 FT LEFT OF CENTERLINE, UP TO 3297 FT MSL.
TREES, POLE BEGINNING 866 FT FROM DER, 161 FT RIGHT OF CENTERLINE, UP TO 37 FT AGL/3293 FT MSL.
RWY 31, POLE 1043 FT FROM DER, 706 FT RIGHT OF CENTERLINE, 3304 FT MSL.
TREE 1972 FT FROM DER, 168 FT RIGHT OF CENTERLINE, 3314 FT MSL. ALL OTHER DATA REMAINS AS PUBLISHED. 2310241531-2510241531EST
No
UNATNDD
TERRY COUNTY
TERRY CO COURTHOUSE, 500 W. MAIN
BROWNFIELD, TX 79316
Phone: 806-637-3797
BRAD TANKERSLEY
P.O. BOX 205
BROWNFIELD, TX 79316
Phone: (806) 543-9840
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
--
MIRL RWY 02/20 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 02/20

5218 ft. x 75 ft.
ASPH
Good
NONE
MED

50,000lbs
65,000lbs
--
--
  Runway 02 Runway 20
True Heading 26°206°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 09' 57"N 33° 10' 43"N
Longitude 102° 11' 49"W 102° 11' 22"W
Elevation 3,253' 3,264'
Threshold Crossing Height 43 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

2765 ft. x 75 ft.
ASPH
Good
NONE


12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 10' 39"N 33° 10' 20"N
Longitude 102° 11' 44"W 102° 11' 21"W
Elevation 3,262' 3,250'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2BIRDS & WILDLIFE ON AND INVOF ARPT.
A110-3RWY 02/20 PARL TWY POOR, EXTSV CRACKS.
TERRY COUNTY (ICAO: KBFE, IATA: BFE) is a public airport located in BROWNFIELD, TX.
