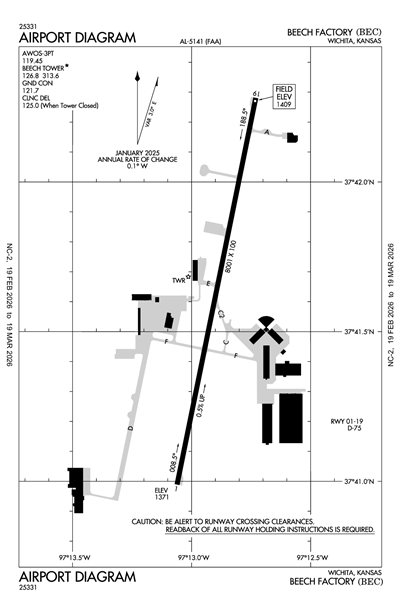

BEECH FACTORY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBEC
ICAO KBECIATA BECLocal BEC
BEECH FACTORY
PublicPUB

5 miles E of WICHITA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 41' 38"N 97° 12' 54"W
Elevation
1409' MSL
Pattern Alt
2409' MSL
Mag Variation
3°E
Declination
4°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KBEC LIFR
7:55 PM CST
Mist
Overcast 300'
2.5sm
44°F
44°F
30.07"Hg
360° 10kts
AO2 T00680068
METAR KBEC 040155Z AUTO 36010KT 2 1/2SM BR OVC003 07/07 A3007 RMK AO2 T00680068
+ Add Your Business

KBEC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.45
(316) 515-7116

Common

CTAF 126.8
WHEN ATCT CLSD ACTVT REIL RWY 01 AND 19; MIRL RWY 01/19 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 125.0
WHEN TWR CLSD

Ground

BEECH GROUND 121.7
0700-1730 MON-FRI

Tower

BEECH TOWER 126.8
0700-1730 MON-FRI

Approach

WICHITA APPROACH 134.8

Departure

WICHITA DEPARTURE 134.8

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KIAB (5nm)
Tue, 3/3 1:10 PM CST
Tue, 3/3 1:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
Temporary 12:00 PM CST - 6:00 PM CST
Mist
Overcast 200'
0.99sm
Calm
IFR
1:00 PM CST - 2:00 AM CST
Mist
Overcast 600'
3.73sm
29.91"Hg
010° 7kts
Light Turbulence: 1,000 - 4,000'
IFR
Becoming 2:00 AM CST - 9:00 AM CST
Light Showers and Rain and Thunderstorm in vicinity
Overcast 2,000'
Broken 700'
4.97sm
30.06"Hg
030° 12kts
Moderate, Clear Air, Occasional: 3,000 - 5,000'
LIFR
Temporary 4:00 AM CST - 9:00 AM CST
Thunderstorm and Rain
Overcast 1,500'
Broken 400'
2.98sm
VRB° 20kts
Gusts 30kts
IFR
Becoming 9:00 AM CST - 11:00 AM CST
Showers in vicinity
Overcast 1,500'
Broken 700'
Scattered 400'
6sm
30.09"Hg
360° 9kts
Light Turbulence: 2,000 - 5,000'
MVFR
Becoming 11:00 AM CST - 6:00 PM CST
Broken 1,200'
6sm
29.97"Hg
340° 9kts
Light Turbulence: 2,000 - 5,000'
TAF AMD KIAB 031910Z 0319/0424 01007KT 6000 BR OVC006 510103 QNH2992INS
   TEMPO 0318/0324 1600 BR OVC002
   BECMG 0408/0409 03012KT 8000 -SHRA VCTS BKN007 OVC020CB 520302 QNH3007INS
   TEMPO 0410/0415 VRB20G30KT 4800 TSRA BKN004 OVC015CB
   BECMG 0415/0416 36009KT 9999 VCSH SCT004 BKN007 OVC015 510203 QNH3010INS
   BECMG 0417/0418 34009KT 9999 NSW BKN012 510203 QNH2998INS TX10/0321Z TN07/0312Z
KBEC
EffectiveExpiresCategoryNOTAM
Domestic
12/29/25
2006Z
3/29/26
2359Z
!ICT 12/452 BEC OBST TOWER LGT (ASR 1257808) 374033.90N0971340.00W (1.2NM SSW BEC) 1505.2FT (160.1FT AGL) U/S 2512292006-2603292359
Yes
MON-FRI 0700-1730
BEECHCRAFT AIRCRAFT COMPANY
10511 E. CENTRAL
WICHITA, KS 67201
Phone: 316-515-5300
TODD BAYLESS
10511 E. CENTRAL
WICHITA, KS 67201
Phone: 316-515-8365
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
WHEN ATCT CLSD ACTVT REIL RWY 01 AND 19; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 01/19

8001 ft. x 100 ft.
CONC
Good
NONE
MED

--
75,000lbs
--
--
  Runway 01 Runway 19
True Heading 11°191°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 40' 59"N 37° 42' 17"N
Longitude 97° 13' 04"W 97° 12' 44"W
Elevation 1,371' 1,409'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ARR & DEP ACFT MAINTAIN 2200 FT MSL WITHIN 5 MILES OF FIELD DUE TO AFB TRAFFIC.
A110-10PRKG UNAVBL EXC 4 HRS PPR CALL 316-515-7140.
A110-11EXTENSIVE TRAINING ACTIVITIES
A110-12RWY 19 CALM WIND RWY.
A110-2ARRS FROM THE W CROSS MIDFIELD ENTER DNWND.
A110-6DEER, COYOTE & MIGRATORY WATER FOWL ON & INVOF ARPT.
A110-7PPR FOR PARKING OR TAXIING WEST SIDE OF RY.
A110-8BE ALERT COL JAMES JABARA ARPT 3 MILES NORTH 1/2 MILE WEST OF ARPT.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 01 AND 19; MIRL RWY 01/19 - CTAF.
E111EXISTED PRIOR TO 1959.
BEECH FACTORY (ICAO: KBEC, IATA: BEC) is a public airport located in WICHITA, KS, US.
