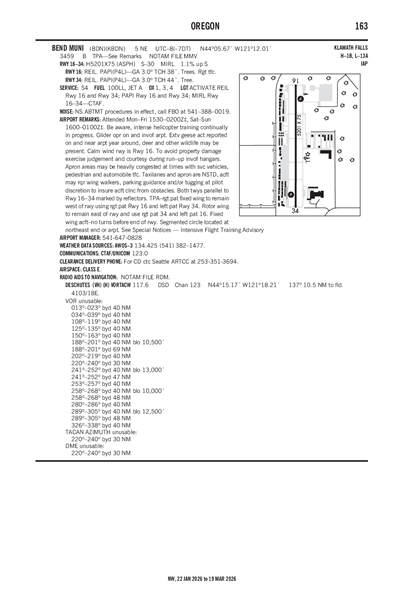

BEND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBDN
ICAO KBDNLocal BDN
BEND MUNI
PublicPUB

5 miles NE of BEND, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 05' 40"N 121° 12' 01"W
Elevation
3459' MSL
Pattern Alt
4459' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KBDN VFR
1:55 AM PST
Overcast 12,000'
Broken 8,500'
10sm
48°F
36°F
29.91"Hg
220° 6kts
AO2
METAR KBDN 040955Z AUTO 22006KT 10SM BKN085 OVC120 09/02 A2991 RMK AO2
+ Add Your Business

KBDN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 134.425
(541) 382-1477

Common

CTAF 123.0
ACTVT REIL RWY 16/34; PAPI RWY 16/34; MIRL RWY 16/34 - CTAF.
UNICOM 123.0

Center

SEATTLE CENTER 126.15
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS126.15/269.475 (REDMOND RCAG).

Terminal Area Forecast

KBDN
Tue, 3/3 9:27 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 5:00 AM PST
Overcast 5,000'
6sm
VRB° 4kts
VFR
5:00 AM PST - 10:00 AM PST
Light Rain
Overcast 5,000'
6sm
230° 8kts
VFR
10:00 AM PST - 4:00 PM PST
Light Rain
Overcast 5,000'
6sm
270° 14kts
Gusts 22kts
VFR
4:00 PM PST - 7:00 PM PST
Overcast 5,000'
6sm
290° 12kts
Gusts 22kts
VFR
7:00 PM PST - 10:00 PM PST
Overcast 5,000'
6sm
290° 13kts
TAF KBDN 040527Z 0406/0506 VRB04KT P6SM OVC050
   FM041300 23008KT P6SM -RA OVC050
   FM041800 27014G22KT P6SM -RA OVC050
   FM050000 29012G22KT P6SM OVC050
   FM050300 29013KT P6SM OVC050
KBDN
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
1900Z
3/13/26
0500Z
Runway!MMV 03/006 BDN RWY 16/34 CLSD DLY 1900-0500 2603091900-2603130500
2/26/26
1500Z
3/8/26
0600Z
!MMV 02/180 BDN TWY A4, TWY A SOUTH OF TWY A5, TWY A NORTH OF TWY A3 CLSD 2602261500-2603080600
12/13/25
1500Z
5/1/26
0300Z
!MMV 12/069 BDN OBST CRANE (ASN 2024-ANM-836-NRA) 440535N1211154W (0.1NM SE BDN) 3580FT (170FT AGL) FLAGGED AND LGTD DLY 1500-0300 2512131500-2605010300
12/12/25
1922Z
4/30/26
1500Z
Runway!MMV 12/068 BDN RWY 16/34 WIP ADJ E SIDE 2512121922-2604301500
FDC
3/4/26
2000Z
3/11/26
0442Z
!FDC 6/3276 BDN IAP BEND MUNI, BEND, OR.
VOR RWY 16, AMDT 11...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DSD VORTAC OUT OF SERVICE. 2603042000-2603110442EST
3/4/26
2000Z
3/11/26
0442Z
!FDC 6/3275 BDN ODP BEND MUNI, BEND, OR.
BEND TWO DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DSD VORTAC OUT OF SERVICE. 2603042000-2603110442EST
No
SAT-SUN 0800-1700
MON-FRI 0730-1800
CITY OF BEND
BOX 431
BEND, OR 97701
Phone: 541-389-0258
TRACY WILLIAMS
BOX 431
BEND, OR 97709
Phone: 541-647-0828
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
--
ACTVT REIL RWY 16/34; PAPI RWY 16/34; MIRL RWY 16/34 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High Pressure
Avionics
Charter Service
Glider Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Glider Towing

Runway 16/34

5201 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 06' 06"N 44° 05' 15"N
Longitude 121° 12' 01"W 121° 12' 01"W
Elevation 3,403' 3,459'
Threshold Crossing Height 38 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BOTH TWYS PARALLEL TO RY 16/34 MKD BY REFLECTORS.
A110-11RP FIXED WING TO RMN WEST OF RWY USING RP RWY 16 AND LP RWY 34. ROTOR WING TO RMN EAST OF RWY AND USE RP 34 AND LP 16. FIXED WING ACFT-NO TURNS BFR END OF RWY.
A110-12FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
A110-2CALM WIND RWY IS RWY 16
A110-3NOISE ABATEMENT PROCEDURES IN EFFECT, CALL FBO AT (541) 388-0019
A110-4BE AWARE, INTENSE HELICOPTER TRAINING CONTINUALLY IN PROGRESS.
A110-6EXTENSIVE GEESE ACTIVITY REPORTED ON AND NEAR ARPT YEAR AROUND. DEER AND OTHER WILDLIFE MAY BE PRESENT.
A110-7APRON AREAS MAY BE HEAVILY CONGESTED AT TIMES WITH SVC VEHICLES, PEDESTRIAN AND AUTOMOBILE TFC.
A110-8TAXILANES AND APRON ARE NSTD. ACFT MAY REQUIRE WING WALKERS, PARKING GUIDANCE AND/OR TUGGING AT PILOT DISCRETION TO INSURE ACFT CLEARANCE FROM OBSTACLES.
A110-9TO AVOID PROPERTY DAMAGE EXERCISE JUDGEMENT AND COURTESY DURING RUN-UP IN VICINITY OF HANGARS.
A81-APTACTVT REIL RWY 16/34; PAPI RWY 16/34; MIRL RWY 16/34 - CTAF.
A84SEGMENTED CRC LCTD AT NE END OF ARPT.
A94GLIDER OPR ON & INVOF ARPT.
E111EXISTED PRIOR TO 1959.
BEND MUNI (ICAO: KBDN, IATA: BDN) is a public airport located in BEND, OR, US.
