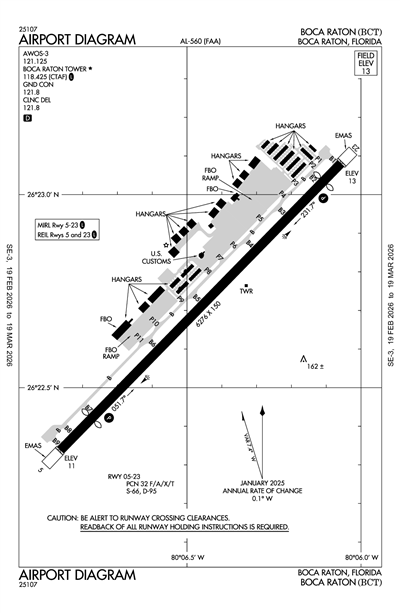

BOCA RATON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBCT
ICAO KBCTIATA BCTLocal BCT
BOCA RATON
PublicPUB

2 miles NW of BOCA RATON, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
26° 22' 43"N 80° 06' 28"W
Elevation
13' MSL
Pattern Alt
1013' MSL
Mag Variation
7°W
Declination
5°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KBCT MVFR
8:53 PM EST
Broken 2,900'
Scattered 1,800'
10sm
75°F
70°F
30.19"Hg
070° 9kts
Gusts 15kts
METAR KBCT 040153Z 07009G15KT 10SM SCT018 BKN029 24/21 A3019
+ Add Your Business

KBCT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.125
(561) 391-2696

Common

CTAF 118.425
WHEN ATCT CLSD ACTV REIL RWY 05 & 23, PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.

Clearance

Clearance Delivery 121.8

Ground

BOCA RATON GROUND 121.8
0700-2300

Tower

BOCA RATON TOWER 118.425
0700-2300

Arrival

CLMNT STAR 124.6
CPTAN STAR 124.6
JESTR STAR 124.6
MAHHI STAR 127.35
MELBOURNE STAR 124.6
STOOP STAR 124.6
TTYLR STAR 125.2
VUUDU STAR 127.35

Approach

PALM BEACH APPROACH 127.35

Departure

MYZNR DP 127.35
PALM BEACH DEPARTURE 127.35
TURPS DP 127.35

Flight Service

Ground Communication Outlet 127.35
WHEN ATCT CLSD, GCO AVBL ON FREQ 127.35 PALM BEACH CD.

Terminal Area Forecast

KFXE (11nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
Temporary 7:00 PM EST - 9:00 PM EST
Broken 3,000'
N/A
Calm
VFR
7:00 PM EST - 10:00 AM EST
Showers in vicinity
Scattered 5,000'
Scattered 3,500'
6sm
080° 12kts
VFR
10:00 AM EST - 3:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
090° 14kts
Gusts 24kts
MVFR
3:00 PM EST - 7:00 PM EST
Broken 5,000'
Broken 3,000'
6sm
080° 13kts
Gusts 23kts
TAF KFXE 032320Z 0400/0424 08012KT P6SM VCSH SCT035 SCT050
   TEMPO 0400/0402 BKN030
   FM041500 09014G24KT P6SM SCT030 SCT050
   FM042000 08013G23KT P6SM BKN030 BKN050
KBCT
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
0130Z
3/2/26
0030Z
!MIA 02/389 BCT AIRSPACE SEE FDC 6/9679 ZMA 91.141 VIP 2602280130-2603020030
2/24/26
1139Z
3/6/26
1700Z
!MIA 02/368 BCT AD AP ABN NOT STD NOT ROTATING 2602241139-2603061700EST
FDC
10/21/25
1416Z
!FDC 5/3788 BCT ODP BOCA RATON, BOCA RATON, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKE-OFF MINIMUMS: RWY 23, 300-1 1/8, OR STANDARD WITH MINIMUM CLIMB OF 243 FEET PER NM TO 300.
TAKEOFF OBSTACLE NOTES: RWY 23, BRIDGE, 1881 FT FROM DER, 196 FT LEFT OF CENTERLINE, 40 AGL/80 MSL (2021-ASO-2880-OE PERMANENT)..
ALL OTHER DATA REMAINS AS PUBLISHED. 2510211416-2710271416EST
Yes
ALL
BOCA RATON AIRPORT AUTHORITY
903 NW 35TH STREET
BOCA RATON, FL 33431
Phone: 561-391-2202
CLARA BENNETT
903 NW 35TH STREET
BOCA RATON, FL 33431
Phone: 561-391-2202
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
WHEN ATCT CLSD ACTV REIL RWY 05 & 23, PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

6276 ft. x 150 ft.
ASPH
Good
GRVD
MED
32/F/A/X/T
66,000lbs
95,000lbs
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 26° 22' 20"N 26° 23' 05"N
Longitude 80° 06' 52"W 80° 06' 04"W
Elevation 11' 13'
Threshold Crossing Height 46 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.25° 3.25°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT INFO - AMGR. VOLUNTARY NOISE ABATEMENT PROC IN EFCT ALL TIMES & ACFT. VOLUNTARY CURFEW 2200-0700. USE NBAA STD NOISE ABATEMENT APCH & DEP PROC.
A110-10FOR CD, IF UNA VIA GCO CTC PALM BEACH APCH AT 561-684-9047 OR 561-275-1430.
A110-11WHEN ATCT CLSD, GCO AVBL ON FREQ 127.35 PALM BEACH CD.
A110-12ACFT PRKG LTD DURG VIP TFR PDS.
A110-1324 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 561-391-2202.
A110-2BIRDS ON AND INVOF ARPT.
A110-4USE RECOMMENDED DEP: RWY 05 L TURN HDG 360 STAY W OF INTERSTATE TO 1500 FT; RWY 23 R TURN HDG 255 AS SOON AS PRACTICABLE AFT PASSING RWY END TO 1500 FT; AVOID RESIDENTIAL AREAS; OVERFLY MALL AREA.
A110-5TGLS VOLUNTARILY RSTRD TO 0900-1700 MON-FRI; VOLUNTARY RESTRN ON STOP & GO LNDGS OR INT DEPS. VOLUNTARY RESTRN ON REPETITIVE PAT OPS.
A110-7MAINT RUNUP NA 0100-1300.
A110-8ACFT PRKG LTD DURG VIP TFR PDS.
A110-9US CUSTS USER FEE ARPT. US CUSTS AVBL THUR-MON 1030-1830 LCL - 561-292-9231. CLSD TO ARR OUTSIDE NML HR EXC O/R AND APVL BY US CUSTS; MNM ADDNL FEE. CTC US CUSTS 561-665-5842 FOR AFT HR APVL.
A16EXT 211
A57-05APCH SLOPE 36:1 TO DTRH.
A57-23APCH SLOPE 41:1 TO DSPLCD THLD.
A81-APTWHEN ATCT CLSD ACTV REIL RWY 05 & 23, PAPI RWY 5 & 23; MIRL RWY 05/23 - CTAF.
E60-05_EMASENGINEERED MATERIALS ARRESTING SYS (EMAS) 252 FT IN LEN BY 170 FT IN WID LCTD AT THE DER 05.
E60-23_EMASENGINEERED MATERIALS ARRESTING SYS (EMAS) 300 FT IN LEN BY 170 FT IN WID LCTD AT THE DER 23.
BOCA RATON (ICAO: KBCT, IATA: BCT) is a public airport located in BOCA RATON, FL, US.
