KBBG
BRANSON
PublicPUB

8 miles SSE of BRANSON, MO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 31' 55"N 93° 12' 02"W
1302' MSL
2302' MSL
02E
JET A, JET A (FSII), 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KBBG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 128.15

ATIS

ATIS
 124.625

AWOS-3

AWOS-3
417-334-0218
 124.625

Clearance Delivery

CD/P
 118.4

Ground

GND/P
 118.4

Tower

LCL/P
 128.15

FAA A/FD Pages

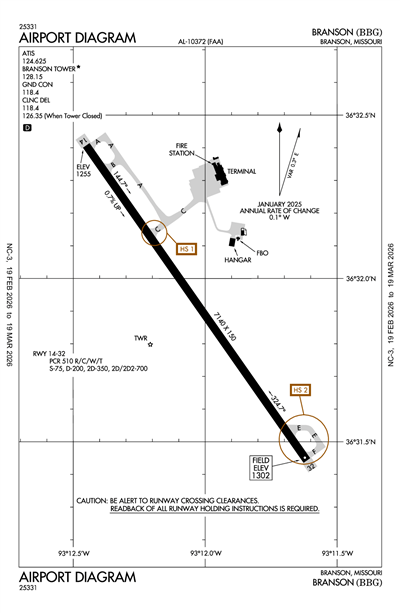

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KBBG
Domestic
1/14/251918Z !BBG 01/022 BBG APRON GA APN FICON 4FT WINDROWS OBS AT 2501141300. 2501141918-2501151918
1/14/251315Z !BBG 01/020 BBG RWY 32 FICON DRY 125FT WID 24IN WINDROWS REMAINDER 3FT WET SN OBS AT 2501141315. 2501141315-2501151315
1/14/251313Z !BBG 01/018 BBG TWY C FICON 35IN WINDROWS OBS AT 2501141313. 2501141313-2501151313
1/10/251505Z !BBG 01/005 BBG OBST TOWER LGT (ASR 1237838) 363109.00N0931711.60W (4.2NM W BBG) 1539.0FT (276.9FT AGL) U/S 2501101505-2504100500
1/1/251614Z !BBG 01/001 BBG OBST TOWER LGT (ASR 1011717) 363158.00N0931944.00W (6.2NM W BBG) 1714.6FT (549.9FT AGL) U/S 2501011614-2502012359
12/28/242005Z !BBG 12/006 BBG SVC ATIS 124.625 U/S 2412282005-2502010600
12/25/241112Z !BBG 12/003 BBG OBST TOWER LGT (ASR 1213171) 363123.00N0931439.00W (2.2NM WSW BBG) 1679.1FT (345.1FT AGL) U/S 2412251112-2502262359
FDC
1/10/251920Z !FDC 5/2362 BBG IAP BRANSON, BRANSON, MO.
ILS OR LOC RWY 32, ORIG-B...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DGD VORTAC OUT OF SERVICE. 2501101920-2502101920EST
4/27/231311Z !FDC 3/7694 BBG IAP BRANSON, BRANSON, MO.
ILS OR LOC RWY 32, ORIG-B...
CHANGE NOTE TO READ: INOP TABLE DOES NOT APPLY TO S-ILS 32 ALL CATS AND S-LOC 32 CAT A/B. WHEN ALS INOP, INCREASE S-LOC 32 CAT C/D TO 1 3/8 SM.
2304271311-2504271311EST
Yes
ALL
TANEY COUNTY
4000 BRANSON AIRPORT BLVD.
HOLLISTER, MO 65672
Phone: 417-334-7813
BRANSON AIRPORT, LLC- STANLEY FIELD
4000 BRANSON AIRPORT BLVD.
HOLLISTER, MO 65672
Phone: 417-334-7813
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
BBG
--
WHEN ATCT CLSD: ACTVT MALSF RWY 32; REIL RWY 14; PAPI RWY 14 & 32; HIRL RWY 14/32 - CTAF.
N/A
Yes
N/A
No
Hanger, Tie-Down
No
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

7140 ft. x 150 ft.
CONC
Good
GRVD
HIGH
39 /R/C/W/U
75,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 14 Runway 32
True Heading 145°325°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 36° 32' 24"N 36° 31' 27"N
Longitude 93° 12' 27"W 93° 11' 37"W
Elevation 1,255' 1,302'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-3HILLS & UNEVEN TRRN INVOF; TRRN AVOIDANCE MAY ACTVT ON FNL.
A110-6BIRDS INVOF ARPT.
BRANSON (ICAO: KBBG, IATA: BBG) is a public airport located in BRANSON, MO.
