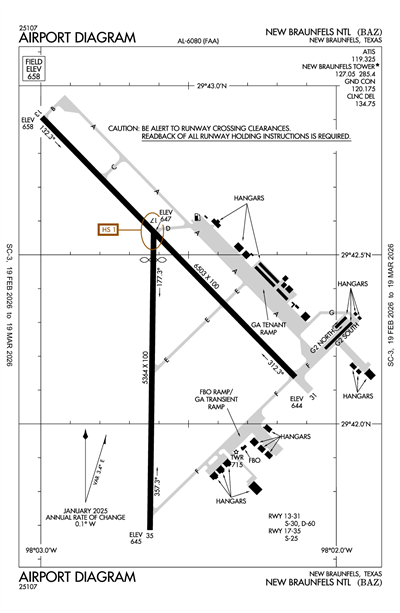

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAZ
NEW BRAUNFELS NTL
PublicPUB

4 miles E of NEW BRAUNFELS, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 42' 21"N 98° 02' 36"W
658' MSL
1658' MSL
08E
JET A, JET A (FSII), 100LL
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
10/31/24-11/28/24
KBAZ VFR
5:51 AM CST
Clear
10sm
61°F
47°F
29.99"Hg
010° 10kts
AO2 SLP151 T01610083 10194 20161 55001 $
KBAZ 091151Z AUTO 01010KT 10SM CLR 16/08 A2999 RMK AO2 SLP151 T01610083 10194 20161 55001 $
Add Your Business

KBAZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 127.05

ATIS

ATIS
 119.325

ASOS

ASOS
830-629-7979
 119.325

Clearance Delivery

CD/P
 134.75

Ground

GND/P
 120.175

Tower

LCL/P
 127.05

Terminal Area Forecast

KRND (16nm)
Fri, 11/8 11:00 AM CST
Fri, 11/8 11:00 AM CST - Sat, 11/9 5:00 PM CST
VFR
11:00 AM CST - 3:00 PM CST
Broken 3,500'
Scattered 2,500'
6sm
29.82"Hg
140° 10kts
Gusts 15kts
VFR
Becoming 3:00 PM CST - 4:00 PM CST
Showers in vicinity
Broken 8,000'
Scattered 4,000'
6sm
29.79"Hg
210° 9kts
VFR
Becoming 4:00 PM CST - 7:00 PM CST
Showers in vicinity
Overcast 6,000'
Broken 3,500'
6sm
29.85"Hg
340° 12kts
Gusts 20kts
MVFR
Temporary 5:00 PM CST - 8:00 PM CST
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
Broken 2,500'
4.97sm
Calm
VFR
Becoming 7:00 PM CST - 9:00 AM CST
Broken 3,500'
Scattered 2,500'
6sm
29.91"Hg
330° 12kts
VFR
Becoming 9:00 AM CST - 5:00 PM CST
Sky Clear
6sm
29.94"Hg
010° 10kts
Gusts 15kts
TAF KRND 081700Z 0817/0923 14010G15KT 9999 SCT025 BKN035 QNH2981INS
   BECMG 0821/0822 21009KT 9999 VCSH SCT040 BKN080 QNH2980INS
   BECMG 0822/0823 34012G20KT 9999 VCSH BKN035 OVC060 QNH2985INS
   TEMPO 0823/0902 8000 -SHRA VCTS BKN025CB BKN050
   BECMG 0901/0902 33012KT 9999 NSW SCT025 BKN035 QNH2991INS
   BECMG 0915/0916 01010G15KT 9999 SKC QNH2993INS TX29/0821Z TN15/0913Z LAST NO AMDS AFT 0901 NEXT 1211
KBAZ
Domestic
11/5/240348Z !BAZ 11/004 BAZ OBST TOWER LGT (ASR 1011946) 294416.00N0981143.00W (8.2NM WNW BAZ) 1132.9FT (265.1FT AGL) U/S 2411050348-2502020500
11/4/241426Z !BAZ 11/003 BAZ COM GND COM OUTLET 120.175 U/S CLR DELIVERY USE 134.750 2411041426-2411302359
10/21/241309Z !BAZ 10/008 BAZ TWY A WIP ADJ 2410211309-2501312359
10/21/241309Z !BAZ 10/007 BAZ TWY A BTN TWY F AND TWY D CLSD 2410211309-2501312359
10/21/241307Z !BAZ 10/006 BAZ TWY E BTN RWY 13/31 AND TWY A CLSD 2410211307-2501312359
9/30/242227Z !BAZ 09/009 BAZ OBST TOWER LGT (ASR 1205080) 294230.80N0980940.00W (6.2NM W BAZ) 1205.1FT (299.9FT AGL) U/S 2409302227-2412312359
8/25/241650Z !BAZ 08/011 BAZ OBST TOWER LGT (ASR 1049222) 294448.50N0980431.80W (3.0NM NW BAZ) 895.0FT (215.9FT AGL) U/S 2408251650-2411230400
8/16/241402Z !BAZ 08/008 BAZ OBST TOWER LGT (ASR 1002316) 294022.10N0981449.80W (10.9NM W BAZ) 1342.2FT (469.2FT AGL) U/S 2408161402-2412312359
FDC
10/1/241350Z !FDC 4/2849 BAZ SID NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
TJANO ONE DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
THX VORTAC OUT OF SERVICE. 2410011350-2505131350EST
8/19/241504Z !FDC 4/1678 BAZ IAP NEW BRAUNFELS NTL, NEW BRAUNFELS, TX.
RNAV (GPS) RWY 13, AMDT 1A...
LNAV MDA 1360/HAT 702 ALL CATS. VIS CATS C/D 1 3/4.
CIRCLING MDA 1360/HAA 702 ALL CATS. VIS CAT C 2 CAT D 2 1/4.
VDP 2.03 NM TO RW13.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE SAN MARCOS ALTIMETER SETTING; INCREASE LPV DA TO 951 FEET, LNAV/VNAV DA TO 1169 FEET; INCREASE ALL MDAS 60 FEET AND VISIBILITY LNAV CATS C/D AND CIRCLING CATS C/D VISIBILITY TO 2 1/2 SM.
TRANSMISSION TOWERS, UP TO 1043 MSL, 5.27 NM NW OF APCH END RWY 13 (2022-ASW-18176 THRU 18188-OE).
2408191504-2608191504EST
Yes
0700-1900
CITY OF NEW BRAUNFELS
550 LANDA ST.
NEW BRAUNFELS, TX 78130
Phone: (830) 221-4000
ROBERT LEE
2333 FM 758
NEW BRAUNFELS, TX 78130
Phone: 830-221-4290
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
BAZ
--
ACTVT MIRL RWY 13/31, RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 13/31

6503 ft. x 100 ft.
ASPH
Good
GRVD
MED

30,000lbs
60,000lbs
--
--
  Runway 13 Runway 31
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 42' 54"N 29° 42' 08"N
Longitude 98° 02' 60"W 98° 02' 08"W
Elevation 658' 644'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

5364 ft. x 100 ft.
ASPH
Fair
NONE
MED

25,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 42' 34"N 29° 41' 41"N
Longitude 98° 02' 37"W 98° 02' 38"W
Elevation 647' 644'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRDS INVOF ARPT.
A110-4HIGH PER MIL ACFT OPRG AT RANDOLPH AFB AUX FLD (SEGUIN-SEQ).
A110-5FOR CD WHEN ATCT IS CLSD CTC SAT APCH AT 210-805-5516.
NEW BRAUNFELS NTL (ICAO: KBAZ, IATA: BAZ) is a public airport located in NEW BRAUNFELS, TX.
