KBAM
BATTLE MOUNTAIN
PublicPUB

3 miles SE of BATTLE MOUNTAIN, NV
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 35' 57"N 116° 52' 28"W
4536' MSL
5536' MSL
13E
JET A, 100LL
RENO (RNO)
SALT LAKE CITY
SALT LAKE CITY (ZLC)
4/17/25-5/15/25
KBAM VFR
3:35 AM PST
Clear
10sm
23°F
18°F
30.34"Hg
Calm
AO1
METAR KBAM 271135Z AUTO 00000KT 10SM CLR M05/M08 A3034 RMK AO1
+ Add Your Business

KBAM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
775-635-8419
 119.45

FAA A/FD Pages

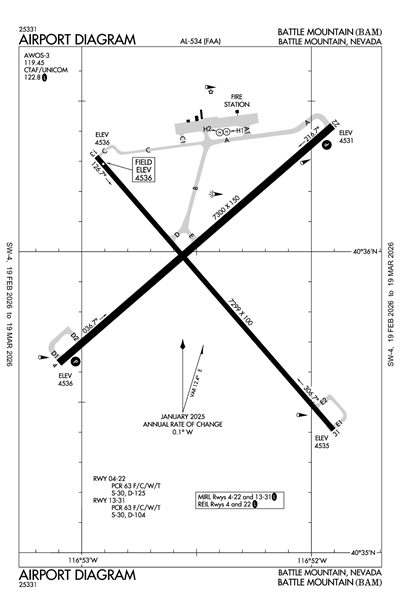

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KWMC (46nm)
Thu, 11/27 3:42 AM PST
Thu, 11/27 4:00 AM PST - Fri, 11/28 4:00 AM PST
VFR
4:00 AM PST - 8:00 AM PST
Scattered 20,000'
6sm
VRB° 3kts
VFR
8:00 AM PST - 3:00 PM PST
Broken 15,000'
6sm
130° 3kts
VFR
3:00 PM PST - 4:00 AM PST
Few 20,000'
6sm
180° 6kts
TAF KWMC 271142Z 2712/2812 VRB03KT P6SM SCT200
   FM271600 13003KT P6SM BKN150
   FM272300 18006KT P6SM FEW200
KBAM
EffectiveExpiresCategoryNOTAM
Domestic
11/18/25
0904Z
!RNO 11/099 BAM COM REMOTE COM OUTLET 122.4 U/S 2511180904-2512052000EST
11/7/25
1933Z
2/7/26
2359Z
Runway!RNO 11/039 BAM RWY 04 PAPI U/S 2511071933-2602072359
FDC
9/16/25
1146Z
!FDC 5/4574 BAM IAP BATTLE MOUNTAIN,
BATTLE MOUNTAIN, NV.
RNAV (GPS) RWY 22, ORIG...
DELETE PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 51).
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS. CIRCLING CAT
D MDA 5480/HAT 944. DELETE PROFILE NOTE ASTERISK LNAV ONLY. DELETE
ASTERISK FROM MINIMUMIN ALTITUDE AT ZOWIE 2.6 NM TO RW22. DELETE
ASTERISK FROM VDP AT 0.8 NM TO RW22.
THIS IS RNAV (GPS) RWY 22, ORIG-A. 2509161146-PERM
9/16/25
1146Z
!FDC 5/4573 BAM IAP BATTLE MOUNTAIN,
BATTLE MOUNTAIN, NV.
RNAV (GPS) RWY 4, AMDT 2...
DELETE PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT (VGSI
ANGLE 3.20/TCH 50).
THIS IS RNAV (GPS) RWY 4, AMDT 2A. 2509161146-PERM
2/28/25
2148Z
!FDC 5/8053 BAM IAP BATTLE MOUNTAIN, BATTLE MOUNTAIN, NV.
RNAV (GPS) RWY 22, ORIG...
RNAV (GPS) RWY 4, AMDT 2...
DISREGARD PROFILE NOTE: VGSI AND DESCENT ANGLES NOT COINCIDENT.
2502282148-2701272148EST
No
OCT-MAY 0700-1700
JUN-SEP 0700-1800
AFT HRS CALL (775) 635-2245.
LANDER COUNTY
50 STATE ROUTE 305
BATTLE MOUNTAIN, NV 89820
Phone: 775-635-2885
BERT RAMOS
50 STATE ROUTE 305
BATTLE MOUNTAIN, NV 89820
Phone: 775-455-6860
RENO FSS (RNO)
Toll Free: 1-800-WX-BRIEF
RNO
--
ACTVT REIL RWY 04 & 22; PAPI RWY 04 & 22; MIRL RWY 04/22 & 13/31; PERI LGTS H1 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Crop Dusting
Air Ambulance
Annual Surveying

Runway 04/22

7300 ft. x 150 ft.
ASPH
Good
NONE
MED

30,000lbs
125,000lbs
--
--
  Runway 04 Runway 22
True Heading 49°229°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 35' 38"N 40° 36' 25"N
Longitude 116° 53' 06"W 116° 51' 54"W
Elevation 4,536' 4,531'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3.2° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 13/31

7299 ft. x 100 ft.
ASPH
Poor
NONE
MED

30,000lbs
104,000lbs
--
--
  Runway 13 Runway 31
True Heading 139°319°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 40° 36' 19"N 40° 35' 24"N
Longitude 116° 52' 56"W 116° 51' 54"W
Elevation 4,536' 4,535'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

60 ft. x 60 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 72°252°
Traffic Pattern
Markings BSC
Markings Condition POOR
Latitude 40° 36' 24"N N/A
Longitude 116° 52' 22"W N/A
Elevation 4,528' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

60 ft. x 60 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H2 Runway
True Heading 72°252°
Traffic Pattern
Markings BSC
Markings Condition POOR
Latitude 40° 36' 24"N N/A
Longitude 116° 52' 24"W N/A
Elevation 4,528' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1(E81) EDGE REFLECTORS ON TWYS AND RAMP.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
BATTLE MOUNTAIN (ICAO: KBAM, IATA: BAM) is a public airport located in BATTLE MOUNTAIN, NV.
