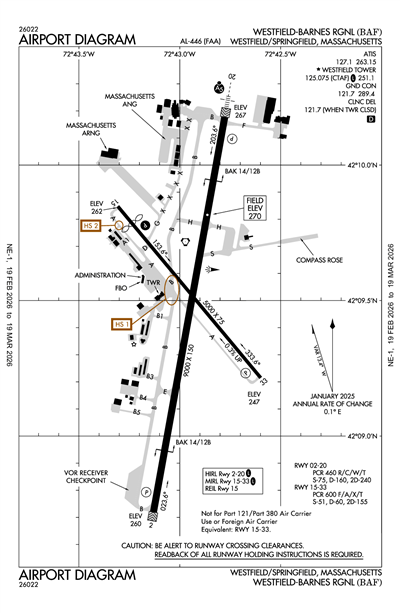

WESTFIELD-BARNES RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAF
ICAO KBAFIATA BAFLocal BAF
WESTFIELD-BARNES RGNL
PublicPUB

3 miles N of WESTFIELD/SPRINGFIELD, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 09' 29"N 72° 42' 57"W
Elevation
270' MSL
Pattern Alt
1299' MSL
Mag Variation
14°W
Declination
14°W
Fuel
JET A, 100LL
FSS
BURLINGTON (BTV)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KBAF VFR
5:53 PM EST
Clear
10sm
41°F
35°F
30.21"Hg
Calm
AO2 SLP237 T00500017 $
METAR KBAF 042253Z 00000KT 10SM CLR 05/02 A3021 RMK AO2 SLP237 T00500017 $
+ Add Your Business

KBAF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.1
(413) 572-4561
ASOS 127.1
(413) 568-2267

Common

CTAF 125.075
DUSK-DAWN; WHEN ATCT CLSD ACTVT MALSR RWY 20; PAPI RWY 15; HIRL RWY 02/20; MIRL RWY 15/33 - CTAF. PAPI RWY 33 OPR CONSLY.

Clearance

Clearance Delivery 121.7
WHEN TWR CLSD
Clearance Delivery 121.7

Ground

WESTFIELD GROUND 121.7
0700-2200

Tower

WESTFIELD TOWER 125.075
0700-2200

Arrival

DEER PARK STAR 123.95
061-240
DEER PARK STAR 125.35
241-060
STELA STAR 125.35

Approach

BRADLEY APPROACH 125.35

Departure

BRADLEY DEPARTURE 125.35

Emergency

Emergency 121.5

Military

NG OPS 46.75
NG OPS 123.05

Terminal Area Forecast

KBAF
Wed, 3/4 3:00 PM EST
Wed, 3/4 3:00 PM EST - Thu, 3/5 9:00 PM EST
VFR
3:00 PM EST - 3:00 PM EST
Sky Clear
6sm
30.18"Hg
190° 6kts
VFR
Becoming 3:00 PM EST - 9:00 PM EST
Overcast 6,000'
6sm
30.30"Hg
070° 6kts
TAF KBAF 042000Z 0420/0602 19006KT 9999 SKC QNH3019INS
   BECMG 0520/0521 07006KT 9999 OVC060 QNH3029INS TX09/0420Z TNM06/0512Z
KBAF
EffectiveExpiresCategoryNOTAM
Domestic
3/8/26
2000Z
11/1/26
1100Z
!BAF 03/008 BAF AD AP SFC COND NOT REP DLY 2000-1100
2603082000-2611011100
3/6/26
0500Z
3/6/26
1100Z
!BAF 03/010 BAF COM CLR DELIVERY 251.1 U/S 2603060500-2603061100
3/6/26
0500Z
3/6/26
1100Z
!BAF 03/009 BAF COM CLR DELIVERY 121.7 U/S 2603060500-2603061100
3/3/26
2006Z
Runway!BAF 03/007 BAF RWY 15/33 CLSD 2603032006-2603041300EST
3/3/26
2006Z
Runway!BAF 03/006 BAF RWY 02/20 CLSD 2603032006-2603041300EST
3/3/26
2005Z
!BAF 03/005 BAF AD AP CLSD EXC ROTARY WING 2603032005-2603041300EST
2/27/26
1933Z
!BAF 02/133 BAF AD AP DEICING EQPT NOT AVBL 2602271933-2603132100EST
2/26/26
1937Z
!BAF 02/132 BAF APRON MAIN RAMP FICON 10FT SN PILES OBS AT 2602261937. 2602261937-2603062000EST
12/6/25
0300Z
6/30/26
1200Z
Runway!BAF 12/052 BAF RWY 02/20 BAK-12 ARST SYSTEM U/S EXC 24HR PPR 413-568-9151 2512060300-2606301200
11/5/25
2100Z
3/7/26
1200Z
!BAF 11/006 BAF AD AP SFC COND NOT REP DLY 2100-1200 2511052100-2603071200
10/2/25
1930Z
6/30/26
2359Z
!BAF 10/003 BAF OBST TOWER LGT (ASN 2010-ANE-928-OE) 420658N0725160W (7.1NM WSW BAF) 1001FT (207FT AGL) U/S 2510021930-2606302359
FDC
2/25/26
1345Z
!FDC 6/9907 BAF IAP WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
VOR RWY 20, AMDT 20F...
S-20 CAT C VIS 1 1/2.
FOR INOPERATIVE ALS, INCREASE S-20 CATS C/D VISIBILITY TO 1 7/8.
2602251345-2802251343EST
2/19/26
2126Z
5/6/26
2126Z
!FDC 6/7201 BAF IAP WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
ILS OR LOC RWY 20, AMDT 8D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CTR VOR/DME OUT OF SERVICE. 2602192126-2605062126EST
2/19/26
2126Z
5/6/26
2126Z
!FDC 6/7200 BAF IAP WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
VOR RWY 20, AMDT 20F...
MISSED APPROACH: CLIMB RUNWAY HEADING TO 3000, EXPECT RADAR VECTORS.
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CTR VOR/DME OUT OF SERVICE. 2602192126-2605062126EST
2/19/26
2126Z
5/6/26
2126Z
!FDC 6/7199 BAF IAP U.S. DOD WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
HI - ILS OR LOC RWY 20, AMDT 5...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CTR VOR/DME OUT OF SERVICE. 2602192126-2605062126EST
11/27/25
0901Z
!FDC 5/2063 BAF IAP WESTFIELD-BARNES RGNL,
WESTFIELD/SPRINGFIELD, MA.
VOR OR TACAN RWY 2, AMDT 4H...
S-2: VISIBILITY CAT C 1 3/4 SM.
THIS IS VOR OR TACAN RWY 2, AMDT 4I. 2511270901-PERM
11/27/25
0901Z
!FDC 5/1837 BAF IAP U.S. DOD WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
HI - ILS OR LOC RWY 20, AMDT 5...
HI - TACAN RWY 20, AMDT 6...
PROCEDURE NA.
2511270901-2711271400EST
8/15/25
1619Z
!FDC 5/8397 BAF ODP WESTFIELD-BARNES RGNL, WESTFIELD/SPRINGFIELD, MA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5...
DEPARTURE PROCEDURE: RWY 20, CLIMB HEADING 204 TO 1500 BEFORE PROCEEDING ON COURSE. ALL OTHER DATA REMAINS AS PUBLISHED. 2508151619-2708151618EST
Yes
0700-1900 LOCAL
FUEL AVBL 0700-1900; SVC AFT 1900 PPR - 413-485-0078.
CITY OF WESTFIELD
CITY HALL, 59 COURT ST
WESTFIELD, MA 01085
Phone: 413-572-6201
DANIEL SHEARER
110 AIRPORT RD
WESTFIELD, MA 01085
Phone: 413-572-6275
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
BAF
--
DUSK-DAWN; WHEN ATCT CLSD ACTVT MALSR RWY 20; PAPI RWY 15; HIRL RWY 02/20; MIRL RWY 15/33 - CTAF. PAPI RWY 33 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

9000 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

75,000lbs
160,000lbs
240,000lbs
--
  Runway 02 Runway 20
True Heading 10°190°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 08' 43"N 42° 10' 11"N
Longitude 72° 43' 08"W 72° 42' 47"W
Elevation 260' 266'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 15/33

5000 ft. x 75 ft.
ASPH
Excellent
GRVD
MED

51,000lbs
60,000lbs
155,000lbs
--
  Runway 15 Runway 33
True Heading 140°320°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 09' 51"N 42° 09' 13"N
Longitude 72° 43' 18"W 72° 42' 36"W
Elevation 262' 247'
Threshold Crossing Height 41 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3.5° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1JET ACFT STARTING UNITS AVBL.
A110-10CSTMS/AG/IMG - 1300-2300Z++ MON-FRI, FONE PRIOR 2300Z++ PRECEDING WKD C413-785-0365, C800-973-2867.
A110-11MISC - FIRST 400 FT RWY 02/20 CONC, MID 8200 FT ASPH. RWY 02/20 GROOVED. CLASS D ASP EFF 1200-0300Z++, OT CLASS G. LDG FEE COML, CORPORATE AND ALL ACFT OVER 5000 LB. FLT NOTIFICATION SVC, ADCUS, AVBL. LAWRS.
A110-12BE AWARE WING TIP CLRNC S RUNUP/D-ARM PAD TWY CNTRLN MKGS FOR F-15 A/C ONLY.
A110-13SERVICE-A-GEAR: REQ THRU TWR DUR TWR OPR HR, WHEN TWR CLSD REQ THRU ANG CP, WHIP ON UHF 309.0. RWY 02/20, MIL ACFT ARST BARRIERS MAY FAIL IN THE UP POSN. VERIFY STATUS OF BARRIERS PRIOR TO LDG. HVY ACFT SHOULD AVOID LDG DRCTLY ON ARST BARRIER. RWY GROOVING FOR SFC DRAINAGE WI 10 FT N & S OF BOTH ARST SYSS.
A110-14MILITARY: ANG: NO ACFT WITH WINGSPAN GREATER THAN 110 FT ALLOWED ON ANG RAMP. NSTD TXL CNTRLN MRKG LEADING INTO ANG APN.
A110-15RWY 2/20 MIL ACFT ARST BARRIERS MAY FAIL IN THE UP PSN. SML GA ACFT SHOULD USE CTN, SPCLY AT NGT, AND IF POSS CFM THE ACTUAL STS OF THE BARRIERS PRIOR TO LDG.
A110-16COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -20C.
A110-17MILITARY: ANG: BASH II COND JUL & AUG FOR MIGRATORY BIRD ACT.
A110-18FOR CD WHEN ATCT CLSD, CTC BRADLEY APCH AT 860-386-3597.
A110-2SVR DOWNDRAFT AER 33 WHEN WIND NW IN EXCESS OF 15 KT. BIRDS & OTHER WILDLIFE ON & INVOF ARPT.
A110-4TWY G CLSD TO CIV OPS.
A110-7ACFT & HEL NOISE ABATEMENT PROCS IN EFCT - AMGR.
A110-8MILITARY: ANG: OPR 1200-2200Z++ TUE-FRI EXC HOL. LTD COPTER MAINT, FUEL AND ACFT PRK ARNG RAMP. NO COPTER LDG OR DEP FR PRK RAMP. CTC DSN 698-1811 OR C413-568-9151 EXTN 1811.
A110-9MILITARY: ANG: ALL TRAN ACFT MUST OBTAIN PPR NR 48 HR PRIOR; CTC C413-568-9151 EXTN 698-1228/9 OR DSN 698-1228/9. OFFL BUS 1230-2200Z++ TUE-FRI, CLSD HOL. NO DE-ICING AVBL. FOR CURRENT BIRD WATCH COND CTC HAWK OPS 309.0; DURG NON-DUTY HR CTC WHIP ON 309.0. BASH PHASE II COND, JUL, AUG AND SEP FOR MIGRATORY BIRD ACT.
A17-M1FUEL AVBL 0700-1900; SVC AFT 1900 PPR - 413-485-0078.
A24FEE FOR COML; CORPORATE; ACFT OVR 7500 LBS.
A26PPR 24 HR FOR ACR OPS WITH MORE THAN 9 PAX - AMGR.
A30-15/33RWY 15/33 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A31-02/20200 FT OVRN NE END & SW END.
A39-02/20PCR VALUE: 460/R/C/W/T
A39-15/33PCR VALUE: 600/F/A/X/T
A43-15UNUSBL BYD 4 NM.
A81-APTDUSK-DAWN; WHEN ATCT CLSD ACTVT MALSR RWY 20; PAPI RWY 15; HIRL RWY 02/20; MIRL RWY 15/33 - CTAF. PAPI RWY 33 OPR CONSLY.
E147TPA 1300 (1029) LGT ACFT; 1800 (1529) HVY & MIL ACFT. EXPC MIL OVHD & CLSD PAT TFC.
E60-02_BAK-14BAK-14 BAK-12B(B) (1420 FT).
E60-20_BAK-14BAK-14 BAK-12B(B) (1450 FT).
WESTFIELD-BARNES RGNL (ICAO: KBAF, IATA: BAF) is a public airport located in WESTFIELD/SPRINGFIELD, MA, US.
