iFlightPlanner



...

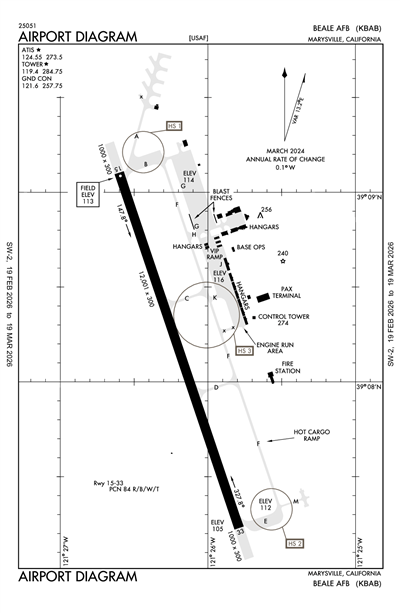

BEALE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KBAB
ICAO KBABIATA BABLocal BAB
BEALE AFB
PrivatePVT

6 miles E of MARYSVILLE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 08' 10"N 121° 26' 12"W
Elevation
113' MSL
Pattern Alt
1113' MSL
Mag Variation
13°E
Declination
16°E
Fuel
None Listed
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KBAB VFR
5:55 PM PST
Clear
10sm
62°F
53°F
30.03"Hg
140° 7kts
AO2 SLP172 T01690116 $
METAR KBAB 040155Z AUTO 14007KT 10SM CLR 17/12 A3003 RMK AO2 SLP172 T01690116 $
+ Add Your Business

KBAB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.55
Hours: OPER DURG WING OPER.

Common

Pilot-To-Dispatcher (PTD) 141.1

Ground

BEALE GROUND 121.6
OPR H24 FR 1400Z++ MON THRU 0600Z++ SAT, AND/OR BY NOTAM; CLSD WKEND AND HOL.

Tower

BEALE TOWER 119.4
OPR H24 FR 1400Z++ MON THRU 0600Z++ SAT, AND/OR BY NOTAM; CLSD WKEND AND HOL.
Supervisor Of Flying (SOF) 139.6

Approach

NORCAL APPROACH 125.4

Departure

NORCAL DEPARTURE 125.4

Emergency

Emergency 121.5

Other

CLASS C 125.4

Terminal Area Forecast

KBAB
Tue, 3/3 11:00 AM PST
Tue, 3/3 11:00 AM PST - Wed, 3/4 5:00 PM PST
VFR
11:00 AM PST - 6:00 PM PST
Sky Clear
6sm
30.12"Hg
210° 4kts
VFR
Becoming 6:00 PM PST - 5:00 AM PST
Scattered 10,000'
6sm
30.06"Hg
150° 6kts
MVFR
Becoming 5:00 AM PST - 10:00 AM PST
Broken 1,000'
6sm
30.03"Hg
130° 12kts
VFR
Becoming 10:00 AM PST - 5:00 PM PST
Scattered 2,000'
6sm
30.12"Hg
170° 9kts
TAF KBAB 031900Z 0319/0501 21004KT 9999 SKC QNH3012INS
   BECMG 0402/0403 15006KT 9999 SCT100 QNH3005INS
   BECMG 0413/0414 13012KT 9999 BKN010 QNH3004INS
   BECMG 0418/0419 17009KT 9999 SCT020 QNH3011INS TX19/0323Z TN10/0412Z
KBAB
EffectiveExpiresCategoryNOTAM
Military
2/25/26
0301Z
3/6/26
2359Z
RunwayRWY 33 APPROACH END WIND CONE OBSTRUCTION LIGHT OUT OF SERVICE. N39.1236032 W121.4320249
2/24/26
2359Z
2/27/26
2359Z
RunwayRWY 15/33 WET
2/24/26
2330Z
3/3/26
2359Z
AIRCRAFT RESCUE AND FIREFIGHTING STATUS DOWNGRADED TO RED, CRITICAL LEVEL OF SERVICE FOR KC-135 AIRCRAFT. SUCCESSFUL OUTCOMES CAN ONLY BE EXPECTED WHEN THE INCIDENT CAN BE QUICKLY MITIGATED. FIREFIGHTERS ARE EXPECTED TO REVERT TO DEFENSIVE OPERATIONS WHEN THE EMERGENCY CANNOT BE QUICKLY CONTAINED.
2/24/26
2327Z
2/27/26
2327Z
M0154/26 NOTAMC M0146/26
2/24/26
0415Z
2/27/26
0415Z
M0153/26 NOTAMC M0148/26
2/23/26
2217Z
2/27/26
2359Z
PARKING SPOT TA1 CLOSED.
12/18/25
1936Z
2/27/26
2359Z
Aerodrome!KBAB V0769/25 BAB AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ALL INSTRUMENT FLIGHT PROCEDURES, CHANGE CAT C CIRCLING MINIMA TO READ 640-1 1/2 527 (600-1 1/2). 2512181936-2602272359
12/1/25
1528Z
2/27/26
2359Z
TaxiwayTWY M CLOSED
Yes
ALL
OPR H24 FR 1400Z++ MON THRU 0600Z++ SAT (2200L FRI), AND/OR BY NOTAM; CLSD WKEND AND HOL, OPENING AT 1400Z++ THE NEXT DUTY DAY.
USAF
BEALE AFB
MARYSVILLE, CA 95903
BASE OPERATIONS (USAF)
9TH CBAT SUP GP (SAC) BEALE AFB
MARYSVILLE, CA 95903
Phone: 530-634-4823
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
BAB
Sunset to Sunrise
--
N/A
Yes
No
No
Hangar
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
Low Pressure
Low Pressure
Cargo Handling

Runway 15/33

12001 ft. x 300 ft.

CONC
GRVD
HIGH
84/R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 161°341°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 09' 06"N 39° 07' 14"N
Longitude 121° 26' 36"W 121° 25' 47"W
Elevation 113' 105'
Threshold Crossing Height 54 ft. AGL 51 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1BEARING STRENGTH RWY 15/33: S160 T300 ST175 ST175 SBTT620 TT490 TDT840.
A110-12CSTMS/AG/IMG: 24 HR PN RQR FOR CSTMS AND AG.
A110-13MISC: TRAN ACFT EXP PROGRESSIVE TAXI. NO COMSEC MATERIAL AVBL. TRAN AIRCREW SHOULD PLAN TO ARR WITH APPROPRIATE COMSEC TO COMPLETE ENTIRE MSN. RWY 15-33 GROOVED. CLASS C AIRSPACE CONT.
A110-15RWY LGTS: RY 15, SF.
A110-16CAUTION: BEALE AFB IS LCTD ON A MAJ MIGRATORY BIRD FLYWAY.
A110-17BEARING STRENGTH RWY 15/33: S81, T122, ST175, SBTT590, TT490, TDT840.
A110-19PMSV METRO: WX OBSN AVBL H24 VIA AUTO OBSN SYS; WX SVC AVBL 1 HR PRIOR TO AFLD OPR HRS AND DUR FCST SEVERE WX DSN 368-9134, C530-634-9134. DUR WX FLT CLOSURES REMOTE BRIEFING SVC AVBL FROM 25 OP WX SQ DSN 228-6598/6599/6588.
A110-2JASU: (AM32A-60A) (A/M32A-86) 7(MC-1A) (MC-2A).
A110-20PMSV METRO: WHEN AUTO OBSN SYS INOP, OBST FR 325-060 DEG, 080-220 DEG, AND 245-280 DEG MAY IMPACT PREVAILING VIS.
A110-21CAUTION: USE EXTREME CAUTION FOR UNMANNED ACFT ACT IN VCNTY OF BEALE AFB.
A110-22CSTMS/AG/IMG: LTD CSTMS/AG AVBL TO MIL ACFT ONLY, 24 HR PN RQR. CTC AFLD MGT AT C530-634-2002 OR DSN 368-2002.
A110-23ATIS: OPR WHEN AERODROME IS OPEN.
A110-24FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-6874
A110-25MISC: NO SPACE-A PAX SUPPORT AVBL ON WKENDS, HOL, AND ACC FAMILY DAYS.
A110-26RSTD: VIP PRKG RSTD TO ACFT WITH WINGSPAN 85 FT OR LESS. LRGR DV ACFT WILL PARK ON CARGO SPOTS.
A110-27MISC: WX SVC AVBL H24. CURRENT WX OBSN AVBL VIA ATIS OR CTC ATC.
A110-3FUEL: J8.
A110-30SVC TRAN ALERT: LAV CART AVBL FOR TSNT ACFT WITH PRIOR CDN. AIRCREW WILL HAVE TO PERFORM THEIR OWN LAV SVC AND CLEANUP.
A110-31SVC TRAN ALERT: NO POTABLE WATER OR ICE SVC.
A110-32AFRC: 940TH COMD POST, DSN 368-1960, C530-634-1960.
A110-33MISC: FOR SUPPORT OUTSIDE OF AIRFIELD OPR HRS (I.E., WKENDS, WING DOWN DAYS AND HOL) CTC BEALE 9RW COMMAND POST, DSN 368-5700, C530-634-5700.
A110-34MISC: STORAGE OF CLASSIFIED MTRL UNAVBL AT AIRFIELD MGMT; CTC COMMAND POST DSN 368-5700, C530-634-5700, H24 PRIOR.
A110-4FLUID: W SP LPOX LOX.
A110-5RWYLGTS: RY 33, SF.
A110-6OIL: O-128-133-148.
A110-7TRAN ALERT: SVC AVBL 1500-0600Z++ MON-FRI EXC FEDERAL HOL. ACFT THAT ARR AFTER 0600Z++ WILL NOT BE SVCD UNTIL NEXT DUTY DAY. FLEET SVC AVBL, 24 HR PN.
A110-8RSTD: PPR 24 HR PN, CTC BASE OPS DSN 368-2002/9120, C530-634-2002/9120. ISSUED PPR VALID 1 HR +/- ETA, EARLY/LATE ARR/DEP MUST RE-COORD.
A110-9RSTD: NO UNANNOUNCED ACFT PRACTICE APCH. INBOUND TSNT ACFT OBTAIN APVL FROM CTL TWR DSN 368-9140 FOR ACFT PRACTICE APCH PRIOR TO FLT. LTD PRKG AVBL.
A17-M1OPR H24 FR 1400Z++ MON THRU 0600Z++ SAT (2200L FRI), AND/OR BY NOTAM; CLSD WKEND AND HOL, OPENING AT 1400Z++ THE NEXT DUTY DAY.
A32-15/33RWY 300 FT WIDE MARKED AT 200 FT; FULL 300 FT WIDTH USBL.
E147TFC PAT: RECTANGULAR PAT 1100 FT; OVHD PAT 2100 FT. FTR TYPE ACFT FLY RP RWY 15.
BEALE AFB (ICAO: KBAB, IATA: BAB) is a private airport located in MARYSVILLE, CA, US.
