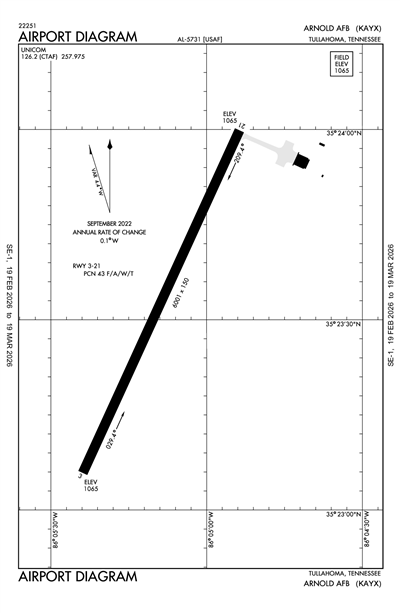

ARNOLD AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAYX
ICAO KAYXLocal AYX
ARNOLD AFB
PrivatePVT

TULLAHOMA, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 23' 33"N 86° 05' 09"W
Elevation
1065' MSL
Pattern Alt
2065' MSL
Mag Variation
4°W
Declination
2°W
Fuel
None Listed
FSS
NASHVILLE (BNA)
Sectional
ATLANTA
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KTHA (8nm) VFR
9:55 PM CST
Few 3,700'
10sm
61°F
54°F
30.17"Hg
170° 10kts
A01
METAR KTHA 040355Z AUTO 17010KT 10SM FEW037 16/12 A3017 RMK A01
+ Add Your Business

KAYX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 126.2
UHF 257.975

Airport Diagrams

Instrument Approach

Terminal Area Forecast

KMQY (42nm)
Tue, 3/3 5:20 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 8:00 PM CST
Scattered 25,000'
6sm
200° 11kts
Gusts 20kts
VFR
8:00 PM CST - 8:00 AM CST
Broken 3,500'
6sm
180° 9kts
MVFR
8:00 AM CST - 1:00 PM CST
Broken 2,500'
6sm
200° 10kts
Gusts 18kts
VFR
1:00 PM CST - 5:00 PM CST
Scattered 3,000'
6sm
210° 12kts
Gusts 20kts
VFR
5:00 PM CST - 6:00 PM CST
Scattered 25,000'
6sm
200° 9kts
TAF KMQY 032320Z 0400/0424 20011G20KT P6SM SCT250
   FM040200 18009KT P6SM BKN035
   FM041400 20010G18KT P6SM BKN025
   FM041900 21012G20KT P6SM SCT030
   FM042300 20009KT P6SM SCT250
KAYX
EffectiveExpiresCategoryNOTAM
Military
12/15/25
1349Z
12/31/26
2359Z
Aerodrome!KAYX V0096/25 AYX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 21 CHANGE CIRCLING MINIMA TO THE FOLLOWING: CAT A 1520-1 455 (500-1); CAT B 1680-1 615 (700-1); CAT C 1700-1 3/4 635 (700-1 3/4); CAT D 1800-2 1/4 735 (800-2 1/4). 2512151349-2612312359
12/15/25
1338Z
12/31/26
2359Z
Aerodrome!KAYX V0095/25 AYX AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 3 CHANGE CIRCLING TO: CAT A 1520-1 455 (500-1); CAT B 1680-1 615 (700-1); CAT C 1700-1 3/4 635 (700-1 3/4); CAT D 1800-2 1/4 735 (800-2 1/4). 2512151338-2612312359
No
Unknown
USAF
ARNOLD AFB
TULLAHOMA, TN 37389
JON HAYWOOD
ARNOLD AFB
TULLAHOMA, TN 37389
Phone: 931-454-7851
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
ACTVT AS RQR.
24 HR.
N/A
N/A
No
No
None
No
None
None
None
None
None

Runway 03/21

6000 ft. x 150 ft.
ASPH
Excellent
NONE
HIGH
43/F/A/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 24°204°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 23' 06"N 35° 23' 60"N
Longitude 86° 05' 24"W 86° 04' 54"W
Elevation 1,065' 1,065'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10CTN: LDG AT PILOT DISCRETION.
A110-13FOR CD CTC MEMPHIS ARTCC AT 901-368-8238/8234.
A110-14RSTD: MIL ACFT ONLY.
A110-15MISC: NO LCL WIND SENSOR; CTC 128.325 TULLAHOMA RGNL 8 NM W FOR WX.
A110-16UNATNDD. OFFL BUS ONLY; PPR.
A110-4TRANS ALERT: NO MAINT SUPPORT.
A110-7CTN: CTC ARNOLD AIR OPS 15 MIN PRIOR TO LDG FOR ARR INFO & WILDLIFE UPDATE - 127.45.
A110-8CTN: C-130 AIRDROP & HOP INVOF ARPT.
A110-9TFC PAT: OVHD 2500 FT PAT FLOWN W OF RWY; AVOID OVERFLIGHT OF LRG ROCKET TEST FAC 1 NM E & BASE STRUCTURES 2 NM E BLW 2500 AGL.
A35-03/21WT BRG CPTY ST175; RWY 03 FIRST 1000 FT WT BRG CPTY ST121 DDTW425.
A81-APTACTVT AS RQR.
A81-BCN24 HR.
A82126.2 OR UHF 257.975
E100UHF 257.975
ARNOLD AFB (ICAO: KAYX, IATA: AYX) is a private airport located in TULLAHOMA, TN, US.
