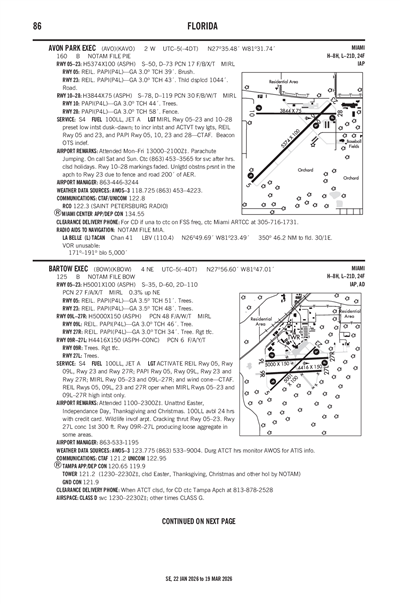

AVON PARK EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAVO
ICAO KAVOIATA AVOLocal AVO
AVON PARK EXEC
PublicPUB

2 miles W of AVON PARK, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 35' 29"N 81° 31' 44"W
Elevation
160' MSL
Pattern Alt
1160' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KSEF (13nm) VFR
10:55 PM EST
Clear
10sm
65°F
65°F
30.24"Hg
040° 5kts
AO2 T01860181
METAR KSEF 040355Z AUTO 04005KT 10SM CLR 19/18 A3024 RMK AO2 T01860181
+ Add Your Business

KAVO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.725
(863) 453-4223

Common

CTAF 122.8
MIRL RWY 05/23 & 10/28 PRESET LOW INTST DUSK-DAWN; TO INCR INTST AND ACTVT TWY LGTS, REIL RWY 05 & 23, AND PAPI RWY 05, 10, 23 & 28, - CTAF.
UNICOM 122.8

Center

MIAMI CENTER 134.55
LOW, APCH/DEP SVC PRVDD BY MIAMI ARTCC ON FREQS 134.55/257.7 (AVON PARK RCAG).

Flight Service

Flight Service 122.3
(PIE)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLAL (35nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Scattered 8,000'
6sm
070° 10kts
Gusts 20kts
VFR
9:00 PM EST - 7:00 PM EST
Few 8,000'
6sm
070° 9kts
TAF KLAL 032320Z 0400/0424 07010G20KT P6SM SCT080
   FM040200 07009KT P6SM FEW080
KAVO
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
1929Z
8/21/26
2359Z
!PIE 02/322 AVO OBST TOWER LGT (ASR UNKNOWN) 273543.20N0813227.22W (.4NM SW AVO) UNKNOWN (79FT AGL) U/S 2602211929-2608212359
2/21/26
1929Z
8/21/26
2359Z
!PIE 02/321 AVO OBST TOWER LGT (ASR UNKNOWN) 273458.96N0813227.36W (1.5NM S AVO) UNKNOWN (79FT AGL) U/S 2602211929-2608212359
1/23/26
1741Z
2/28/26
0001Z
!PIE 01/201 AVO AIRSPACE MIL ACT WI AN AREA DEFINED AS 5NM RADIUS OF
AVO SFC-14000FT 2601231741-2602280001
1/23/26
1200Z
2/27/26
2300Z
!PIE 01/195 AVO AIRSPACE SEE ZMA 01/411 NUMEROUS MIL ACFT DLY 1200-2300 2601231200-2602272300
FDC
10/16/25
1818Z
!FDC 5/1918 AVO IAP AVON PARK EXEC, AVON PARK, FL.
RNAV (GPS) RWY 5, ORIG-B...
LPV DA 460/HAT 300 ALL CATS.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MCO ALTIMETER SETTING AND INCREASE LPV DA TO 588 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL MDAS 140 FEET; AND CIRCLING VISIBILITY CAT B 1/4 SM.
2510161818-2710161817EST
No
MON-FRI 0800-1600
ON CALL SAT & SUN. CTC (863) 453-3565 FOR SVC AFTER HRS. CLSD HOLIDAYS.
CITY OF AVON PARK
110 EAST MAIN STREET
AVON PARK, FL 33825
Phone: 863-452-4400
JEREMY BOGGS
1535 STATE ROAD 64 WEST
AVON PARK, FL 33825
Phone: 863-446-3244
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
PIE
--
MIRL RWY 05/23 & 10/28 PRESET LOW INTST DUSK-DAWN; TO INCR INTST AND ACTVT TWY LGTS, REIL RWY 05 & 23, AND PAPI RWY 05, 10, 23 & 28, - CTAF.
N/A
BEACON OTS INDEF
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 05/23

5374 ft. x 100 ft.
ASPH
Good
NONE
MED
17/F/B/X/T
50,000lbs
73,000lbs
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition FAIR FAIR
Latitude 27° 35' 04"N 27° 35' 42"N
Longitude 81° 32' 06"W 81° 31' 24"W
Elevation 160' 152'
Threshold Crossing Height 39 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

3844 ft. x 75 ft.
ASPH
Fair
NONE
MED
30/F/B/W/T
78,000lbs
119,000lbs
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition POOR POOR
Latitude 27° 35' 37"N 27° 35' 37"N
Longitude 81° 32' 04"W 81° 31' 21"W
Elevation 153' 152'
Threshold Crossing Height 44 ft. AGL 58 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A11GARRETT ANDERSON 863-452-4400
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC MIAMI ARTCC AT 305-716-1731.
A110-4UNLGTD OBSTNS PRSNT IN THE APCH TO RY 23 DUE TO FENCE & ROAD 200 FT OF AER 23.
A14AIRPORT PHYSICAL ADDRESS: 1545 STATE RD 64 WEST, AVON PARK, FL 33825 FAX: 863-452-4413
A17-H1ON CALL SAT & SUN. CTC (863) 453-3565 FOR SVC AFTER HRS. CLSD HOLIDAYS.
A42-10_CONDRWY 10/28 MARKINGS FADED.
A42-28_CONDRWY 10/28 MARKINGS FADED.
A57-23RWY 23 APCH RATIO 28:1 TO DTHR.
A58-23RY 23, UNLGTD 15 FT ROAD; 90 FT FM END OF RWY, 250 FT RIGHT OF CNTRLN.
A80BEACON OTS INDEF
A81-APTMIRL RWY 05/23 & 10/28 PRESET LOW INTST DUSK-DAWN; TO INCR INTST AND ACTVT TWY LGTS, REIL RWY 05 & 23, AND PAPI RWY 05, 10, 23 & 28, - CTAF.
E111VFR OPNS ONLY.
AVON PARK EXEC (ICAO: KAVO, IATA: AVO) is a public airport located in AVON PARK, FL, US.
