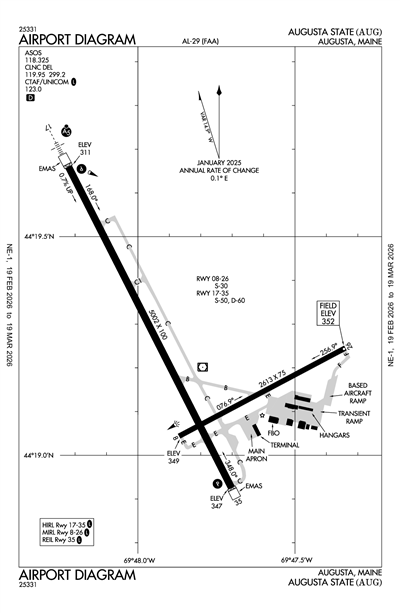

AUGUSTA STATE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAUG
ICAO KAUGIATA AUGLocal AUG
AUGUSTA STATE
PublicPUB

1 miles NW of AUGUSTA, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 19' 14"N 69° 47' 50"W
Elevation
352' MSL
Pattern Alt
1400' MSL
Mag Variation
15°W
Declination
18°W
Fuel
JET A, 100LL
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KAUG IFR
9:53 PM EST
Mist
Obscured 1,700'
1sm
27°F
27°F
30.22"Hg
160° 3kts
AO2 SLP238 T10281028 58027 PWINO FZRANO $
METAR KAUG 040253Z AUTO 16003KT 1SM BR VV017 M03/M03 A3022 RMK AO2 SLP238 T10281028 58027 PWINO FZRANO $
+ Add Your Business

KAUG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.325
(207) 623-0432

Common

CTAF 123.0
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35; MIRL RWY 08/26 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 119.95

Approach

PORTLAND APPROACH 128.35

Departure

PORTLAND DEPARTURE 128.35

Center

PORTLAND CENTER 120.25
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 128.2/263.05 (112-292) (WATERBORO RCAG); FREQS 120.25/290.50 (293-111) (BANGOR RCAG) WHEN PORTLAND APCH CTL CLSD.
PORTLAND CENTER 128.2
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 128.2/263.05 (112-292) (WATERBORO RCAG); FREQS 120.25/290.50 (293-111) (BANGOR RCAG) WHEN PORTLAND APCH CTL CLSD.

Flight Service

Flight Service 122.1
(BGR)
Flight Service 122.2
(BGR)

Terminal Area Forecast

KAUG
Tue, 3/3 6:57 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 10:00 PM EST
Light Snow and Mist
Overcast 2,900'
Broken 800'
1.5sm
190° 6kts
IFR
10:00 PM EST - 5:00 AM EST
Light Snow and Mist
Overcast 600'
1sm
180° 5kts
LIFR
5:00 AM EST - 8:00 AM EST
Mist
Overcast 300'
2sm
270° 3kts
VFR
8:00 AM EST - 7:00 PM EST
Scattered 25,000'
6sm
270° 6kts
TAF KAUG 032357Z 0400/0424 19006KT 1 1/2SM -SN BR BKN008 OVC029
   FM040300 18005KT 1SM -SN BR OVC006
   FM041000 27003KT 2SM BR OVC003
   FM041300 27006KT P6SM SCT250
KAUG
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1400Z
2/26/26
1800Z
Runway!AUG 02/053 AUG RWY 35 RWY END ID LGT U/S 2602261400-2602261800
2/26/26
1400Z
2/26/26
1800Z
Runway!AUG 02/052 AUG RWY 17 ALS U/S 2602261400-2602261800
2/26/26
1400Z
2/26/26
1800Z
Runway!AUG 02/051 AUG RWY 35 PAPI U/S 2602261400-2602261800
2/26/26
1400Z
2/26/26
1800Z
Runway!AUG 02/050 AUG RWY 17 PAPI U/S 2602261400-2602261800
2/24/26
1632Z
!AUG 02/048 AUG COM REMOTE COM OUTLET 121.5, 243.0 U/S 2602241632-2603062359EST
2/24/26
1009Z
!AUG 02/044 AUG COM REMOTE COM OUTLET 122.1 U/S 2602241009-2603112359EST
2/24/26
1005Z
!AUG 02/043 AUG COM VOR VOICE U/S 2602241005-2603112359EST
2/23/26
1818Z
!AUG 02/039 AUG NAV VOR/DME U/S 2602231818-2603302359EST
1/12/26
1333Z
12/31/26
2300Z
!AUG 01/036 AUG AD AP ARFF VEHICLE U/S 2601121333-2612312300
12/2/25
1316Z
4/30/26
1300Z
!AUG 12/011 AUG APRON EAST RAMP CLSD 2512021316-2604301300
10/9/25
1740Z
4/7/26
2359Z
!AUG 10/012 AUG NAV ILS RWY 17 DUNNS OM UNUSABLE 2510091740-2604072359
FDC
2/16/26
1425Z
3/18/26
1425Z
!FDC 6/4470 AUG IAP AUGUSTA STATE, AUGUSTA, ME.
ILS OR LOC RWY 17, AMDT 3D...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
SHAWE FIX MINIMUMS NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AUG VOR/DME OUT OF SERVICE. 2602161425-2603181425EST
10/30/25
2034Z
!FDC 5/9279 AUG IAP AUGUSTA STATE, AUGUSTA, ME.
ILS OR LOC RWY 17, AMDT 3D...
AUTO-PILOT COUPLED APPROACH NA BELOW 570.
2510302034-2710302034EST
7/29/25
1324Z
!FDC 5/6261 AUG IAP AUGUSTA STATE, AUGUSTA, ME.
VOR RWY 35, AMDT 6D...
ALTERNATE MINIMUMS: STANDARD - CAT C 800-2 1/4, CAT D 900-2 1/2 - NA WHEN LOCAL WEATHER NOT AVAILABLE.
2507291324-2707301324EST
No
0700-2000
ARPT UNATNDD AFT DARK DURG SN & ICE SEASON. FLD COND RPRTS, SN DEPTHS & BA MAY NOT BE AVBL FOR RWYS FM 1800-0600.
STATE OF MAINE
16 STATE HOUSE STATION
AUGUSTA, ME 04333
Phone: 207-624-3250
JOHN GUIMOND
75 AIRPORT RD
AUGUSTA, ME 04330
Phone: 207-626-2306
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
AUG
--
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35; MIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

2613 ft. x 75 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 62°242°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 44° 19' 03"N 44° 19' 15"N
Longitude 69° 47' 52"W 69° 47' 20"W
Elevation 349' 352'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5002 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

50,000lbs
60,000lbs
--
--
  Runway 17 Runway 35
True Heading 153°333°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 19' 40"N 44° 18' 56"N
Longitude 69° 48' 13"W 69° 47' 42"W
Elevation 311' 347'
Threshold Crossing Height 53 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1RWY 35 DESIGNATED CALM WIND RWY.
A110-12ACR RAMP CLSD TO GA TFC.
A110-13RWY 17/35 HAVE EMAS CATEGORY B2.
A110-14FOR CD WHEN PORTLAND APCH CLSD, CTC BOSTON ARTCC AT 603-879-6859.
A110-15PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 17.
A110-2TWY F EAST CLSD TO ALL ACFT WITH WING SPAN GTR THAN 45 FT.
A110-3LDG FEE FOR MULTI-ENG ACFT; FEE WAIVED WITH FUEL PURCHASE.
A110-7BIRDS & DEER ON & INVOF ARPT.
A17-M1ARPT UNATNDD AFT DARK DURG SN & ICE SEASON. FLD COND RPRTS, SN DEPTHS & BA MAY NOT BE AVBL FOR RWYS FM 1800-0600.
A57-17APCH SLP GTR THAN 45 DEG.
A58-177-8 FT BRUSH 190 FT FM THR, 110-120 FT R OF CNTRLN.
A58-26ROAD & FENCE L OF APCH, 0-200 FT FM RWY END, LGTD.
A58-35ROAD 240 FT R, 0-200 FT; 3-7 FT BRUSH 195-200 FT FM THR, 65-130 FT R OF CNTRLN.
A70-100LLFOR FUEL AFT NML BUS HRS CALL 207-622-2507.
A75-HCALL 207-622-1211 FOR HNGR AVBL.
A81-APTACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35; MIRL RWY 08/26 - CTAF.
E111EXISTED PRIOR TO 1959.
E60-17_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 130 FT IN LENGTH BY 122 FT IN WIDTH LCTD AT DER 17.
E60-35_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 150 FT IN LENGTH BY 122 FT IN WIDTH LCTD AT DER 35.
AUGUSTA STATE (ICAO: KAUG, IATA: AUG) is a public airport located in AUGUSTA, ME, US.
