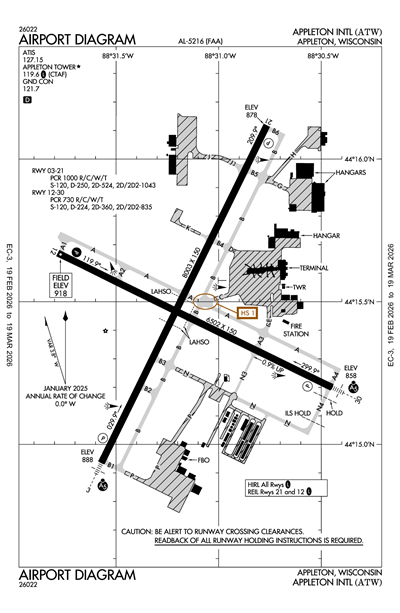

APPLETON INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KATW
ICAO KATWIATA ATWLocal ATW
APPLETON INTL
PublicPUB

3 miles W of APPLETON, WI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 15' 29"N 88° 31' 09"W
Elevation
918' MSL
Pattern Alt
1918' MSL
Mag Variation
4°W
Declination
2°W
Fuel
JET A, 100LL
FSS
GREEN BAY (GRB)
Sectional
GREEN BAY
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KATW VFR
9:45 PM CST
Clear
10sm
36°F
30°F
30.17"Hg
230° 6kts
METAR KATW 040345Z 23006KT 10SM CLR 02/M01 A3017
+ Add Your Business

KATW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.15
AWOS-3 (920) 832-2597

Common

CTAF 119.6
WHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.; SNOW REMOVAL OPNS IN PROGRESS WINTER MONTHS. VEHICLE OPERATORS WILL BE MONITORING CTAF; ACFT LNDG/DEP APPLETON SHOULD USE CTAF WHEN ATCT CLSD.
UNICOM 122.95

Ground

APPLETON GROUND 121.7
0530-2300

Tower

APPLETON TOWER 119.6
0530-2300

Approach

GREEN BAY APPROACH 126.3

Departure

GREEN BAY DEPARTURE 126.3

Center

GREEN BAY CENTER 126.3
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQS 126.3 (APPLETON RCAG)/317.7 (MOSINEE RCAG) WHEN GREEN BAY APCH CLSD.

Terminal Area Forecast

KATW
Tue, 3/3 5:36 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 2:00 AM CST
Sky Clear
6sm
230° 3kts
VFR
2:00 AM CST - 8:00 AM CST
Few 500'
6sm
VRB° 2kts
MVFR
Temporary 4:00 AM CST - 7:00 AM CST
Mist
Scattered 500'
4sm
Calm
VFR
8:00 AM CST - 6:00 PM CST
Scattered 25,000'
6sm
160° 4kts
TAF KATW 032336Z 0400/0424 23003KT P6SM SKC
   FM040800 VRB02KT P6SM FEW005
   TEMPO 0410/0413 4SM BR SCT005
   FM041400 16004KT P6SM SCT250
KATW
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0215Z
2/26/26
0215Z
!ATW 02/156 ATW APRON SOUTH GA RAMP FICON PATCHY 1/8IN DRY SN SANDED OBS AT 2602250215. 2602250215-2602260215
2/25/26
0212Z
2/26/26
0212Z
!ATW 02/155 ATW APRON TERMINAL RAMP FICON PATCHY 1/8IN DRY SN SANDED OBS AT 2602250210. 2602250212-2602260212
2/24/26
2112Z
2/25/26
2112Z
!ATW 02/144 ATW TWY ALL FICON 1/8IN DRY SN OBS AT 2602242112. 2602242112-2602252112
2/24/26
2110Z
2/25/26
2200Z
!ATW 02/142 ATW AD AP ALL SFC WIP SN REMOVAL 2602242110-2602252200
1/22/26
1830Z
3/8/26
1830Z
!ATW 01/196 ATW OBST TOWER LGT (ASR 1055706) 441717.60N0882056.40W (7.5NM ENE ATW) 1148.3FT (419.9FT AGL) U/S 2601221830-2603081830
1/14/26
1314Z
7/29/26
2200Z
Runway!ATW 01/103 ATW RWY 21 RWY END ID LGT NOT STD 2601141314-2607292200
1/6/26
1344Z
!ATW 01/074 ATW NAV ILS RWY 30 OM U/S 2601061344-2607062111EST
12/3/25
1935Z
8/1/26
0100Z
!ATW 12/065 ATW OBST CRANE (ASN 2025-AGL-13789-OE) 441601N0882918W (1.4NM ENE ATW) 1012FT (205FT AGL) FLAGGED AND LGTD 2512031935-2608010100
10/31/25
2111Z
2/28/26
2359Z
!ATW 10/073 ATW OBST TOWER LGT (ASR 1052712) 441453.00N0881801.20W (9.4NM E ATW) 992.1FT (242.1FT AGL) U/S 2510312111-2602282359
FDC
2/25/26
1300Z
3/4/26
2353Z
!FDC 6/9766 ATW IAP APPLETON INTL, APPLETON, WI.
ILS OR LOC RWY 3, AMDT 18...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GRB VORTAC OUT OF SERVICE. 2602251300-2603042353EST
12/10/25
2334Z
!FDC 5/7606 ATW IAP APPLETON INTL, APPLETON, WI.
RNAV (GPS) RWY 21, AMDT 2F...
LNAV MDA 1340/HAT 461 ALL CATS, VIS CATS C/D 1 3/8. CIRCLING CAT A/B MDA 1400/HAA 482. TEMPORARY CRANE 1033 MSL, 2666FT E OF RWY 21 (2025-AGL-3807-OE).
2512102334-2611072355EST
11/6/25
2150Z
!FDC 5/3496 ATW IAP APPLETON INTL, APPLETON, WI.
RNAV (GPS) RWY 21, AMDT 2F...
LNAV/VNAV DA 1265/HAT 386 ALL CATS.
2511062150-2711062150EST
Yes
ALL
OUTAGAMIE COUNTY
W6390 CHALLENGER DR-SUITE 201
APPLETON, WI 54915
Phone: 920-832-5267
ABE WEBER, AIRPORT DIRECTOR
W6390 CHALLENGER DR-SUITE 201
APPLETON, WI 54914
Phone: 920-832-5267
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
ATW
--
WHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

8003 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
524,000lbs
1,043,000lbs
  Runway 03 Runway 21
True Heading 26°206°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 14' 56"N 44° 16' 07"N
Longitude 88° 31' 34"W 88° 30' 46"W
Elevation 888' 878'
Threshold Crossing Height 47 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 12/30

6502 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
224,000lbs
360,000lbs
835,000lbs
  Runway 12 Runway 30
True Heading 116°296°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 15' 40"N 44° 15' 12"N
Longitude 88° 31' 47"W 88° 30' 27"W
Elevation 918' 858'
Threshold Crossing Height 35 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-2BIRDS & MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-3SNOW REMOVAL OPNS IN PROGRESS WINTER MONTHS. VEHICLE OPERATORS WILL BE MONITORING CTAF; ACFT LNDG/DEP APPLETON SHOULD USE CTAF WHEN ATCT CLSD.
A110-4US CSTMS AND BORDER PROTECTION. PPR US CSTMS SVC MON-FRI 1300-2100Z (0800-1600 LOCAL) CALL 920-968-2348.
A110-5WHEN ATCT CLSD, FOR CD CTC GREEN BAY APCH ON FREQ, IF UNA CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-6PERIODIC LIVE FIRE TRNG SOUTH SIDE OF ARPT.
A110-7COML RAMP DEICING PADS ARE AVBL FOR LIVE ENG RUN OPN DRG DEICING.
A39-03/21PCR VALUE: 1000/R/C/W/T
A39-12/30PCR VALUE: 730/R/C/W/T
A43-03OPERATES CONTINUOUSLY.
A43-21OPERATES CONTINUOUSLY. PAPI RESTRICTED BYD 8.5 DEG RGT OF COURSE.
A43-30OPERATES CONTINUOUSLY.
A81-APTWHEN ATCT CLSD HIRL RWY 03/21 PRESET ON LOW INTST; TO INCR INTST & ACTVT MALSR RWY 03, 30; REIL RWY 12, 21; PAPI RWY 12; HIRL RWY 03/21, 12/30 - CTAF.
APPLETON INTL (ICAO: KATW, IATA: ATW) is a public airport located in APPLETON, WI, US.
