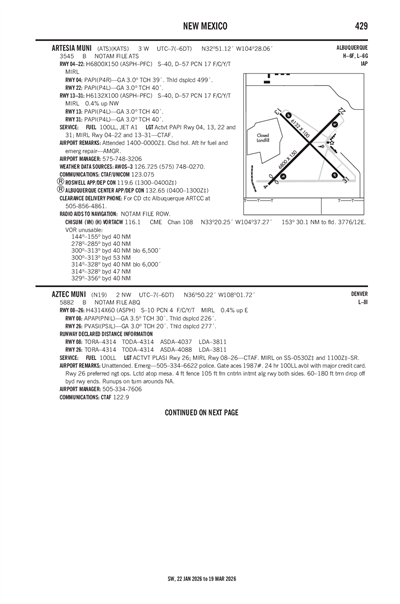

ARTESIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KATS
ICAO KATSIATA ATSLocal ATS
ARTESIA MUNI
PublicPUB

3 miles W of ARTESIA, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 51' 07"N 104° 28' 03"W
Elevation
3545' MSL
Pattern Alt
4545' MSL
Mag Variation
7°E
Declination
9°E
Fuel
JET A-1, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KATS VFR
7:55 PM MST
Clear
10sm
66°F
18°F
29.96"Hg
230° 10kts
AO2
METAR KATS 040255Z AUTO 23010KT 10SM CLR 19/M08 A2996 RMK AO2
+ Add Your Business

KATS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 126.725
(575) 748-0270

Common

CTAF 123.075
ACTVT PAPI RWY 04, 13, 22 & 31; MIRL RWY 04/22 & 13/31 - CTAF.
UNICOM 123.075

Approach

ROSWELL APPROACH 119.6

Departure

ROSWELL DEPARTURE 119.6

Center

ROSWELL CENTER 132.65
LOW/HIGH, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC ON FREQS 132.65/257.6 (ROSWELL RCAG) WHEN ROSWELL APCH CTL CLSD.

Terminal Area Forecast

KROW (27nm)
Tue, 3/3 5:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Broken 20,000'
6sm
270° 14kts
Gusts 24kts
VFR
7:00 PM MST - 2:00 AM MST
Few 20,000'
6sm
250° 8kts
VFR
2:00 AM MST - 9:00 AM MST
Sky Clear
6sm
360° 12kts
Gusts 22kts
VFR
9:00 AM MST - 12:00 PM MST
Sky Clear
6sm
020° 8kts
VFR
12:00 PM MST - 5:00 PM MST
Sky Clear
6sm
VRB° 5kts
TAF KROW 040020Z 0400/0424 27014G24KT P6SM BKN200
   FM040200 25008KT P6SM FEW200
   FM040900 36012G22KT P6SM SKC
   FM041600 02008KT P6SM SKC
   FM041900 VRB05KT P6SM SKC
KATS
EffectiveExpiresCategoryNOTAM
Domestic
2/9/26
1300Z
4/19/26
0400Z
!ATS 02/002 ATS AIRSPACE SEE ZAB 02/071 MIL ACT 2602091300-2604190400
2/8/26
2013Z
6/8/26
2013Z
!ATS 02/004 ATS OBST TOWER LGT (ASR 1002841) 325137.80N1042315.20W (4.1NM E ATS) 3667.0FT (307.1FT AGL) U/S 2602082013-2606082013
2/6/26
1753Z
4/10/26
2300Z
Runway!ATS 02/003 ATS RWY 13 RP 2602061753-2604102300
1/23/26
1800Z
3/27/26
2300Z
Runway!ATS 01/002 ATS RWY 22 PAPI U/S 2601231800-2603272300
FDC
7/8/24
2014Z
!FDC 4/8348 ATS IAP ARTESIA MUNI, ARTESIA, NM.
RNAV (GPS) RWY 31, AMDT 2A...
CHANGE BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -22C OR ABOVE 54C.
2407082014-2607082014EST
No
0700-1700
CLSD HOL.
CITY OF ARTESIA
702 AIRPORT RD
ARTESIA, NM 88210
Phone: 575-746-2122
LANCE GOODRICH
PO BOX 1310
ARTESIA, NM 88211
Phone: 575-748-3206
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ATS
--
ACTVT PAPI RWY 04, 13, 22 & 31; MIRL RWY 04/22 & 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 04/22

6800 ft. x 150 ft.
ASPH
Good
PFC
MED
17/F/C/Y/T
40,000lbs
57,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 32° 50' 42"N 32° 51' 30"N
Longitude 104° 28' 34"W 104° 27' 38"W
Elevation 3,544' 3,520'
Threshold Crossing Height 39 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

6132 ft. x 100 ft.
ASPH
Good
PFC
MED
17/F/C/Y/T
40,000lbs
57,000lbs
--
--
  Runway 13 Runway 31
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 51' 30"N 32° 50' 47"N
Longitude 104° 28' 25"W 104° 27' 35"W
Elevation 3,534' 3,506'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-4AFT HR FUEL & EMERG REPAIR - AMGR.
A17-D1CLSD HOL.
A57-04CLNC SLOPE 50:1 TO DTHR.
A75-HCALL AHEAD - AMGR.
A81-APTACTVT PAPI RWY 04, 13, 22 & 31; MIRL RWY 04/22 & 13/31 - CTAF.
ARTESIA MUNI (ICAO: KATS, IATA: ATS) is a public airport located in ARTESIA, NM, US.
