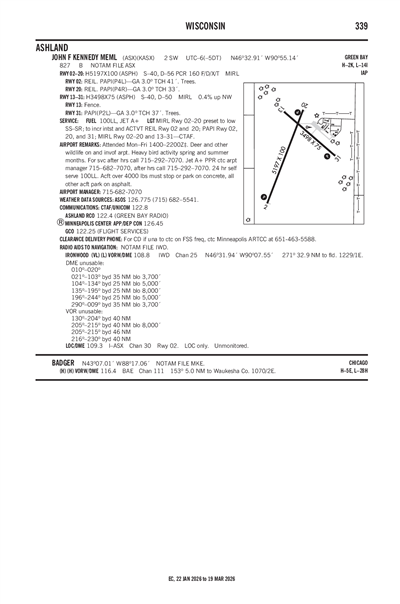

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KASX
JOHN F KENNEDY MEML
PublicPUB

2 miles SW of ASHLAND, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 32' 55"N 90° 55' 08"W
826' MSL
1826' MSL
02W
JET A (FSII), 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
7/11/24-8/8/24
KASX VFR
5:53 AM CDT
Clear
10sm
68°F
53°F
29.84"Hg
VRB° 5kts
AO2 SLP101 T02000117
KASX 191053Z AUTO VRB05KT 10SM CLR 20/12 A2984 RMK AO2 SLP101 T02000117
Add Your Business

KASX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
715-682-5541
 126.775

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KIWD (33nm)
Thu, 9/19 12:27 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 1:00 PM CDT
Scattered 14,000'
6sm
170° 10kts
VFR
1:00 PM CDT - 1:00 AM CDT
Broken 13,000'
Scattered 6,000'
6sm
170° 11kts
Gusts 20kts
KIWD 190527Z 1906/2006 17010KT P6SM SCT140
   FM191800 17011G20KT P6SM SCT060 BKN130
KASX
Domestic
9/9/240502Z !ASX 09/001 ASX OBST TOWER LGT (ASR 1287912) 461938.50N0904057.40W (16.5NM SE ASX) 1736.5FT (299.9FT AGL) U/S 2409090502-2409240402
8/25/242003Z !ASX 08/009 ASX OBST TOWER LGT (ASR 1034033) 463425.00N0905157.00W (2.7NM NE ASX) 1011.8FT (299.9FT AGL) U/S 2408252003-2409252359
8/20/240038Z !ASX 08/006 ASX OBST TOWER LGT (ASR 1310213) 461907.52N0903816.66W (18.1NM SE ASX) 1748FT (357FT AGL) U/S 2408200038-2410040037
8/13/241242Z !ASX 08/002 ASX OBST TOWER LGT (ASN 2021-AGL-9205-OE) 462538N0910217W (8.8NM SW ASX) 1287FT (362FT AGL) U/S 2408131242-2409271241
No
MON-FRI 0800-1600
FOR SVC AFTER HRS CALL 715-292-7070.
COUNTY & CITY OF ASHLAND
601 MAIN STREET WEST
ASHLAND, WI 54806
Phone: 715-682-7071
BILL MOORE
50511 STATE HIGHWAY 112
ASHLAND, WI 54806
Phone: 715-682-7070
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
ASX
--
MIRL RY 02/20 PRESET LOW INTENSITY; TO INCREASE INTENSITY AND ACTVT REIL RY 02; PAPI RY 02/20; MIRL RY 02/20; PAPI RY 31; MIRL RY 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
21
2
1
0
0
0
None
None
None
None
Pilot Instruction

Runway 02/20

5197 ft. x 100 ft.
ASPH
Fair
NONE
MED

42,000lbs
52,000lbs
--
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 32' 26"N 46° 33' 14"N
Longitude 90° 55' 29"W 90° 55' 02"W
Elevation 819' 823'
Threshold Crossing Height 41 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 13/31

3498 ft. x 75 ft.
ASPH
Fair
NONE
MED

40,000lbs
50,000lbs
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 33' 13"N 46° 32' 50"N
Longitude 90° 55' 17"W 90° 54' 39"W
Elevation 824' 810'
Threshold Crossing Height -- 37 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-3DEER & OTR WILDLIFE ON & INVOF ARPT. HVY BIRD ACT SPRING & SUMMER MONTHS.
A110-5ACFT OVER 4000 LBS MUST STOP OR PARK ON CONC; ALL OTR ACFT PARK ON ASPH.
A110-7GCO AVBL ON FREQ 122.25 THRU FLT SVCS.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
JOHN F KENNEDY MEML (ICAO: KASX, IATA: ASX) is a public airport located in ASHLAND, WI.
