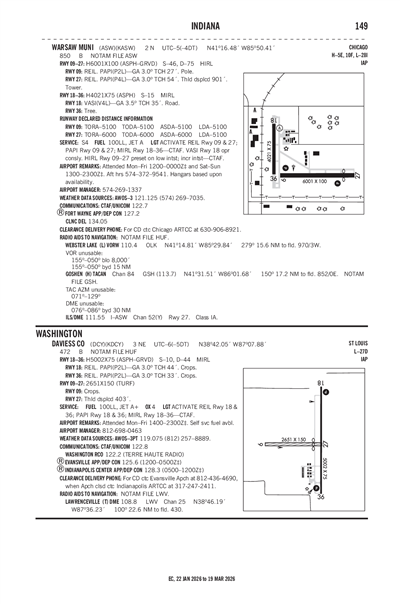

WARSAW MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KASW
ICAO KASWLocal ASW
WARSAW MUNI
PublicPUB

2 miles N of WARSAW, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 16' 29"N 85° 50' 24"W
Elevation
850' MSL
Pattern Alt
1850' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A, 100LL
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KASW MVFR
8:55 PM EST
Haze
Overcast 2,900'
5sm
38°F
33°F
30.14"Hg
050° 5kts
AO2 T00320005
METAR KASW 040155Z AUTO 05005KT 5SM HZ OVC029 03/00 A3014 RMK AO2 T00320005
+ Add Your Business

KASW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 121.125
(574) 269-7035

Common

CTAF 122.7
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 18/36 - CTAF. VASI RWY 18 OPR CONSLY. HIRL RWY 09/27 PRESET TO LOW INTST; INCR INTST - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 134.05

Approach

FORT WAYNE APPROACH 127.2

Departure

FORT WAYNE DEPARTURE 127.2

Terminal Area Forecast

KSBN (34nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 9:00 PM EST
Haze
Overcast 3,500'
Broken 2,500'
Scattered 1,700'
5sm
350° 3kts
MVFR
9:00 PM EST - 1:00 AM EST
Mist
Overcast 2,500'
5sm
VRB° 3kts
MVFR
Temporary 9:00 PM EST - 1:00 AM EST
Broken 1,500'
N/A
Calm
MVFR
1:00 AM EST - 1:00 PM EST
Mist
Broken 1,000'
5sm
060° 5kts
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Overcast 400'
2sm
Calm
IFR
1:00 PM EST - 7:00 PM EST
Mist
Overcast 700'
4sm
120° 7kts
TAF KSBN 032320Z 0400/0424 35003KT 5SM HZ SCT017 BKN025 OVC035
   FM040200 VRB03KT 5SM BR OVC025
   TEMPO 0402/0406 BKN015
   FM040600 06005KT 5SM BR BKN010
   TEMPO 0410/0414 2SM BR OVC004
   FM041800 12007KT 4SM BR OVC007
KASW
EffectiveExpiresCategoryNOTAM
Domestic
1/30/26
0043Z
4/30/26
2359Z
!ASW 01/007 ASW OBST TOWER LGT (ASN 2018-AGL-7774-OE) 412002N0855457W (4.9NM NW ASW) 1064FT (215FT AGL) U/S 2601300043-2604302359
1/22/26
1718Z
3/22/26
2359Z
!ASW 01/004 ASW OBST TOWER LGT (ASR 1315338) 412011.10N0855400.90W (4.59NM NNW ASW) 1148FT (300FT AGL) U/S 2601221718-2603222359
12/8/25
0900Z
2/27/26
2359Z
!ASW 12/002 ASW OBST TOWER LGT (ASN 2018-AGL-7778-OE) 412044N0855451W (5.4NM NW ASW) 1066FT (225FT AGL) U/S 2512080900-2602272359
10/2/25
0801Z
!ASW 10/002 ASW NAV ILS RWY 27 GP U/S 2510020801-2610022000EST
No
MON-FRI 0700-1900
SAT-SUN 0800-1800
AFT HR - 574-372-9541
WARSAW BOAC
3000 AIRPORT DR
WARSAW, IN 46582
Phone: 574-269-1337
NICHOLAS KING
3000 AIRPORT DR
WARSAW, IN 46582
Phone: 574-269-1337
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
ASW
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 18/36 - CTAF. VASI RWY 18 OPR CONSLY. HIRL RWY 09/27 PRESET TO LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental

Runway 09/27

6001 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

46,000lbs
75,000lbs
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 41° 16' 21"N 41° 16' 22"N
Longitude 85° 50' 46"W 85° 49' 28"W
Elevation 837' 850'
Threshold Crossing Height 27 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 18/36

4021 ft. x 75 ft.
ASPH
Fair
NONE
MED

15,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 41° 17' 00"N 41° 16' 20"N
Longitude 85° 50' 50"W 85° 50' 49"W
Elevation 840' 836'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3.5° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A17-M1AFT HR - 574-372-9541
A56-27CLOSEST ESTD INTCP OF TALLEST TWR.
A57-27APCH SLOPE 34:1 TO DTHR.
A58-276 FT FENCE 1045 FT FM RWY END; 15 FT ROAD 1070 FT FM RWY END.
A75-HPPR - AMGR.
A81-APTACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 18/36 - CTAF. VASI RWY 18 OPR CONSLY. HIRL RWY 09/27 PRESET TO LOW INTST; INCR INTST - CTAF.
WARSAW MUNI (ICAO: KASW, IATA: ASW) is a public airport located in WARSAW, IN, US.
