iFlightPlanner



...

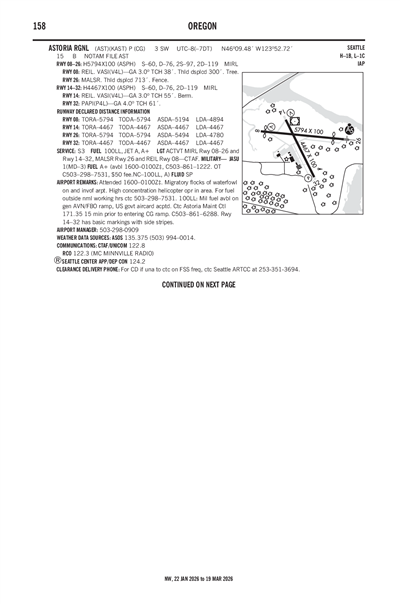

ASTORIA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAST
ASTORIA RGNL
PublicPUB

3 miles SW of ASTORIA, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 09' 29"N 123° 52' 43"W
15' MSL
1015' MSL
15E
JET A, 100LL
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
4/17/25-5/15/25
KAST MVFR
2:55 PM PST
Light Rain and Mist
Overcast 3,200'
Broken 2,300'
Scattered 1,600'
5sm
46°F
44°F
30.29"Hg
220° 8kts
AO2 SLP256 P0004 T00780067
METAR KAST 082255Z AUTO 22008KT 5SM -RA BR SCT016 BKN023 OVC032 08/07 A3029 RMK AO2 SLP256 P0004 T00780067
+ Add Your Business

KAST FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.375
503-994-0014

Terminal Area Forecast

KAST
Thu, 1/8 9:48 AM PST
Thu, 1/8 10:00 AM PST - Fri, 1/9 10:00 AM PST
VFR
10:00 AM PST - 10:00 PM PST
Light Showers and Rain
Broken 3,500'
Scattered 2,500'
6sm
250° 9kts
MVFR
Temporary 1:00 PM PST - 5:00 PM PST
Light Showers and Rain
Overcast 3,500'
Broken 2,500'
6sm
Calm
VFR
10:00 PM PST - 10:00 AM PST
Showers in vicinity
Broken 4,500'
Scattered 2,500'
6sm
180° 4kts
TAF KAST 081748Z 0818/0918 25009KT P6SM -SHRA SCT025 BKN035
   TEMPO 0821/0901 6SM -SHRA BKN025 OVC035
   FM090600 18004KT P6SM VCSH SCT025 BKN045
KAST
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1700Z
1/8/26
2000Z
!AST 01/002 AST NAV ILS RWY 26 U/S 2601081700-2601082000
1/6/26
1855Z
1/21/26
1755Z
!AST 01/003 AST OBST TOWER LGT (ASR 1217501) 461021.40N1233111.70W (14.8NM E AST) 504.6FT (259.8FT AGL) U/S 2601061855-2601211755
12/4/25
1635Z
1/27/26
0100Z
!AST 12/001 AST APRON COAST GUARD RAMP CLSD 2512041635-2601270100
10/31/25
0018Z
1/30/26
2359Z
!AST 10/019 AST NAV VOR GND REC CHECKPOINT U/S 2510310018-2601302359
FDC
12/19/25
1403Z
!FDC 5/1634 AST IAP ASTORIA RGNL, ASTORIA, OR.
RNAV (GPS) RWY 8, AMDT 1A...
LP MDA 440/HAT 426 ALL CATS.
CIRCLING CAT B MDA 820/HAA 806.
CIRCLING RWY 14, 32 NA AT NIGHT.
2512191403-2712191403EST
12/19/25
1400Z
!FDC 5/1630 AST IAP ASTORIA RGNL, ASTORIA, OR.
VOR RWY 8, AMDT 12C...
S-8, CIRCLING: CAT A MDA 1140,1 1/4 VIS, HAT/HAA 1126, CAT B MDA 1140, VIS 1 1/2 HAT/HAA 1126.
MISSED APPROACH: CLIMB TO 1400 THEN CLIMBING LEFT TURN TO 4800 IN AST VOR/DME HOLDING PATTERN, CONTINUE CLIMB-IN-HOLD TO 4800.
PROCEDURE NA CAT C AND D.
MAX HOLDING 175 KIAS.
CIRCLING RWY 14, 32 NA AT NIGHT.
VDP 3.74 DME AST VOR/DME.
2512191400-2712191400EST
12/19/25
1356Z
!FDC 5/1629 AST IAP ASTORIA RGNL, ASTORIA, OR.
RNAV (GPS) RWY 26, AMDT 1A...
CIRCLING RWY 14, 32 NA AT NIGHT.
2512191356-2712191800EST
No
0800-1700
FOR FUEL OUTSIDE NML WORKING HRS CTC FBO 503-298-7531.
PORT OF ASTORIA
422 GATEWAY AVENUE, SUITE 100, SUITE 103
ASTORIA, OR 97103
Phone: 503-741-3300
MATT MCGRATH
422 GATEWAY AVENUE, SUITE 100
ASTORIA, OR 97103
Phone: 503-298-0909
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
AST
--
ACTVT MIRL RWY 08/26 & RY 14/32, MALSR RWY 26 AND REIL RWY 08 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
None
None
Air Freight
Cargo Handling

Runway 08/26

5794 ft. x 100 ft.

ASPH
NONE
MED

60,000lbs
76,000lbs
119,000lbs
--
  Runway 08 Runway 26
True Heading 95°275°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 46° 09' 35"N 46° 09' 30"N
Longitude 123° 53' 23"W 123° 52' 01"W
Elevation 12' 11'
Threshold Crossing Height 38 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

4467 ft. x 100 ft.
ASPH
Excellent
NONE
MED

60,000lbs
76,000lbs
119,000lbs
--
  Runway 14 Runway 32
True Heading 154°334°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 46° 09' 43"N 46° 09' 04"N
Longitude 123° 52' 58"W 123° 52' 30"W
Elevation 12' 14'
Threshold Crossing Height 55 ft. AGL 61 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10SERVICE FUEL: PORT OF ASTORIA, AVBL 1600-0100Z-, C503-861-1222. OT C503-298-7531, $50 FEE
A110-2MIGRATORY FLOCKS OF WATERFOWL ON & INVOF ARPT.
A110-3HIGH CONCENTRATION HEL OPNS IN AREA.
A110-6(E94) SAWRS.
A110-7RWY 14/32 HAS BASIC MARKINGS WITH SIDE STRIPES.
A110-8FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A110-9USCG ASTORIA AIR 345.0.
A17FOR FUEL OUTSIDE NML WORKING HRS CTC FBO 503-298-7531.
A57-14APCH SLOPE 21:1 TO DSPLCD THR.
A57-26+4 FT LEVEE DIST 350 FT 500 FT R, +50:1 BASED ON DSPLCD THR.
A58-145 FT LEVEE 150 FT FROM RY END 250 FT L TO 250 FT R.
A70-FUEL-100LL MIN 24 HR PPR EXC CG MSN. LTD FUEL AVBL FOR CG MSNS AND MIL EMERG. MIL FUEL AVBL ON GEN AVN/FBO RAMP, US GOVT AIRCARD ACPTD. CTC ASTORIA MAINT CTL 171.35 15 MIN PRIOR TO ENTERING CG RAMP. C503-861-6288.
A81-APTACTVT MIRL RWY 08/26 & RY 14/32, MALSR RWY 26 AND REIL RWY 08 - CTAF.
E111ESTABD PRIOR TO 1959.
ASTORIA RGNL (ICAO: KAST, IATA: AST) is a public airport located in ASTORIA, OR.
