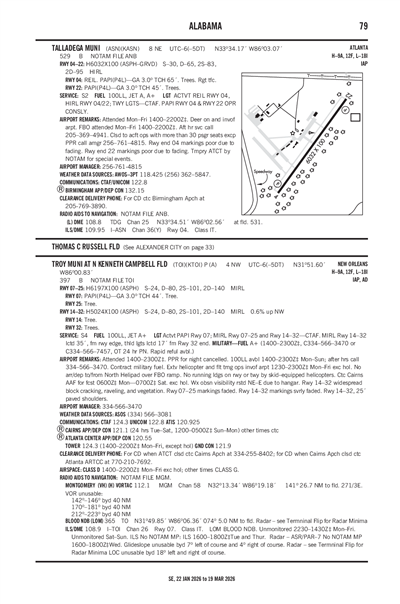

TALLADEGA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KASN
ICAO KASNIATA ASNLocal ASN
TALLADEGA MUNI
PublicPUB

8 miles NE of TALLADEGA, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 34' 10"N 86° 03' 04"W
Elevation
529' MSL
Pattern Alt
1529' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A, JET A (FSII), 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KASN IFR
3:55 AM CST
Mist
Few 3,500'
2.5sm
50°F
50°F
30.25"Hg
060° 3kts
AO2 VIS 2V2 1/2
METAR KASN 040955Z AUTO 06003KT 2 1/2SM BR FEW035 10/10 A3025 RMK AO2 VIS 2V2 1/2
+ Add Your Business

KASN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.425
(256) 362-5847

Common

CTAF 122.8
ACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
UNICOM 122.8

Approach

BIRMINGHAM APPROACH 132.15

Departure

BIRMINGHAM DEPARTURE 132.15

Terminal Area Forecast

KBHM (35nm)
Tue, 3/3 11:27 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 5:00 AM CST
Few 4,000'
6sm
150° 8kts
MVFR
5:00 AM CST - 7:00 AM CST
Broken 2,000'
6sm
VRB° 3kts
VFR
7:00 AM CST - 12:00 AM CST
Scattered 25,000'
6sm
180° 7kts
TAF KBHM 040527Z 0406/0506 15008KT P6SM FEW040
   FM041100 VRB03KT P6SM BKN020
   FM041300 18007KT P6SM SCT250
KASN
EffectiveExpiresCategoryNOTAM
Domestic
3/1/26
1125Z
4/15/26
0500Z
!ANB 03/010 ASN OBST TOWER LGT (ASR 1035748) 332745.40N0860725.50W (7.4NM SSW ASN) 1503.0FT (415.0FT AGL) U/S 2603011125-2604150500
2/21/26
0641Z
3/8/26
0541Z
!ANB 02/437 ASN OBST TOWER LGT (ASR 1212682) 333638.40N0860908.60W (5.6NM WNW ASN) 795.6FT (309.7FT AGL) U/S 2602210641-2603080541
10/1/25
1248Z
Runway!ANB 10/014 ASN RWY 04 RWY END ID LGT U/S 2510011248-2604012111EST
No
MON-FRI 0800-1600
FBO ATTENDED MON-FRI 0800-1600.
CITY OF TALLADEGA
255 SOUTH ST. WEST P.O. BOX 498
TALLADEGA, AL 35160
Phone: 256-362-8775
JIM BROCK
566 AIRPORT DRIVE
LINCOLN, AL 35096
Phone: 256-761-4815
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 04/22

6032 ft. x 100 ft.
ASPH
Fair
GRVD
HIGH

30,000lbs
65,000lbs
95,000lbs
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition POOR POOR
Latitude 33° 33' 46"N 33° 34' 35"N
Longitude 86° 03' 25"W 86° 02' 44"W
Elevation 509' 528'
Threshold Crossing Height 65 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes No
A110-1TMPRY ATCT BY NOTAM FOR SPECIAL EVENTS.
A110-2DEER ON & INVOF ARPT.
A110-3AFT HR SVC CALL 205-369-4941.
A110-4FOR CD CTC BIRMINGHAM APCH AT 205-769-3890.
A17-H1FBO ATTENDED MON-FRI 0800-1600.
A26CLSD TO ACFT OPS WITH MORE THAN 30 PSGR SEATS EXCP PPR CALL AMGR (256) 761-4815.
A42-04_CONDMARKINGS POOR DUE TO FADING.
A42-22_CONDMARKINGS POOR DUE TO FADING.
A81-APTACTVT REIL RWY 04; HIRL RWY 04/22; TWY LGTS - CTAF. PAPI RWY 04 & 22 OPR CONSLY.
TALLADEGA MUNI (ICAO: KASN, IATA: ASN) is a public airport located in TALLADEGA, AL, US.
