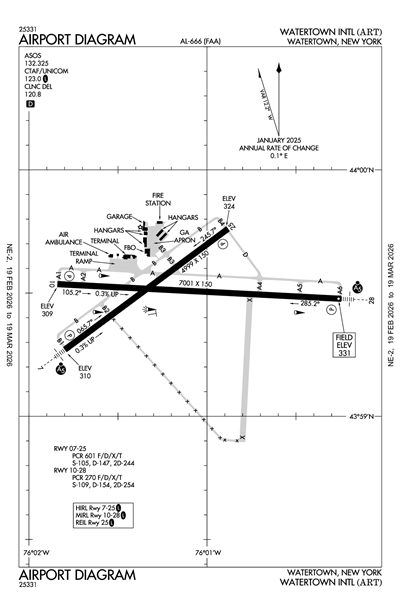

WATERTOWN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KART
ICAO KARTIATA ARTLocal ART
WATERTOWN INTL
PublicPUB

5 miles W of WATERTOWN, NY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 59' 31"N 76° 01' 10"W
Elevation
331' MSL
Pattern Alt
1331' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
BURLINGTON (BTV)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KART MVFR
9:56 PM EST
Overcast 1,200'
8sm
32°F
31°F
30.16"Hg
Calm
AO2 SLP219 P0001 60005 T00001006 53004
METAR KART 040256Z AUTO 00000KT 8SM OVC012 00/M01 A3016 RMK AO2 SLP219 P0001 60005 T00001006 53004
+ Add Your Business

KART FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 132.325
(315) 639-4002

Common

CTAF 123.0
ACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.; GND VEHICLES MNT CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 120.8

Approach

WHEELER-SACK APPROACH 124.875

Departure

WHEELER-SACK DEPARTURE 124.875

Flight Service

Flight Service 122.2
(BTV)

Terminal Area Forecast

KART
Tue, 3/3 6:26 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
Temporary 7:00 PM EST - 9:00 PM EST
Light Showers and Rain
Overcast 1,500'
4sm
Calm
MVFR
7:00 PM EST - 11:00 PM EST
Mist
Broken 2,000'
6sm
VRB° 3kts
MVFR
11:00 PM EST - 2:00 AM EST
Mist
Overcast 1,400'
4sm
VRB° 3kts
IFR
2:00 AM EST - 7:00 AM EST
Mist
Overcast 600'
1sm
Calm
VFR
7:00 AM EST - 12:00 PM EST
Few 21,000'
6sm
230° 4kts
VFR
12:00 PM EST - 7:00 PM EST
Scattered 2,000'
6sm
230° 6kts
TAF KART 032326Z 0400/0424 VRB03KT 6SM BR BKN020
   TEMPO 0400/0402 4SM -SHRA OVC015
   FM040400 VRB03KT 4SM BR OVC014
   FM040700 00000KT 1SM BR OVC006
   FM041200 23004KT P6SM FEW210
   FM041700 23006KT P6SM SCT020
KART
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0044Z
2/26/26
0044Z
!ART 02/409 ART TWY ALL FICON 1/8IN DRY SN BA MEDIUM TO POOR OBS AT 2602250044. 2602250044-2602260044
2/25/26
0041Z
2/26/26
0041Z
!ART 02/408 ART TWY A, A1, A6 FICON PATCHY 1/8IN DRY SN BA MEDIUM TO POOR OBS AT 2602250041. 2602250041-2602260041
2/25/26
0040Z
2/26/26
0040Z
!ART 02/407 ART APRON GA RAMP FICON 1/4IN DRY SN BA POOR OBS AT 2602250040. 2602250040-2602260040
2/25/26
0039Z
2/26/26
0039Z
!ART 02/406 ART APRON TERMINAL RAMP FICON PATCHY 1/8IN DRY SN BA MEDIUM TO POOR OBS AT 2602250039. 2602250039-2602260039
2/25/26
0039Z
!ART 02/405 ART NAV ILS RWY 07 DME U/S 2602250039-2603312359EST
2/25/26
0038Z
2/26/26
0038Z
Runway!ART 02/404 ART RWY 28 FICON 5/5/5 20 PCT 1/8IN WET SN AND 80 PCT WET 12IN SNOWBANKS OBS AT 2602250038. 2602250038-2602260038
2/24/26
2338Z
2/25/26
2338Z
Runway!ART 02/399 ART RWY 25 FICON 3/3/3 100 PCT 1/2IN DRY SN 12IN SNOWBANKS OBS AT 2602242338. 2602242338-2602252338
2/21/26
1813Z
6/21/26
1813Z
!ART 02/346 ART OBST TOWER LGT (ASR 1224694) 441213.70N0755304.90W (14.1NM NNE ART) 696.9FT (259.8FT AGL) U/S 2602211813-2606211813
2/17/26
0951Z
3/18/26
2359Z
!ART 02/290 ART OBST TOWER LGT (ASR 1004665) 433628.00N0755822.00W (23.4NM S ART) 1341.5FT (206.7FT AGL) U/S 2602170951-2603182359
2/17/26
0646Z
!ART 02/285 ART OBST TOWER LGT (ASR 1057920) 435953.30N0754647.20W (10.3NM E ART) 1018.7FT (216.9FT AGL) U/S 2602170646-2603191700EST
2/13/26
2330Z
2/27/26
2359Z
!ART 02/268 ART OBST TOWER LGT (ASR 1230695) 435436.80N0755945.80W (5.0NM SSE ART) 710.6FT (254.9FT AGL) U/S 2602132330-2602272359
2/10/26
1952Z
3/3/26
2359Z
!ART 02/177 ART SVC AUTOMATED WX BCST SYSTEM NOW 315-918-7016 2602101952-2603032359
2/4/26
1757Z
3/21/26
1755Z
!ART 02/071 ART OBST TOWER LGT (ASR UNKNOWN) 440941.77N0754536.77W (15.17NM NM ART) 657FT (184FT AGL) U/S 2602041757-2603211755
1/29/26
0031Z
!ART 01/617 ART OBST TOWER LGT (ASR 1019628) 435951.60N0753526.80W (18.3NM E ART) 1072.8FT (194.9FT AGL) U/S 2601290031-2602271700EST
12/22/25
0213Z
4/30/26
2359Z
!ART 12/465 ART OBST TOWER LGT (ASR 1002926) 435740.20N0754827.70W (9.2NM ESE ART) 1358.9FT (319.9FT AGL) U/S 2512220213-2604302359
12/10/25
1619Z
6/10/26
2359Z
!ART 12/257 ART OBST TOWER LGT (ASR 1209408) 435854.00N0755641.00W (3.2NM E ART) 625.7FT (199.8FT AGL) U/S 2512101619-2606102359
12/8/25
1739Z
3/8/26
2359Z
!ART 12/198 ART OBST TOWER LGT (ASR 1042270) 435723.00N0755044.00W (7.7NM ESE ART) 1315.6FT (370.7FT AGL) U/S 2512081739-2603082359
12/8/25
1738Z
3/8/26
2359Z
!ART 12/197 ART OBST TOWER LGT (ASR 1009788) 435644.00N0755653.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081738-2603082359
12/8/25
1738Z
3/3/26
2359Z
!ART 12/196 ART OBST TOWER LGT (ASR 1006968) 435641.00N0755655.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081738-2603032359
12/8/25
1737Z
3/8/26
2359Z
!ART 12/195 ART OBST TOWER LGT (ASR 1009787) 435647.00N0755651.00W (4.1NM SE ART) 716.5FT (267.1FT AGL) U/S 2512081737-2603082359
FDC
8/12/25
1759Z
!FDC 5/6103 ART IAP WATERTOWN INTL, WATERTOWN, NY.
ILS OR LOC RWY 7, AMDT 9...
DISREGARD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 900.
2508121759-2708121759EST
No
OCT-APR 0600-1800
MAY-SEP 0500-1900
COUNTY OF JEFFERSON
195 ARSENAL ST
WATERTOWN, NY 13601
Phone: 315-785-3075
GRANT W. SUSSEY
22529 AIRPORT DR
DEXTER, NY 13634
Phone: 315-786-6002
BURLINGTON FSS (BTV)
Toll Free: 1-800-WX-BRIEF
ART
--
ACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 07/25

4999 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

105,000lbs
147,000lbs
244,000lbs
--
  Runway 07 Runway 25
True Heading 53°233°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 43° 59' 16"N 43° 59' 46"N
Longitude 76° 01' 48"W 76° 00' 53"W
Elevation 310' 324'
Threshold Crossing Height 52 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

7001 ft. x 150 ft.
ASPH
Good
GRVD
MED

109,000lbs
154,000lbs
254,000lbs
--
  Runway 10 Runway 28
True Heading 93°273°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition FAIR FAIR
Latitude 43° 59' 32"N 43° 59' 29"N
Longitude 76° 01' 50"W 76° 00' 15"W
Elevation 309' 331'
Threshold Crossing Height 47 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-10CTN: NGT VISION DEVICE OPS CONDUCTED IN TFC PAT AREA.
A110-15RC MODEL ACT 4 NM N & 9 NM SSW BLW 400 FT.
A110-16TWY LGTS NOT VSB USING NGT VISION GOGGLES.
A110-17APN PRKG WT BRG CPTY: 68/F/C/X/T; S-120, D-239, DT-385.
A110-19WX CAMERA AVBL AT WATERTOWNAIRPORT.COM.
A110-22FOR CD IF UNA TO CTC WHEELER SACK ATCT ON FREQ, CTC WHEELER SACK ATCT AT 315-772-7105.
A110-23CTN: RAPID HOT REFUELING ON TRML & GA RAMP.
A110-24GND VEHICLES MNT CTAF.
A110-25US CUSTOMS PRKG AT GA RAMP UNLESS ADZD BY CUSTOMS OR FBO.
A110-26TKS, TYPE I & IV FLUIDS AVBL - CTC FBO.
A110-2724HR PPR FOR TRNSPN OF XPLOS - CTC AMGR.
A110-28MEDEVAC ON ARPT. GIVEAWAY TO ACFT OR HEL USING MEDEVAC CS.
A110-29WHEELED HEL REQSTD TO GND TAXI WHEN XNG GA RAMP.
A110-3MIL HEL T ON & INVOF ARPT.
A110-4PPR FOR USE OF UNIMPROVED SFCS - AMGR.
A110-6TKS DE/ANTI ICING AVBL - FBO 315-786-6001.
A110-8RWY/TWY COND UNMNTD AFT HRS.
A110-9PAEW ALL SFCS APR-OCT. SN REMOVAL EQUIP OCT-APR.
A24LNDG FEE OVR 6000 LB.
A26PPR 2 HRS FOR UNSKD OPS WITH MORE THAN 30 PAX SEATS CALL 315-816-2331 OR 315-486-3302. INDEX B COVERAGE IS AVBL O/R.
A30-07/25RWY 25 CALM WIND RWY.
A39-07/25PCR VALUE: 601/F/D/X/T
A39-10/28PCR VALUE: 270/F/D/X/T
A70-100LLFUEL AFT HRS: 315-816-2334 OR 315-466-6741.
A81-APTACTVT MALSR RWY 07 & 28; REIL RWY 25; HIRL RWY 07/25; MIRL RWY 10/28; TWY LGTS - CTAF. PAPI RWYS 7, 10, 25 & 28 OPR CONSLY.
E111FILED FOR RECORD PURPOSES ONLY.
E792 HR PPR - US CUSTOMS 315-482-2261.
WATERTOWN INTL (ICAO: KART, IATA: ART) is a public airport located in WATERTOWN, NY, US.
