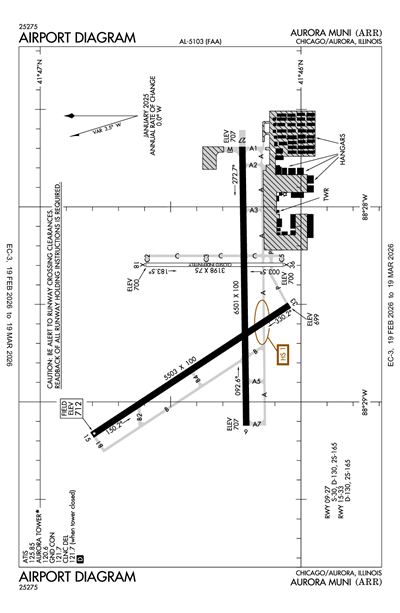

AURORA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KARR
ICAO KARRIATA AUZLocal ARR
AURORA MUNI
PublicPUB

38 miles W of CHICAGO/AURORA, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 46' 19"N 88° 28' 32"W
Elevation
712' MSL
Pattern Alt
1712' MSL
Mag Variation
3°W
Declination
1°W
Fuel
JET A-1, 100
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KARR IFR
7:52 PM CST
Mist
Overcast 4,000'
Broken 800'
6sm
38°F
35°F
30.14"Hg
070° 7kts
AO2 SLP213 T00330017
METAR KARR 040152Z 07007KT 6SM BR BKN008 OVC040 03/02 A3014 RMK AO2 SLP213 T00330017
+ Add Your Business

KARR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.85
ASOS (630) 466-5649

Common

CTAF 120.6
ACTVT MALSR RWY 09, 33; REIL RWY 18, 36,15, 27; TWY LGTS - CTAF. WHEN ATCT CLSD HIRL RWY 15/33, 09/27; MIRL RWY 18/36 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.

Clearance

Clearance Delivery 121.7
WHEN AURORA TWR CLSD

Ground

AURORA GROUND 121.7
0700-2100

Tower

AURORA TOWER 120.6
0700-2100

Approach

CHICAGO APPROACH 133.5

Departure

CHICAGO DEPARTURE 133.5

Terminal Area Forecast

KDPA (13nm)
Tue, 3/3 7:28 PM CST
Tue, 3/3 7:00 PM CST - Wed, 3/4 6:00 PM CST
IFR
Temporary 7:00 PM CST - 11:00 PM CST
Overcast 900'
N/A
Calm
MVFR
7:00 PM CST - 3:00 AM CST
Mist
Overcast 1,000'
Scattered 900'
6sm
060° 7kts
MVFR
3:00 AM CST - 10:00 AM CST
Mist
Broken 1,000'
Scattered 400'
3sm
040° 5kts
IFR
Temporary 4:00 AM CST - 8:00 AM CST
Mist
Broken 600'
Scattered 300'
2sm
Calm
MVFR
10:00 AM CST - 12:00 PM CST
Mist
Broken 2,000'
Scattered 600'
6sm
090° 10kts
MVFR
12:00 PM CST - 4:00 PM CST
Overcast 1,500'
Scattered 1,000'
6sm
090° 9kts
MVFR
4:00 PM CST - 6:00 PM CST
Light Showers and Rain and Mist
Overcast 1,000'
5sm
060° 9kts
TAF KDPA 040128Z 0401/0424 06007KT 6SM BR SCT009 OVC010
   TEMPO 0401/0405 OVC009
   FM040900 04005KT 3SM BR SCT004 BKN010
   TEMPO 0410/0414 2SM BR SCT003 BKN006
   FM041600 09010KT 6SM BR SCT006 BKN020
   FM041800 09009KT P6SM SCT010 OVC015
   FM042200 06009KT 5SM -SHRA BR OVC010
KARR
EffectiveExpiresCategoryNOTAM
Domestic
12/30/25
1213Z
12/31/26
2359Z
Runway!ARR 12/034 ARR RWY 36 VASI U/S 2512301213-2612312359
12/30/25
1209Z
12/31/26
2359Z
Runway!ARR 12/033 ARR RWY 18 PAPI UNUSABLE 2512301209-2612312359
12/26/25
1456Z
6/30/26
2359Z
Runway!ARR 12/032 ARR RWY 09 PAPI U/S 2512261456-2606302359
12/26/25
1455Z
6/30/26
2359Z
!ARR 12/031 ARR TWY C SOUTH OF TWY P CLSD 2512261455-2606302359
12/26/25
1455Z
6/30/26
2359Z
!ARR 12/030 ARR TWY C NORTH OF RWY 09/27 CLSD 2512261455-2606302359
12/26/25
1454Z
6/30/26
2359Z
Runway!ARR 12/029 ARR RWY 18/36 CLSD 2512261454-2606302359
12/5/25
1834Z
3/5/26
1835Z
!ARR 12/012 ARR APRON EAST RAMP FICON 40FT SNOWBANKS OBS AT 8703043310. 2512051834-2603051835
FDC
12/23/25
2150Z
!FDC 5/2810 ARR ODP AURORA MUNI, CHICAGO/AURORA, IL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
DELETE TAKEOFF OBSTACLE NOTES: RWY 18, 36. ALL OTHER DATA REMAINS AS PUBLISHED. 2512232150-2712232150EST
12/23/25
2123Z
!FDC 5/2786 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
RNAV (GPS) RWY 33, AMDT 2...
DELETE NOTE: CIRCLING RWY 18 NA AT NIGHT.
2512232123-2712232123EST
12/23/25
2118Z
!FDC 5/2785 ARR SID AURORA MUNI, CHICAGO/AURORA, IL.
ADELL SEVEN DEPARTURE (RNAV)...
BLOKR SEVEN DEPARTURE (RNAV)...
CARYN SEVEN DEPARTURE (RNAV)...
DARCY SEVEN DEPARTURE (RNAV)...
ELANR EIGHT DEPARTURE (RNAV)...
OBENE THREE DEPARTURE (RNAV)...
RWY 18/36 PROCEDURES NA. RWY 18/36 PERMANENTLY CLSD. 2512232118-2712232118EST
10/2/25
0947Z
!FDC 5/4702 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
ILS OR LOC RWY 9, AMDT 4A...
RNAV (GPS) RWY 15, AMDT 1A...
RNAV (GPS) RWY 33, AMDT 2...
RNAV (GPS) RWY 9, AMDT 2A...
CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.58 NM SE OF ARR AIRPORT (2024-AGL-4557-OE PERMANENT).
2510020947-2606140946EST
6/14/24
1959Z
!FDC 4/9139 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
RNAV (GPS) RWY 27, AMDT 1C...
LNAV/VNAV DA 1058/HAT 351 ALL CATS. LNAV MDA 1160/HAT 453 ALL CATS, VIS CAT C/D 1 3/8. CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.02 NM SE OF RWY 27 (2024-AGL-4557-OE PERMANENT).
2406141959-2606141959EST
6/14/24
1949Z
!FDC 4/9137 ARR IAP AURORA MUNI, CHICAGO/AURORA, IL.
LOC RWY 33, AMDT 1A...
EPABE FIX MINIMUMS (DUAL VOR RECEIVERS OR DME REQUIRED) CIRCLING CAT A/B MDA 1280/HAA 568. WATER TOWER 918 MSL 1.44 NM SE OF RWY 33 (2024-AGL-4557-OE PERMANENT).
2406141949-2606141949EST
Yes
0600-2400
CITY OF AURORA
44 E. DOWNER PLACE
AURORA, IL 60507
Phone: (630) 256-3120
STEVE ANDRAS
43W 636 US30
SUGAR GROVE, IL 60554
Phone: (630) 256-3120
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
ARR
--
ACTVT MALSR RWY 09, 33; REIL RWY 18, 36,15, 27; TWY LGTS - CTAF. WHEN ATCT CLSD HIRL RWY 15/33, 09/27; MIRL RWY 18/36 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

6501 ft. x 100 ft.
CONC
Good
GRVD
HIGH

30,000lbs
130,000lbs
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 46' 13"N 41° 46' 14"N
Longitude 88° 29' 07"W 88° 27' 42"W
Elevation 707' 707'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 15/33

5503 ft. x 100 ft.
CONC
Good
GRVD
HIGH

--
130,000lbs
--
--
  Runway 15 Runway 33
True Heading 147°327°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 46' 48"N 41° 46' 03"N
Longitude 88° 29' 10"W 88° 28' 30"W
Elevation 712' 698'
Threshold Crossing Height 34 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 18/36

3198 ft. x 75 ft.
ASPH
Poor
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 41° 46' 36"N 41° 46' 04"N
Longitude 88° 28' 18"W 88° 28' 18"W
Elevation 700' 700'
Threshold Crossing Height 30 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A100800 FT FOR PISTON ACFT, & 1500 FTFOR FOR JET ACFT.
A110-1SEASONAL CROPS IN PART 77 SURFACES RUNWAY 9/27 & 15/33
A33-18/36_SURFSEVERAL LARGE CRACKS & VEGETATIVE GROWTH.
A58-18RISING GROUND +6 FEET.
A81-APTACTVT MALSR RWY 09, 33; REIL RWY 18, 36,15, 27; TWY LGTS - CTAF. WHEN ATCT CLSD HIRL RWY 15/33, 09/27; MIRL RWY 18/36 PRESET LOW INTST, TO INCR INTST & ACTVT - CTAF.
A82FBO SVCS ON FREQ 122.95 AND 123.50.
AURORA MUNI (ICAO: KARR, IATA: ARR) is a public airport located in CHICAGO/AURORA, IL, US.
