iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KARA
ACADIANA RGNL
PublicPUB

4 miles NW of NEW IBERIA, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 02' 16"N 91° 53' 02"W
24' MSL
1024' MSL
00E
JET A, 100LL
DE RIDDER (DRI)
HOUSTON
HOUSTON (ZHU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KARA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.0

ASOS

ASOS
337-365-0128
 133.325

Clearance Delivery

CD/P
 121.7

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 125.0

FAA A/FD Pages

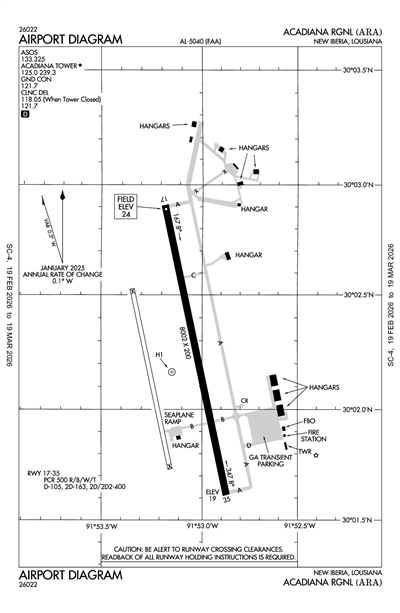

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KARA
Domestic
1/14/251521Z !ARA 01/008 ARA OBST TOWER LGT (ASR 1271286) 300052.20N0915842.40W (5.2NM WSW ARA) 271.0FT (257.9FT AGL) U/S 2501141521-2502281521
1/10/251615Z !ARA 01/007 ARA OBST TOWER LGT (ASR 1022494) 300602.00N0915751.00W (5.6NM NW ARA) 253.9FT (226.0FT AGL) U/S 2501101615-2501250500
1/9/250455Z !ARA 01/005 ARA OBST TOWER LGT (ASR 1021732) 300455.90N0914417.10W (8.1NM ENE ARA) 432.1FT (419.0FT AGL) U/S 2501090455-2504080500
1/7/251157Z !ARA 01/002 ARA OBST TOWER LGT (ASR 1246578) 301252.20N0914241.30W (14.0NM NE ARA) 269.7FT (256.9FT AGL) U/S 2501071157-2504070500
1/5/251925Z !ARA 01/001 ARA OBST TOWER LGT (ASR 1211456) 300054.10N0914922.20W (3.5NM ESE ARA) 276.9FT (257.9FT AGL) U/S 2501051925-2505051925
12/23/240930Z !ARA 12/008 ARA OBST TOWER LGT (ASN 2023-ASW-12382-OE) 295930N0914741W (5.4NM ESE ARA) 233FT (215FT AGL) U/S 2412230930-2502060929
11/21/240837Z !ARA 11/013 ARA OBST TOWER LGT (ASR UNKNOWN) 300223.00N0915946.00W (5NM W ARA) UNKNOWN (604FT AGL) U/S 2411210837-2501302000
FDC
12/28/241200Z !FDC 4/1627 ARA IAP ACADIANA RGNL, NEW IBERIA, LA.
RNAV (GPS) RWY 17, AMDT 1B...
VOR OR TACAN RWY 17, AMDT 2...
CIRCLING CAT B MDA 520/HAA 496.
TEMPORARY CRANE, 169 MSL, 2.31 NM SOUTH OF KARA AIRPORT (2024-ASW-17024-OE).
2412281200-2502152023EST
12/28/241200Z !FDC 4/1626 ARA IAP ACADIANA RGNL, NEW IBERIA, LA.
RNAV (GPS) RWY 35, AMDT 1A...
LNAV MDA 480/HAT 459 ALL CATS. VIS CATS A/B 3/4, CATS C/D 7/8.
CIRCLING CAT A MDA 480/HAA 456, CAT B MDA 520/HAA 496.
VDP 1.28 NM TO RW35.
FOR INOP ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 7/8 SM AND LNAV CATS A/B VISIBILITY TO 1 SM AND CATS C/D VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE, 169 MSL, 1.65NM SOUTH OF RWY 35 (2024-ASW-17024-OE).
2412281200-2502152023EST
12/28/241200Z !FDC 4/1625 ARA IAP ACADIANA RGNL, NEW IBERIA, LA.
ILS OR LOC RWY 35, AMDT 2A...
S-LOC 35 MDA 480/HAT 459 ALL CATS. VIS CATS A/B 3/4, CATS C/D/E 7/8.
CIRCLING CAT A MDA 480/HAA 456, CAT B MDA 520/HAA 496.
VDP AT 2.86 DME; DISTANCE VDP TO THLD 1.28 NM.
FOR INOP ALS, INCREASE S-ILS 35 CAT E VISIBILITY TO 3/4 SM AND S-LOC 35 CATS A/B VISIBILITY TO 1 SM AND CATS C/D/E VISIBILITY TO 1 3/8 SM.
TEMPORARY CRANE, 169 MSL, 1.65 NM SOUTH OF RWY 35 (2024-ASW-17024-OE).
2412281200-2502152023EST
Yes
0700-2100
IBERIA PARISH GOVERMENT
300 IBERIA ST
NEW IBERIA, LA 70560
Phone: 337-365-8246
MAURICE SONGY
1404 HANGAR DR
NEW IBERIA, LA 70560
Phone: (337) 365-7202
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
ARA
--
DUSK-DAWN. WHEN ATCT CLSD HIRL RWY 17/35 PRESET LOW INTST. TO INCR INTST - CTAF. MALSR RWY 35 ON CONSLY. ACTVT SEAWAY EDGE LGTS RWY 17W/35W - 122.7 3 CLICKS ON 7 CLICKS OFF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
Low Pressure
None
Air Freight
Cargo Handling
Pilot Instruction

Runway 17/35

8002 ft. x 200 ft.
CONC
Good
GRVD
HIGH
39 /R/B/W/T
--
105,000lbs
163,000lbs
400,000lbs
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 02' 55"N 30° 01' 37"N
Longitude 91° 53' 12"W 91° 52' 52"W
Elevation 24' 19'
Threshold Crossing Height 51 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS MALSR
Centerline Lights
Runway End Identifier Lights No

Runway 17W/35W

5000 ft. x 150 ft.

WATER
NONE
MED

--
--
--
--
  Runway 17W Runway 35W
True Heading 168°348°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition
Latitude 30° 02' 32"N 30° 01' 44"N
Longitude 91° 53' 22"W 91° 53' 09"W
Elevation 20' 20'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

23 ft. x 23 ft.
DECK
Fair
NONE


--
--
--
--
  Runway H1 Runway
True Heading 89°269°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 02' 10"N N/A
Longitude 91° 53' 10"W N/A
Elevation 38' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ROTOR WING MOVEMENT AND LANDING AREA BETWEEN THE RY AND SEAWAY.
A110-2INTENSIVE HELO TRAINING.
A110-3SEAPLANE LNDG AREA (WATER CHNL) W OF & ADJ/PARL TO RWY.
A110-5BIRD ACTIVITY ON & INVOF ARPT.
A110-6COMPASS ROSE NOT AVBL.
A110-7FOR CD WHEN APCH CLSD CTC HOUSTON ARTCC AT 281-230-5622.
A110-8ARFF INDEX B BTN 0200Z AND 1030Z MON THRU FRI.
A110-9NO OVERNIGHT CAMPING.
ACADIANA RGNL (ICAO: KARA, IATA: ARA) is a public airport located in NEW IBERIA, LA.
