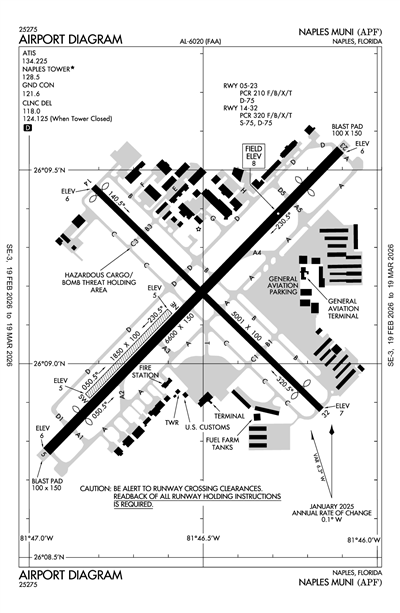

NAPLES MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAPF
ICAO KAPFIATA APFLocal APF
NAPLES MUNI
PublicPUB

2 miles NE of NAPLES, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
26° 09' 09"N 81° 46' 32"W
Elevation
8' MSL
Pattern Alt
1008' MSL
Mag Variation
6°W
Declination
3°W
Fuel
JET A, JET A (FSII), 100LL, UL94
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KAPF VFR
8:53 PM EST
Clear
10sm
74°F
69°F
30.17"Hg
080° 7kts
AO2 SLP216 T02330206 $
METAR KAPF 040153Z 08007KT 10SM CLR 23/21 A3017 RMK AO2 SLP216 T02330206 $
+ Add Your Business

KAPF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.225
(239) 643-5230
ASOS 134.225
(239) 643-9886

Common

CTAF 128.5
WHEN ATCT CLSD ACTVT REIL RWY 05, 14, 23 & 32; PAPI RWY 14 & 32; MIRL RWY 05/23 & 14/32 - CTAF.

Clearance

Clearance Delivery 118.0
Clearance Delivery 124.125
WHEN TWR CLSD

Ground

NAPLES GROUND 121.6
0600-2200

Tower

NAPLES TOWER 128.5
0600-2200

Arrival

PIKKR STAR 127.05
5000 FT & BLO
PIKKR STAR 134.425
6000 FT & ABV
SHFTY STAR 126.8
ZEILR STAR 134.425

Approach

FORT MYERS APPROACH 119.75
WEST
FORT MYERS APPROACH 124.125
EAST

Departure

CSHEL DP 119.75
RWY 23, 32
CSHEL DP 124.125
RWY 05, 14
FORT MYERS DEPARTURE 119.75
WEST
FORT MYERS DEPARTURE 124.125
EAST
NAPLES DP 119.75
RWY 23, 32
NAPLES DP 124.125
RWY 05, 14

Center

FORT MYERS CENTER 134.75
LOW, APCH/DEP SVC PRVDD BY MIAMI ARTCC ON FREQS 134.75/322.5 (FORT MYERS RCAG) WHEN FORT MYERS APCH CTL CLSD.

Flight Service

Flight Service 122.5
(MIA)

Terminal Area Forecast

KAPF
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Showers in vicinity
Scattered 6,000'
Scattered 3,500'
6sm
060° 6kts
VFR
9:00 PM EST - 10:00 AM EST
Few 6,000'
6sm
050° 6kts
VFR
10:00 AM EST - 7:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
090° 10kts
TAF KAPF 032320Z 0400/0424 06006KT P6SM VCSH SCT035 SCT060
   FM040200 05006KT P6SM FEW060
   FM041500 09010KT P6SM SCT030 SCT050
KAPF
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
1400Z
2/26/26
2200Z
!APF 02/055 APF AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF APF SFC-300FT AGL DLY 1400-2200 2602241400-2602262200
2/24/26
1300Z
2/26/26
2200Z
Runway!APF 02/058 APF RWY 14/32 CLSD DLY 1300-2200 2602241300-2602262200
2/18/26
1806Z
3/31/26
2300Z
!APF 02/048 APF OBST CRANE (ASN 2025-ASO-3901-OE) 260754N0814824W (2.1NM SW APF) 306FT (306FT AGL) FLAGGED 2602181806-2603312300
2/16/26
1840Z
3/31/26
2359Z
!APF 02/044 APF SVC PCL ALL U/S EXC MEDIUM INTST 2602161840-2603312359
2/16/26
1200Z
2/28/26
2300Z
!APF 02/037 APF OBST CRANE (ASN 2025-ASO-12561-OE) 260943N0814606W (0.7NM NE APF) 103FT (95FT AGL) FLAGGED 2602161200-2602282300
2/12/26
1456Z
3/31/26
2300Z
!APF 02/036 APF OBST CRANE (ASN 2025-ASO-3902-OE) 260753N0814832W (2.2NM SW APF) 306FT (306FT AGL) FLAGGED 2602121456-2603312300
2/6/26
1200Z
3/31/26
1730Z
!APF 02/025 APF OBST CRANE (ASN 2025-ASO-3903-OE) 260754N0814823W (2.1NM SW APF) 305FT (300FT AGL) FLAGGED 2602061200-2603311730
2/6/26
1131Z
4/30/27
2300Z
!APF 02/026 APF OBST CRANE (ASN 2025-ASO-19975-OE) 260859N0814753W (1.2NM W APF) 261FT (250FT AGL) FLAGGED AND LGTD 2602061131-2704302300
2/4/26
1716Z
5/5/26
0500Z
!APF 02/019 APF OBST TOWER LGT (ASR 1010596) 261931.00N0814620.00W (10.3NM NE APF) 316.9FT (304.8FT AGL) U/S 2602041716-2605050500
2/2/26
1437Z
3/2/26
2359Z
!APF 02/002 APF OBST TOWER LGT (ASR 1003293) 260918.00N0814017.00W (5.7NM E APF) 328.1FT (318.2FT AGL) U/S 2602021437-2603022359
12/26/25
0203Z
!APF 12/069 APF NAV DME U/S 2512260203-2603182000EST
12/25/25
1116Z
3/31/26
2359Z
Runway!APF 12/068 APF RWY 05/23 BTN TWY B AND RWY 14/32 SAFETY AREA NOT STD 2512251116-2603312359
12/4/25
0226Z
2/28/26
0200Z
!APF 12/011 APF OBST POLE (ASN UNKNOWN) 260916N0814613W (0.2NM E APF)
81FT (70FT AGL) NOT LGTD 2512040226-2602280200
11/3/25
0230Z
3/7/26
1130Z
!APF 11/001 APF AD AP MOBILE FUEL NOT AVBL DLY 0230-1130 2511030230-2603071130
10/2/25
1013Z
12/31/26
2300Z
Runway!APF 10/009 APF RWY 32 RTHL NOT STD 2510021013-2612312300
10/2/25
1012Z
12/31/26
2300Z
Runway!APF 10/008 APF RWY 14 RTHL NOT STD 2510021012-2612312300
2/12/25
1100Z
5/29/26
2200Z
!APF 02/012 APF OBST CRANE (ASN 2024-ASO-15988-OE) 260816N0814650W (0.9NM SSW APF) 246FT (239FT AGL) FLAGGED AND LGTD 2502121100-2605292200
FDC
1/7/26
0001Z
1/1/27
2359Z
!FDC 6/0043 APF IAP NAPLES MUNI, NAPLES, FL.
RNAV (GPS) Y RWY 5, ORIG...
RNAV (GPS) RWY 14, ORIG...
RNAV (GPS) Y RWY 23, ORIG...
RNAV (GPS) RWY 32, ORIG...
CIRCLING CATS A/B MDA 580FT/HAA 572FT.
TEMPORARY CRANE 261FT MSL 1-1/4NM SW OF AIRPORT.
(2025-ASO-19975-OE).
REASON: TEMPORARY CRANE 2025-ASO-19975-OE

2601070001-2701012359
10/2/25
0400Z
7/31/27
2359Z
!FDC 5/4618 APF IAP NAPLES MUNI, NAPLES, FL. RNAV (RNP) Z RWY 05
ORIG... RNP 0.15 DA 396FT/HAT 388FT, VIS 1-1/8SM ALL CATS.
RNP 0.30 DA 465FT/HAT 457FT, VIS 1-3/8SM ALL CATS.
TEMPORARY CRANE 155FT MSL 4662 FEET SW OF RWY 05.
(2025-ASO-14986-OE).
REASON: TEMPORARY CRANE THRU 7/2027. 2025-ASO-14986-OE
2510020400-2707312359
10/2/25
0400Z
7/31/27
2359Z
!FDC 5/4615 APF IAP NAPLES MUNI, NAPLES, FL. RNAV (GPS) Y RWY 05
ORIG...LNAV/VNAV DA 479FT/HAT 471FT, VIS 1-3/8SM ALL CATS.
TEMPORARY CRANE 155FT MSL 4662 FEET SW OF RWY 05.
(2025-ASO-14986-OE).REASON: TEMPORARY CRANE THRU 7/2027.
2025-ASO-14986-OE
2510020400-2707312359
10/2/25
0400Z
7/31/27
2359Z
!FDC 5/4614 APF IAP NAPLES MUNI, NAPLES, FL. RNAV (RNP) Z RWY 23
ORIG...RNP 0.30 DA 504FT/HAT 496FT, VIS 1-3/8SM ALL CATS.
TEMPORARY CRANE 193FT MSL 1746 FEET NE OF RWY 23. (2025-ASO-9007-OE).
REASON: TEMPORARY CRANE 2025-ASO-9007-OE
2510020400-2707312359
10/2/25
0400Z
7/31/27
2359Z
!FDC 5/4609 APF IAP NAPLES MUNI, NAPLES, FL. RNAV (GPS) Y RWY 23
ORIG...LPV DA 289FT/HAT 281FT.LNAV/VNAV DA 521FT/HAT 513FT, VIS
1-3/8SM ALL CATS. LNAV MDA 500FT/HAT 492FT, VIS CATS C AND D
1-3/8SM. TEMPORARY CRANE 193FT MSL 1746 FEET NE OF RWY 23.
(2025-ASO-9007-OE).
REASON: TEMPORARY CRANE 2025-ASO-9007-OE

2510020400-2707312359
Yes
0600-2200
CITY OF NAPLES APT AUTH
160 AVIATION DR NORTH
NAPLES, FL 34104
Phone: 239-643-0733
CHRISTOPHER A. ROZANSKY
160 AVIATION DR NORTH
NAPLES, FL 34104
Phone: 239-643-0733
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
APF
--
WHEN ATCT CLSD ACTVT REIL RWY 05, 14, 23 & 32; PAPI RWY 14 & 32; MIRL RWY 05/23 & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Crop Dusting
Air Ambulance
Charter Service
Aircraft Rental
Aircraft Sales

Runway 05/23

6600 ft. x 150 ft.
ASPH
Fair
GRVD
MED

--
75,000lbs
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 08' 46"N 26° 09' 33"N
Longitude 81° 46' 57"W 81° 46' 06"W
Elevation 6' 6'
Threshold Crossing Height 31 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

5001 ft. x 100 ft.
ASPH
Good
GRVD
MED

75,000lbs
75,000lbs
--
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 09' 27"N 26° 08' 53"N
Longitude 81° 46' 49"W 81° 46' 10"W
Elevation 6' 7'
Threshold Crossing Height 41 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway NE/SW

1850 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway NE Runway SW
True Heading 44°224°
Traffic Pattern
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 26° 08' 55"N 26° 09' 08"N
Longitude 81° 46' 50"W 81° 46' 36"W
Elevation 5' 5'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1EXTRMY NOISE SENSITIVE AREA; USE NOISE ABATEMENT PROCS.
A110-10RUNUPS NA 2200 - 0700; TWY A RUNUP PADS FOR RWY 5/23 PISTON ACFT ONLY; JET ACFT RUNUP AREA TWY C BTW TWY C3 & TWY D PPR - ATCT .
A110-11RWY 23 DSGND CALM WIND RWY FOR ARRS 2200-0600. RWY 5 DSGND CALM WIND RWY FOR DEPS 2200-0600.
A110-12FULL SVC FUEL NOT AVBL DLY 0130-1030Z.
A110-13APF GA APN CTN OBST LGT POLES.
A110-14WX MOD ACFT NOTIFY OPS 24 HRS PRIOR TO ARR 239-564-1692
A110-3CLSD TO ACFT EXCEEDING 75000 LBS MAX GWT DUAL GEAR INDCD ON ACFT OPRG CERT ISSUED BY MANUFACTURER.
A110-7TWY C FM C-1 TO ER RWY 32 NOT VISIBLE FM ATCT.
A110-8VOLUNTARY RESTRICTIONS EXIST FOR ALL ACFT OPS 2200-0700.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FT MYERS APCH AT 239-416-1026, WHEN APCH CLSD CTC MIAMI ARTCC AT 305-716-1731.
A39-05/23PCR VALUE: 210/F/B/X/T
A39-14/32PCR VALUE: 320/F/B/X/T
A42-NE_MARKRWY NE/SW MKD WITH PAVERS & PVC PIPES.
A42-SW_MARKRWY NE/SW MKD WITH PAVERS & PVC PIPES.
A57-05RWY 05 APCH SLOPE 50:1 TO DSPLCD THR.
A57-23RWY 23 APCH SLOPE 47:1 TO DSPLCD THR.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 05, 14, 23 & 32; PAPI RWY 14 & 32; MIRL RWY 05/23 & 14/32 - CTAF.
A82FOR FBO SVC CTC NAPLES AVN - 128.825.
E111EXISTED PRIOR TO 1959.
E80AUS CUSTOMS SVC MON-SUN 1530-2400Z PPR - 239-430-9321.
NAPLES MUNI (ICAO: KAPF, IATA: APF) is a public airport located in NAPLES, FL, US.
