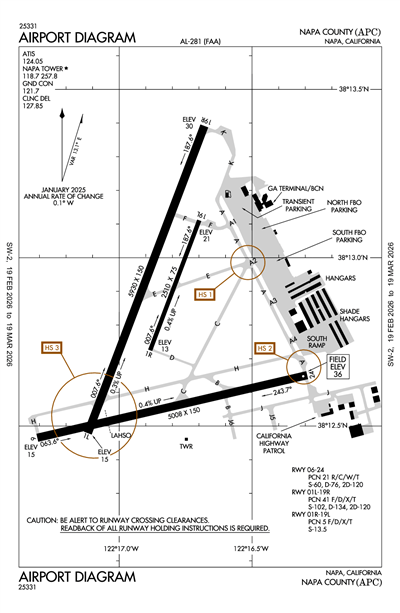

NAPA COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAPC
ICAO KAPCIATA APCLocal APC
NAPA COUNTY
PublicPUB

5 miles S of NAPA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 12' 47"N 122° 16' 50"W
Elevation
36' MSL
Pattern Alt
1036' MSL
Mag Variation
13°E
Declination
15°E
Fuel
JET A, 100LL
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KAPC MVFR
1:54 AM PST
Overcast 1,100'
10sm
52°F
51°F
30.11"Hg
260° 6kts
AO2 SLP189 T01110106
METAR KAPC 040954Z AUTO 26006KT 10SM OVC011 11/11 A3011 RMK AO2 SLP189 T01110106
+ Add Your Business

KAPC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.05
(707) 255-2847
ASOS (707) 252-7916

Common

CTAF 118.7
WHEN ATCT CLSD ACTVT MALS RWY 01L; REIL RWY 06; MIRL RWYS 01L/19R & RWY 06/24 - CTAF. PAPI RWY 19R OPR CONSLY.
UNICOM 122.95

Clearance

Clearance Delivery 127.85

Ground

NAPA GROUND 121.7
0700-2000

Tower

NAPA TOWER 118.7
0700-2000

Center

OAKLAND CENTER 127.8
LOW, APCH/DEP SVC PRVDD BY OAKLAND ARTCC (ZOA) ON FREQ 127.8/353.5 (MOUNT TAMALPAIS RCAG).

Emergency

Emergency 121.5

Terminal Area Forecast

KAPC
Tue, 3/3 9:22 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 1:00 AM PST
Sky Clear
6sm
250° 8kts
MVFR
1:00 AM PST - 11:00 AM PST
Broken 1,000'
6sm
270° 6kts
VFR
11:00 AM PST - 7:00 PM PST
Few 2,000'
6sm
290° 14kts
Gusts 22kts
VFR
7:00 PM PST - 10:00 PM PST
Few 1,500'
6sm
280° 10kts
TAF KAPC 040522Z 0406/0506 25008KT P6SM SKC
   FM040900 27006KT P6SM BKN010
   FM041900 29014G22KT P6SM FEW020
   FM050300 28010KT P6SM FEW015
KAPC
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
1700Z
3/5/26
2000Z
Runway!APC 03/002 APC RWY 01L ALS U/S 2603051700-2603052000
3/3/26
0701Z
!APC 03/003 APC SVC PCL RWY 01L ALS U/S 2603030701-2603132359EST
2/18/26
1246Z
!APC 02/012 APC NAV ILS RWY 01L DME U/S 2602181246-2605182111EST
2/13/26
2108Z
Runway!APC 02/009 APC RWY 06 RWY END ID LGT U/S 2602132108-2603142359EST
12/19/25
2203Z
6/1/26
2359Z
!APC 12/024 APC TWY C BTN TWY H AND TWY A CLSD TO ACFT MORE THAN 30000LB 2512192203-2606012359
7/22/25
1547Z
7/22/26
2359Z
!APC 07/029 APC OBST POLE LGT (ASN 2025-AWP-4519-OE) 381501N1221445W (2.8NM NE APC) 616FT (58FT AGL) U/S 2507221547-2607222359
7/22/25
1546Z
7/22/26
2359Z
!APC 07/028 APC OBST POLE LGT (ASN 2025-AWP-4517-OE) 381502N1221436W (2.8NM NE APC) 605FT (82FT AGL) U/S 2507221546-2607222359
FDC
3/4/26
1600Z
3/10/26
2200Z
!FDC 6/2880 APC SID NAPA COUNTY, NAPA, CA.
OZIEE FOUR DEPARTURE (RNAV)...
INSLO AND JSICA TRANSITION: GPS REQUIRED,
HZN VORTAC OUT OF SERVICE. 2603041600-2603102200EST
2/23/26
1449Z
4/29/26
1449Z
!FDC 6/8385 APC IAP NAPA COUNTY, NAPA, CA.
ILS OR LOC Z RWY 1L, AMDT 1...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR/DME OUT OF SERVICE. 2602231449-2604291449EST
2/23/26
1449Z
4/29/26
1449Z
!FDC 6/8384 APC IAP NAPA COUNTY, NAPA, CA.
VOR RWY 6, AMDT 15...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR/DME OUT OF SERVICE. 2602231449-2604291449EST
2/23/26
1449Z
4/29/26
1449Z
!FDC 6/8379 APC SID NAPA COUNTY, NAPA, CA.
MERLOT THREE DEPARTURE...
SAUSALITO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR/DME OUT OF SERVICE. 2602231449-2604291449EST
2/21/26
2300Z
!FDC 6/7859 APC ODP NAPA COUNTY, NAPA, CA.
NAPAA FOUR DEPARTURE ...
TAKEOFF MINIMUMS: RWY 1L: STANDARD WITH MINIMUM CLIMB OF 340FT PER NM TO 900 OR OR 2400-3 FOR VCOA. TEMP CRANE 1.0NM NE OF DER, 70FT LEFT OF CENTERLINE,156 AGL/208 MSL (2026-AWP-2057-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2602212300-2604101848EST
2/16/26
1043Z
!FDC 6/4432 APC IAP NAPA COUNTY, NAPA, CA.
ILS OR LOC Z RWY 1L, AMDT 1...
VOR RWY 6, AMDT 15...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAU VOR OUT OF SERVICE. 2602161043-2603161043EST
10/28/25
1221Z
!FDC 5/7478 APC IAP NAPA COUNTY, NAPA, CA.
ILS OR LOC Z RWY 1L, AMDT 1...
ALTERNATE MISSED APPROACH NA.
2510281221-2606091221EST
Yes
0700-2000
NAPA COUNTY
2000 AIRPORT RD.
NAPA, CA 94558
Phone: 707-253-4300
MARK WITSOE
2000 AIRPORT RD.
NAPA, CA 94558
Phone: 707-253-4300
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
APC
--
WHEN ATCT CLSD ACTVT MALS RWY 01L; REIL RWY 06; MIRL RWYS 01L/19R & RWY 06/24 - CTAF. PAPI RWY 19R OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 01L/19R

5930 ft. x 150 ft.
ASPH
Good
GRVD
MED
41/F/D/X/T
102,000lbs
134,000lbs
120,000lbs
--
  Runway 01L Runway 19R
True Heading 21°201°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 12' 29"N 38° 13' 24"N
Longitude 122° 17' 07"W 122° 16' 41"W
Elevation 14' 30'
Threshold Crossing Height -- 52 ft. AGL
Visual Glide Path Angle -- 3.25°
Visual Slope Indicator -- P4L
Approach Lights MALS
Centerline Lights No No
Runway End Identifier Lights No No

Runway 01R/19L

2510 ft. x 75 ft.
ASPH
Good
NONE

5/F/D/X/T
14,000lbs
--
--
--
  Runway 01R Runway 19L
True Heading 21°201°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 12' 43"N 38° 13' 07"N
Longitude 122° 16' 53"W 122° 16' 42"W
Elevation 12' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 06/24

5008 ft. x 150 ft.
CONC
Good
NONE
MED
21/R/C/W/T
60,000lbs
76,000lbs
120,000lbs
--
  Runway 06 Runway 24
True Heading 77°257°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 12' 28"N 38° 12' 39"N
Longitude 122° 17' 19"W 122° 16' 17"W
Elevation 14' 36'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1ASPH TWYS STRENGTH 30,000 GWT SINGLE WHEEL.
A110-2ASPH APRONS STRENGTH 12500-30000 LBS GWT SINGLE WHEEL.
A110-7UNLGTD BRIDGE 1 NM S, 167 FT AGL
A110-8DUE TO AIRPORT PROXIMITY TO WETLANDS BIRDS ON AND INVOF THE AIRPORT YEAR AROUND WITH HIGHEST CONCENTRATION OF ACTIVITY OF BIRDS ON THE RYS DURING RAINY WEATHER.
A110-9FOR CD WHEN ATCT CLSD CTC OAKLAND ARTCC AT 510-745-3380.
A24LDG FEE CHRGD TO ALL AIR TAXI, COML ACFT OPNS (EXCLDG FLT INSTRUCTION), AND TSNT ACFT WEIGHING MORE THAN 12500 LBS.
A70-100LLFOR FUEL SVC 2100-0600 CALL 707-224-0887.
A81-APTWHEN ATCT CLSD ACTVT MALS RWY 01L; REIL RWY 06; MIRL RWYS 01L/19R & RWY 06/24 - CTAF. PAPI RWY 19R OPR CONSLY.
NAPA COUNTY (ICAO: KAPC, IATA: APC) is a public airport located in NAPA, CA, US.
