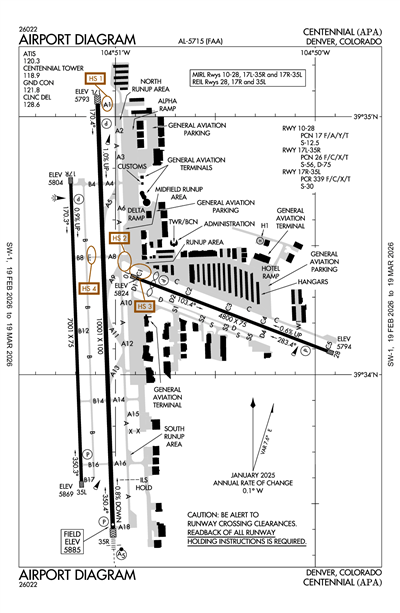

CENTENNIAL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAPA
ICAO KAPAIATA APALocal APA
CENTENNIAL
PublicPUB

15 miles SE of DENVER, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 34' 12"N 104° 50' 57"W
Elevation
5885' MSL
Pattern Alt
6885' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A, 100LL, UL94
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KAPA MVFR
7:53 PM MST
Broken 2,500'
Broken 1,800'
10sm
41°F
33°F
30.21"Hg
020° 6kts
AO2 SLP228 T00500006 51020
METAR KAPA 040253Z 02006KT 10SM BKN018 BKN025 05/01 A3021 RMK AO2 SLP228 T00500006 51020
+ Add Your Business

KAPA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.3
(303) 799-6722
ASOS (720) 873-2799

Common

UNICOM 122.95

Clearance

Clearance Delivery 128.6

Ground

CENTENNIAL GROUND 121.8

Tower

CENTENNIAL TOWER 118.9

Arrival

BRNKO RNAV STAR 127.05
DANDD STAR 120.35
DUNNN RNAV STAR 128.45
POWDR STAR 120.35
QUAIL STAR 120.35
RAMMS STAR 120.35
TOMSN STAR 119.3
ZOMBZ RNAV STAR 128.45

Approach

DENVER APPROACH 132.75

Departure

DENVER DEPARTURE 132.75

Flight Service

Flight Service 122.2
(DEN), COMMUNICATIONS PRVDD BY DENVER RADIO ON FREQ 122.2 (DENVER RCO).

Terminal Area Forecast

KAPA
Tue, 3/3 4:37 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
MVFR
Temporary 5:00 PM MST - 9:00 PM MST
Light Showers and Rain and Mist
Overcast 1,500'
5sm
Calm
VFR
5:00 PM MST - 10:00 PM MST
Showers in vicinity
Overcast 4,000'
Scattered 3,000'
Few 2,000'
6sm
360° 10kts
MVFR
10:00 PM MST - 1:00 AM MST
Mist
Overcast 8,000'
Broken 3,000'
Few 300'
3sm
340° 6kts
VFR
1:00 AM MST - 7:00 AM MST
Scattered 4,000'
Few 400'
6sm
230° 8kts
VFR
7:00 AM MST - 11:00 AM MST
Few 15,000'
6sm
250° 6kts
VFR
11:00 AM MST - 2:00 PM MST
Few 15,000'
6sm
200° 6kts
VFR
2:00 PM MST - 5:00 PM MST
Broken 25,000'
Few 15,000'
6sm
110° 6kts
TAF KAPA 032337Z 0400/0424 36010KT P6SM VCSH FEW020 SCT030 OVC040
   TEMPO 0400/0404 5SM -SHRA BR OVC015
   FM040500 34006KT 3SM BR FEW003 BKN030 OVC080
   FM040800 23008KT P6SM FEW004 SCT040
   FM041400 25006KT P6SM FEW150
   FM041800 20006KT P6SM FEW150
   FM042100 11006KT P6SM FEW150 BKN250
KAPA
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1330Z
3/4/26
0030Z
!APA 02/049 APA OBST CRANE (ASN 2025-ANM-6269-OE) 393431N1045121W (0.4NM NW APA) 5881FT (111FT AGL) FLAGGED AND LGTD 2603031330-2603040030
2/26/26
1600Z
2/26/26
1700Z
!APA 02/033 APA AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF APA SFC-400FT AGL 2602261600-2602261700
2/26/26
1600Z
2/26/26
1700Z
!APA 02/032 APA TWY D CLSD 2602261600-2602261700
2/26/26
1600Z
2/26/26
1700Z
Runway!APA 02/031 APA RWY 10/28 CLSD 2602261600-2602261700
2/26/26
1400Z
2/26/26
1900Z
!APA 02/048 APA OBST CRANE (ASN 2025-ANM-6268-OE) 393430N1045120W (0.4NM NW APA) 5879FT (111FT AGL) FLAGGED AND LGTD 2602261400-2602261900
2/16/26
1900Z
3/16/26
1800Z
!APA 02/023 APA OBST TOWER LGT (ASR 1025148) 392557.00N1043920.00W (12.2NM SE APA) 6998.4FT (348.4FT AGL) U/S 2602161900-2603161800
2/1/26
0645Z
3/2/26
2359Z
!APA 02/001 APA OBST TOWER LGT (ASR 1065282) 394352.00N1045730.00W (10.9NM NNW APA) 5622.0FT (230.0FT AGL) U/S 2602010645-2603022359
1/20/26
1400Z
5/17/27
2300Z
!APA 01/092 APA OBST CRANE (ASN 2025-ANM-5667-OE) 393733N1045333W (3.9NM NNW APA) 5833FT (205FT AGL) FLAGGED AND LGTD 2601201400-2705172300
1/10/26
0321Z
5/15/27
2100Z
!APA 01/061 APA OBST CRANE (ASN UNKNOWN) 393729N1045336W (3.1NM NW APCH END RWY 17L)
UNKNOWN (170FT AGL) FLAGGED AND LGTD 2601100321-2705152100
12/25/25
0617Z
!APA 12/173 APA NAV ILS RWY 35R NOT MNT 2512250617-2603272000EST
12/8/25
1400Z
4/30/26
2300Z
!APA 12/091 APA OBST CRANE (ASN 2025-ANM-2989-OE) 393333N1044846W (1.8NM ESE APA) 5974FT (200FT AGL) FLAGGED AND LGTD 2512081400-2604302300
11/14/25
1400Z
2/28/26
2359Z
!APA 11/010 APA OBST CRANE (ASN 2025-ANM-2416-OE) 393154N1044954W (2.4NM SSE APA) 6078FT (190FT AGL) FLAGGED AND LGTD DLY 1400-2359 2511141400-2602282359
7/28/25
1300Z
7/29/26
0100Z
!APA 07/053 APA OBST CRANE (ASN 2025-ANM-3695-OE) 393157N1045205W (2.4NM SSW APA) 6194FT (197FT AGL) FLAGGED 2507281300-2607290100
4/15/25
1222Z
9/1/27
0130Z
!APA 04/064 APA AIRSPACE SEE BRK 04/434 AEROBATIC ACFT DLY SR-SS 2504151222-2709010130
FDC
2/25/26
1800Z
3/4/26
1630Z
!FDC 6/9273 APA SID CENTENNIAL, DENVER, CO.
ROCKIES SEVEN DEPARTURE...
DOVE CREEK TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DVC VORTAC OUT OF SERVICE. 2602251800-2603041630EST
2/25/26
1600Z
3/11/26
1615Z
!FDC 6/9257 APA SID CENTENNIAL, DENVER, CO.
ROCKIES SEVEN DEPARTURE ...
MEEKER TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, EKR VOR/DME OUT OF SERVICE. 2602251600-2603111615EST
2/5/26
1830Z
!FDC 6/0698 APA SID CENTENNIAL, DENVER, CO.
PLAINS TWO DEPARTURE...
GARDEN CITY TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VORTAC OUT OF SERVICE. 2602051830-2604021830EST
2/1/26
2336Z
3/1/26
2336Z
!FDC 6/9384 APA IAP CENTENNIAL, DENVER, CO.
ILS OR LOC RWY 35R, AMDT 11B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FQF VORTAC UNMONITORED. 2602012336-2603012336EST
1/5/26
1434Z
8/17/26
1434Z
!FDC 6/0365 APA SID CENTENNIAL, DENVER, CO.
PIKES THREE DEPARTURE...
ALAMOSA TRANSITION, BINKE TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ALS VORTAC OUT OF SERVICE. 2601051434-2608171434EST
12/22/25
1655Z
!FDC 5/2507 APA IAP CENTENNIAL, DENVER, CO.
RNAV (GPS) RWY 35R, AMDT 1B...
LNAV MDA 6440/HAT 555 ALL CATS, VISIBILITY CATS C/D 1 1/4.
CIRCLING CAT A MDA 6440/HAA 555, CAT D MDA 6900/HAA 1015, VISIBILITY CAT D 3.
VDP 1.46 NM TO RW35R.
2512221655-2607311655EST
12/22/25
1642Z
!FDC 5/2503 APA IAP CENTENNIAL, DENVER, CO.
ILS OR LOC RWY 35R, AMDT 11B...
CIRCLING CAT D MDA 6900/HAA 1015/VIS 3.
2512221642-2608031642EST
12/15/25
2100Z
!FDC 5/7768 APA IAP CENTENNIAL, DENVER, CO.
RNAV (RNP) Z RWY 17L, ORIG...
RNP 0.30 DA 6133/HAT 310 ALL CATS. TEMPORARY CRANE 5803 MSL 4938FT NORTH OF RWY 17L (2025-ANM-6990-OE).
2512152100-2607231359EST
12/6/25
2100Z
!FDC 5/4499 APA ODP CENTENNIAL, DENVER, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKE-OFF MINIMUMS: RWY 10, 200-1 1/4 OR STD WITH MINIMUM CLIMB OF 305FT PER NM TO 6100. TEMPORARY CRANE 6048FT FROM DER, 1069FT RIGHT OF CENTERLINE, 200FT AGL/ 5974FT MSL (2025-ANM-2989-OE).
ADD TAKEOFF OBSTACLE NOTE: RWY 10, TEMPORARY CRANE 6048FT FROM DER, 1069FT RIGHT OF CENTERLINE, 200FT AGL/ 5974FT MSL (2025-ANM-2989-OE)..
ADD TAKEOFF OBSTACLE NOTES: RWY 35L, TEMPORARY CRANE 1380FT FROM DER, 233FT LEFT OF CENTERLINE, 125 AGL/5887 MSL (2024-ANM-5955-OE). TEMPORARY CRANE 2144FT FROM DER, 92FT LEFT OF CENTERLINE, 125 AGL/5879 MSL (2025-ANM-5284-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2512062100-2612061001EST
12/6/25
2100Z
!FDC 5/4498 APA IAP CENTENNIAL, DENVER, CO.
RNAV (GPS) RWY 28, AMDT 1C...
LNAV/VNAV DA 6185/HAT 372 ALL CATS. VDP 1.32 NM TO RWY 28. TEMPORARY CRANE 5974 MSL 1.05 NM SE OF RWY 28 (2025-ANM-2989-OE).
2512062100-2612061001EST
11/23/25
1053Z
!FDC 5/0822 APA IAP CENTENNIAL, DENVER, CO.
ILS OR LOC RWY 35R, AMDT 11B...
S-LOC 35R MDA 6540/HAT 655 ALL CATS, VIS CATS C/D 1 3/8.
SIDESTEP 35R MDA 6540/HAT 655 ALL CATS.
CIRCLING CAT A 6540/HAA 655.
TEMPORARY CRANE, 6231FT MSL, 2.1NM S OF RWY 35R (2025-ANM-2025-1007-OE).
2511231053-2607052355EST
11/23/25
1041Z
!FDC 5/0820 APA IAP CENTENNIAL, DENVER, CO.
RNAV (GPS) RWY 35R, AMDT 1B...
LNAV MDA 6540/HAT 655 ALL CATS, VIS CATS C/D 1 3/8.
CIRCLING CAT A 6540/HAA 655.
TEMPORARY CRANE, 6231FT MSL, 2.1NM S OF RWY 35R (2025-ANM-2025-1007-OE).
2511231041-2607052355EST
9/26/25
1700Z
9/26/27
2359Z
!FDC 5/0960 APA STAR CENTENNIAL AIRPORT, DENVER, CO.
DANDD ONE ARRIVAL: INCREASE ALL MOCA VALUES TO 8300. ALL OTHER DATA
REMAINS AS PUBLISHED 2509261700-2709262359
8/22/25
1532Z
!FDC 5/1810 APA SID CENTENNIAL, DENVER, CO.
ROCKIES SEVEN DEPARTURE...
DOVE CREEK TRANSITION AND MONTROSE TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MTJ VOR/DME OUT OF SERVICE.
2508221532-2604031532EST
7/31/25
1458Z
!FDC 5/8611 APA IAP CENTENNIAL, DENVER, CO.
RNAV (GPS) RWY 28, AMDT 1C...
ALTERNATE MINIMUMS: CAT C: 900-2 1/2; CAT D: 1100-3.
2507311458-2707311457EST
1/13/25
1939Z
!FDC 5/2970 APA IAP CENTENNIAL, DENVER, CO.
ILS OR LOC RWY 35R, AMDT 11B...
ADD NOTE: AUTOPILOT COUPLED APPROACH NOT AUTHORIZED BELOW 6295FT MSL.
2501131939-2701131939EST
Yes
ALL
ARAPAHOE CO PUBLIC ARPT AUTH
7800 S PEORIA ST
ENGLEWOOD, CO 80112
Phone: 303-790-0598
MIKE FRONAPFEL
7565 SOUTH PEORIA ST, UNIT D9
ENGLEWOOD, CO 80112
Phone: 303-790-0598
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
APA
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 10/28

4800 ft. x 75 ft.
ASPH
Good
GRVD
MED
17/F/A/Y/T
12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 111°291°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 34' 22"N 39° 34' 05"N
Longitude 104° 50' 54"W 104° 49' 56"W
Elevation 5,824' 5,794'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 17L/35R

10001 ft. x 100 ft.
ASPH
Good
GRVD
MED
26/F/C/X/T
56,000lbs
75,000lbs
--
--
  Runway 17L Runway 35R
True Heading 178°358°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 35' 03"N 39° 33' 24"N
Longitude 104° 51' 05"W 104° 51' 01"W
Elevation 5,793' 5,885'
Threshold Crossing Height 47 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

7001 ft. x 75 ft.
ASPH
Good
GRVD
MED

30,000lbs
--
--
--
  Runway 17R Runway 35L
True Heading 178°358°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 34' 44"N 39° 33' 35"N
Longitude 104° 51' 13"W 104° 51' 10"W
Elevation 5,804' 5,869'
Threshold Crossing Height 42 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

50 ft. x 50 ft.
CONC
Good
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 39° 34' 31"N N/A
Longitude 104° 50' 16"W N/A
Elevation 5,825' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ALL ACFT BLO CERT 70000 LB MAX GROSS TKOF WT & STAGE III ACFT UP TO CERT 75000 LB MAX GROSS TKOF WT MAY OPR; ONE-TIME EXCEPTION AUZD BY EXEC DIR.
A110-12HELI OPS CTC FBO FOR LNDG ZONE LCTN; HELI OPS ON FRONT RAMP NOT ADVISED.
A110-18ADZY DENSITY ALT DSPL LCTD C-1, A-1 & A-18.
A110-20CTN: ENSURE PROPER RWY ALNMT; CLOSE SPACED PARL RWYS. ARPT SAFETY VIDEO - HTTPS://WWW.FAA.GOV/AIRPORTS/RUNWAY_SAFETY/VIDEOS/APA/
A110-21MULT LRG PWR LINES APRXLY 3NM S OF RWY 35R & RWY 35L.
A110-22NOISE ABATEMENT PROCS IN EFCT. ALL ACFT AVOID NOISE SENSITIVE AREAS 1 NM NORTH AND WEST OF ARPT AND 1 NM SOUTHEAST OF ARPT. RWY 17R-35L CLSD TFC REMAIN SOUTH OF ARAPAHOE ROAD, EAST OF I-25, AND NORTH OF LINCOLN AVE. QUIET HRS 2200-0700L. TBJT ACFT USE NBAA PROFILES. NOISE OFFICE/303-790-0598.
A110-23+71 FT BLDG LCTD 1920 FT ESE OF RY 28 THLD 440 FT LT OF CTLN 24:1 GLD SLP.
A110-3WATERFOWL ON & INVOF ARPT.
A110-4NMRS CRANES INVOF ARPT.
A110-5+190 FT TWR LCTD 1800 FT ENE OF RY 17L THLD.
A13AFT HR - 303-877-7307.
A30A-17LNMRS FLOOD LGTS 1/2 SM N OF THR; SS-2400.
A30A-H1H24 HELI SVC - 303-799-0079.
A30-H1TLOF 50X50 FT; FATO 50X50 FT; INGRESS/EGRESS 270.
A39-17R/35LPCR VALUE: 339/F/C/X/T
A70-100LLSELF SERVE FUEL AVBL.
E80AH24 US CUSTOMS - 303-768-0309.
CENTENNIAL (ICAO: KAPA, IATA: APA) is a public airport located in DENVER, CO, US.
