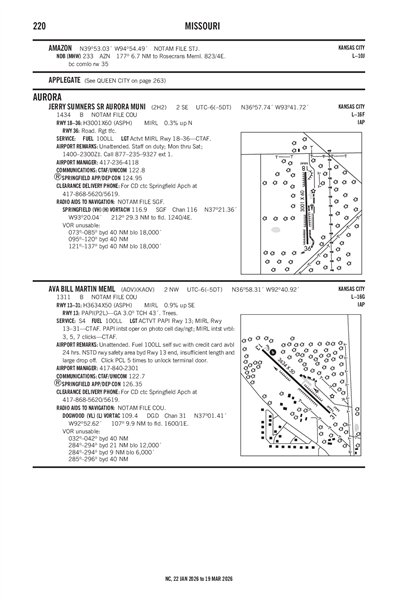

AVA BILL MARTIN MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAOV
ICAO KAOVLocal AOV
AVA BILL MARTIN MEML
PublicPUB

2 miles NW of AVA, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 58' 19"N 92° 40' 55"W
Elevation
1311' MSL
Pattern Alt
2311' MSL
Mag Variation
0°
Declination
2°E
Fuel
100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KBBG (36nm) VFR
10:35 PM CST
No Clouds
10sm
66°F
57°F
30.02"Hg
150° 7kts
AO2
METAR KBBG 040435Z AUTO 15007KT 10SM 19/14 A3002 RMK AO2
+ Add Your Business

KAOV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.7
ACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF. PAPI INTST OPER ON PHOTO CELL DAY/NGT; MIRL INTST VRBL: 3, 5, 7 CLICKS - CTAF.
UNICOM 122.7

Approach

SPRINGFIELD APPROACH 126.35

Departure

SPRINGFIELD DEPARTURE 126.35

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBBG (36nm)
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 6:00 AM CST
Scattered 17,000'
6sm
220° 5kts
VFR
6:00 AM CST - 10:00 AM CST
Overcast 5,000'
6sm
VRB° 4kts
MVFR
Temporary 6:00 AM CST - 10:00 AM CST
Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
MVFR
10:00 AM CST - 2:00 PM CST
Showers and Rain
Broken 2,700'
6sm
170° 5kts
MVFR
Temporary 10:00 AM CST - 2:00 PM CST
Thunderstorm and Rain
Overcast 1,500'
4sm
Calm
IFR
2:00 PM CST - 5:00 PM CST
Thunderstorm and Rain
Overcast 900'
4sm
Calm
MVFR
2:00 PM CST - 6:00 PM CST
Showers and Rain
Overcast 1,400'
6sm
140° 6kts
TAF KBBG 032323Z 0400/0424 22005KT P6SM SCT170
   FM041200 VRB04KT P6SM OVC050
   TEMPO 0412/0416 4SM TSRA OVC025CB
   FM041600 17005KT 6SM SHRA BKN027
   TEMPO 0416/0420 4SM TSRA OVC015CB
   FM042000 14006KT 6SM SHRA OVC014
   PROB30 0420/0423 4SM TSRA OVC009CB AMD LTD TO WX VIS AND WIND AFT 040300
KAOV
EffectiveExpiresCategoryNOTAM
Domestic
2/10/26
0937Z
3/28/26
0609Z
!COU 02/153 AOV OBST TOWER LGT (ASR 1325826) 364252.50N0923813.80W (15.6 NM S AOV) 1368FT (339FT AGL) U/S 2602100937-2603280609
2/3/26
2020Z
3/20/26
2019Z
!COU 02/035 AOV OBST TOWER LGT (ASR 1308439) 365434.56N0924911.46W (7.6NM WSW AOV) 1598FT (330FT AGL) U/S 2602032020-2603202019
1/28/26
0539Z
4/30/26
2359Z
!COU 01/689 AOV OBST TOWER LGT (ASR 1006197) 365344.30N0924437.10W (5.5NM SSW AOV) 1682.1FT (410.1FT AGL) U/S 2601280539-2604302359
1/23/26
2119Z
3/23/26
2359Z
!COU 01/369 AOV OBST TOWER LGT (ASR 1251326) 365006.00N0925057.00W (11.5NM SW AOV) 1660.4FT (344.8FT AGL) U/S 2601232119-2603232359
No
UNATNDD
CITY OF AVA
404 SOUTH JEFFERSON ST P.O. BOX 967
AVA, MO 65608
Phone: 417-683-5516
DAVID DAVIDSON
PO BOX 967
AVA, MO 65608
Phone: 417-840-2301
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF. PAPI INTST OPER ON PHOTO CELL DAY/NGT; MIRL INTST VRBL: 3, 5, 7 CLICKS - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Pilot Instruction
Aircraft Rental

Runway 13/31

3634 ft. x 50 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 36° 58' 32"N 36° 58' 06"N
Longitude 92° 41' 10"W 92° 40' 40"W
Elevation 1,277' 1,311'
Threshold Crossing Height 43 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1NTSD RY SAFETY AREA BYD RY 13 END, INSUF LENGTH AND LARGE DROP OFF.
A110-2100LL SELF SVC CREDIT CARD AVBL 24 HRS.
A110-3CLICK PCL 5 TIMES TO UNLOCK TERMINAL DOOR.
A110-4FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.
A58-13TREES 10-35FT 10-175FT FROM RWY END, 150-250 FT RIGHT; TREES 10-43 FT 25-70 FT FROM RWY END, 235 FT LEFT
A81-APTACTVT PAPI RWY 13; MIRL RWY 13/31 - CTAF. PAPI INTST OPER ON PHOTO CELL DAY/NGT; MIRL INTST VRBL: 3, 5, 7 CLICKS - CTAF.
AVA BILL MARTIN MEML (ICAO: KAOV, IATA: AOV) is a public airport located in AVA, MO, US.
