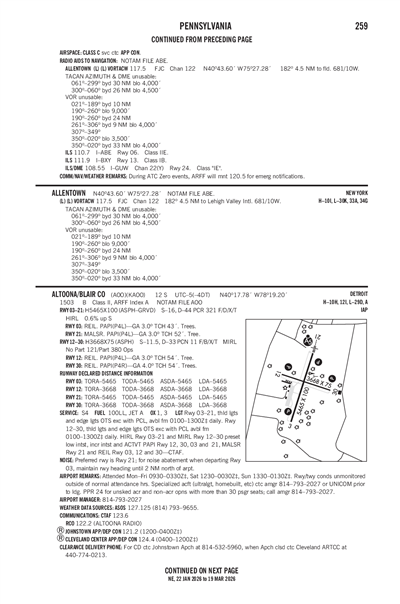

ALTOONA/BLAIR COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAOO
ICAO KAOOIATA AOOLocal AOO
ALTOONA/BLAIR COUNTY
PublicPUB

12 miles S of ALTOONA, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 17' 47"N 78° 19' 12"W
Elevation
1503' MSL
Pattern Alt
2503' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KAOO LIFR
9:53 PM EST
Mist
Overcast 2,200'
Broken 400'
2.5sm
36°F
35°F
30.15"Hg
Calm
AO2 RAB0154E03B24E33 SLP225 P0000 60002 I1000 I3000 T00220017 56008
METAR KAOO 040253Z AUTO 00000KT 2 1/2SM BR BKN004 OVC022 02/02 A3015 RMK AO2 RAB0154E03B24E33 SLP225 P0000 60002 I1000 I3000 T00220017 56008
+ Add Your Business

KAOO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 127.125
(814) 793-9655

Common

CTAF 123.6
HIRL RY 03/21 & MIRL RY 12/30 PRESET LOW INTST, INCR INTST & ACTVT PAPI RYS 12, 30, 03 & 21, MALSR RY 21 & REIL RYS 03, 12, & 30 - CTAF.

Approach

JOHNSTOWN APPROACH 121.2

Departure

JOHNSTOWN DEPARTURE 121.2

Center

JOHNSTOWN CENTER 124.4
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 124.4/299.2 (ALTOONA RCAG) WHEN JOHNSTOWN APCH CTL CLSD.

Flight Service

Flight Service 122.2

Terminal Area Forecast

KAOO
Tue, 3/3 6:29 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
7:00 PM EST - 9:00 PM EST
Light Showers and Rain and Mist
Overcast 700'
4sm
180° 3kts
LIFR
9:00 PM EST - 3:00 AM EST
Light Showers and Rain and Mist
Overcast 300'
2sm
170° 2kts
LIFR
3:00 AM EST - 10:00 AM EST
Fog
Overcast 300'
0.25sm
310° 2kts
LIFR
10:00 AM EST - 7:00 PM EST
Mist
Overcast 300'
2sm
Calm
TAF KAOO 032329Z 0400/0424 18003KT 4SM -SHRA BR OVC007 WS020/25036KT
   FM040200 17002KT 2SM -SHRA BR OVC003
   FM040800 31002KT 1/4SM FG OVC003
   FM041500 00000KT 2SM BR OVC003
KAOO
EffectiveExpiresCategoryNOTAM
Domestic
2/9/26
0210Z
3/26/26
0209Z
!AOO 02/086 AOO OBST TOWER LGT (ASR 1302245) 401921.94N0782029.87W (1.9NM NNW AOO) 1651FT (255FT AGL) U/S 2602090210-2603260209
2/4/26
1433Z
!AOO 02/040 AOO NAV ILS RWY 21 LOC NOT MNT 2602041433-2602272000EST
12/5/25
1928Z
Runway!AOO 12/067 AOO RWY 03 RWY END ID LGT U/S 2512051928-2604302111EST
FDC
12/5/25
1707Z
!FDC 5/5199 AOO IAP ALTOONA/BLAIR COUNTY, ALTOONA, PA.
RNAV (GPS) Y RWY 3, AMDT 1C...
DELETE NOTE: CHART CIRCLING ICON.
CHART NOTE: CIRCLING NA FOR CATS C,D NW OF RWYS 12 AND 21.
CHANGE NOTE TO READ: VDP NA WHEN USING HMZ ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
HMZ ALTIMETER SETTING; INCREASE ALL MDA 100 FEET. INCREASE LNAV AND
LP CATS C/D VISIBILITIES 3/8 SM AND CIRCLING CAT A 1/4 SM.
THIS IS RNAV (GPS) Y RWY 3, AMDT 1D. 2512051707-PERM
No
MON-FRI 0430-2230
SAT 0730-1930
SUN 0830-2030
BLAIR COUNTY AIRPORT AUTH
310 AIRPORT DRIVE, SUITE 6
MARTINSBURG, PA 16662
Phone: 814-793-2027
TRACY PLESSINGER
310 AIRPORT DRIVE, SUITE 6
MARTINSBURG, PA 16662
Phone: 814-793-2027
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AOO
--
HIRL RY 03/21 & MIRL RY 12/30 PRESET LOW INTST, INCR INTST & ACTVT PAPI RYS 12, 30, 03 & 21, MALSR RY 21 & REIL RYS 03, 12, & 30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5465 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

16,000lbs
44,000lbs
--
--
  Runway 03 Runway 21
True Heading 16°196°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 17' 19"N 40° 18' 11"N
Longitude 78° 19' 23"W 78° 19' 04"W
Elevation 1,503' 1,469'
Threshold Crossing Height 43 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 12/30

3668 ft. x 75 ft.
ASPH
Good
NONE
MED
11/F/B/X/T
12,000lbs
33,000lbs
--
--
  Runway 12 Runway 30
True Heading 108°288°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 40° 17' 55"N 40° 17' 44"N
Longitude 78° 19' 32"W 78° 18' 47"W
Elevation 1,473' 1,482'
Threshold Crossing Height 54 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 4°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1PREFERRED RWY IS RWY 21; FOR NOISE ABATEMENT WHEN DEP RWY 03 MAINT RWY HDG TIL 2 NM N OF ARPT.
A110-4SPECIALIZED ACFT (ULTRALGT, HOMEBUILT, ETC) CTC AMGR 814-793-2027 OR UNICOM PRIOR TO LDG.
A110-6RWY/TWY CONDITIONS UNMONITORED OUTSIDE OF NML ATTENDANCE HRS.
A110-7FOR CD CTC JOHNSTOWN APCH AT 814-532-5960, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0213.
A26PPR 24 FOR UNSKED ACR & NON-ACR OPNS WITH MORE THAN 30 PSGR SEATS; CALL AMGR 814-793-2027.
A30-12/30RWY 12/30 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. NO PART 121/PART 380 OPS EXC FOR TAX.
A39-03/21PCR VALUE: 321/F/D/X/T
A40-03/21RY 03/21, THRESHOLD LGTS & EDGE LGTS OTS EXCEPT WITH PCL, AVBL FM 0100-1300Z DAILY.
A40-12/30RY 12/30, THRESHOLD LGTS & EDGE LGTS OTS EXCEPT WITH PCL, AVBL FM 0100-1300Z DAILY.
A58-30HAS + 4 FT GND 20 FT FM RY END 215 FT RIGHT.
A81-APTHIRL RY 03/21 & MIRL RY 12/30 PRESET LOW INTST, INCR INTST & ACTVT PAPI RYS 12, 30, 03 & 21, MALSR RY 21 & REIL RYS 03, 12, & 30 - CTAF.
ALTOONA/BLAIR COUNTY (ICAO: KAOO, IATA: AOO) is a public airport located in ALTOONA, PA, US.
