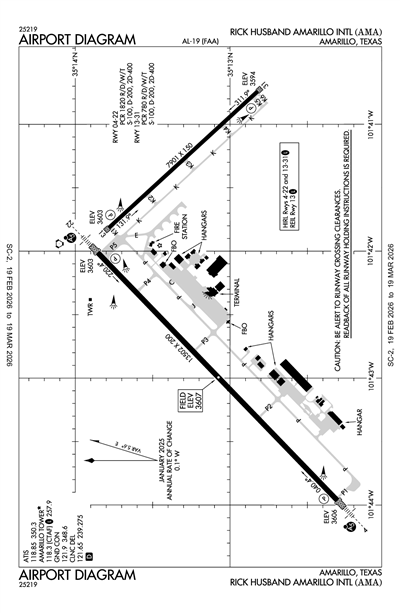

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAMA
RICK HUSBAND AMARILLO INTL
PublicPUB

7 miles E of AMARILLO, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 13' 10"N 101° 42' 21"W
3607' MSL
4502' MSL
08E
JET A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
ALBUQUERQUE (ZAB)
7/11/24-8/8/24
KAMA VFR
5:53 AM CDT
Clear
10sm
73°F
65°F
29.93"Hg
210° 15kts
AO2 SLP072 T02280183 $
KAMA 191053Z 21015KT 10SM CLR 23/18 A2993 RMK AO2 SLP072 T02280183 $
Add Your Business

KAMA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
 118.85

ASOS

ASOS
806-335-1060
 118.85

Approach/Departure

APCH/P DEP/P IC
 119.5
APCH/S DEP/S
 121.15

Clearance Delivery

CD/P
 121.65

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Other

CLASS C
 119.5
CLASS C/S
 121.15

Terminal Area Forecast

KAMA
Thu, 9/19 12:23 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 8:00 AM CDT
Sky Clear
6sm
200° 11kts
VFR
8:00 AM CDT - 8:00 PM CDT
Few 25,000'
6sm
240° 12kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
6sm
VRB° 6kts
KAMA 190523Z 1906/2006 20011KT P6SM SKC
   FM191300 24012KT P6SM FEW250
   FM200100 VRB06KT P6SM FEW250
KAMA
Domestic
9/24/241300Z !AMA 09/014 AMA TWY K, K1, K2, K3, K4, K5, K6 CLSD 2409241300-2409242130
9/24/241300Z !AMA 09/013 AMA RWY 13/31 CLSD 2409241300-2409242130
9/18/241900Z !AMA 09/015 AMA SVC PCL RWY 04/22 U/S 2409181900-2409182100
8/31/240802Z !AMA 08/047 AMA OBST TOWER LGT (ASR 1322365) 351321.31N1013708.44W (4.3NM E AMA) 3839FT (310FT AGL) U/S 2408310802-2410150801
8/27/241231Z !AMA 08/042 AMA OBST CRANE (ASN 2022-ASW-9069-NRA) 351326N1014207W (0.3NM NE AMA) 3644FT (42FT AGL) FLAGGED 2408271231-2409302300
8/20/241413Z !AMA 08/031 AMA OBST CRANE (ASN 2023-ASW-11409-OE) 351525N1013902W (3.5NM NE AMA) 3854FT (310FT AGL) FLAGGED AND LGTD 2408201413-2410312200
FDC
9/3/241412Z !FDC 4/9124 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
RNAV (GPS) Y RWY 22, AMDT 1A...
LNAV MDA 4160/HAT 554 ALL CATS. VIS CATS C/D/E 1 1/8.
CIRCLING CATS A/B MDA 4160/HAA 553.
VDP 1.02 NM TO RW22.
FOR INOPERATIVE ALS, INCREASE CATS C/D/E VISIBILITY TO 1 5/8.
TEMPORARY CRANE, 3854 MSL, 2.89 NM NE OF RWY 22 (2023-ASW-11409-OE).
2409031412-2409301412EST
9/3/241412Z !FDC 4/9123 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
VOR RWY 22, AMDT 1A...
S-22 MDA 4160/HAT 554 ALL CATS. VIS CATS C/D/E 1 1/8.
CIRCLING CATS A/B MDA 4160/HAA 553.
FOR INOPERATIVE ALS, INCREASE CATS C/D/E VISIBILITY TO 1 5/8.
TEMPORARY CRANE, 3854 MSL, 2.89 NM NE OF RWY 22 (2023-ASW-11409-OE).
2409031412-2409301412EST
9/3/241412Z !FDC 4/9122 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
HI - VOR OR TACAN RWY 22, AMDT 1A...
S-22* CATS C/D/E MDA 4160/HAT 554. VIS CATS C/D/E 1 1/8.
BORGER ALTIMETER SETTING:
S-22** CATS C/D/E MDA 4320/HAT 714. VIS CATS C/D/E 2.
*WHEN ALS INOP INCREASE CAT C/D/E VISIBILITY TO 1 5/8.
**WHEN ALS INOP, INOP TABLE DOES NOT APPLY.
TEMPORARY CRANE, 3854 MSL, 2.89 NM NE OF RWY 22 (2023-ASW-11409-OE).
2409031412-2409301412EST
9/3/241412Z !FDC 4/9121 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
RADAR 1, AMDT 16B...
ASR RWY 22 MDA 4160/HAT 554 ALL CATS.
TEMPORARY CRANE, 3854 MSL, 2.89 NM NE OF RWY 22 (2023-ASW-11409-OE).
2409031412-2409301412EST
6/25/241452Z !FDC 4/3088 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
ILS OR LOC RWY 4, AMDT 23...
LDA RWY 22, AMDT 1D...
VOR RWY 13, ORIG-B...
VOR RWY 22, AMDT 1A...
VOR RWY 31, ORIG-B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PNH VORTAC UNMONITORED. 2406251452-2606251452EST
6/25/241452Z !FDC 4/3087 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
HI - VOR OR TACAN RWY 13, ORIG-B...
HI - VOR OR TACAN RWY 22, AMDT 1A...
HI - VOR OR TACAN RWY 31, ORIG-A...
HI - VOR OR TACAN RWY 4, AMDT 1A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PNH VORTAC UNMONITORED. 2406251452-2606251452EST
3/25/241822Z !FDC 4/1384 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
HI - VOR OR TACAN RWY 4, AMDT 1A...
MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300.
2403251822-2603251822EST
8/8/231422Z !FDC 3/0113 AMA IAP U.S. DOD RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
HI - VOR OR TACAN RWY 13, ORIG-B...
S-13 MDA 4120/HAT 517 ALL CATS. VISIBILITY ALL CATS 1 3/8.
WITH BORGER ALTIMETER SETTING: S-13 MDA 4280/HAT 677 ALL CATS. VISIBILITY ALL CATS 1 3/4.
VDP AT PNH VORTAC 1.17 DME; DISTANCE VDP TO THLD 1.45 NM.
CHANGE MINIMUM HOLDING ALTITUDE AT SIDER (IAF) PNH R-247/20 DME FROM 14000 TO AT OR ABOVE FL 180.
MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300.
2308081422-2504061422EST
4/6/231718Z !FDC 3/7720 AMA IAP RICK HUSBAND AMARILLO INTL, AMARILLO, TX.
VOR RWY 13, ORIG-B...
VOR RWY 22, AMDT 1A...
VOR RWY 31, ORIG-B...
MSA FROM PNH VORTAC 360 CW 180 MINIMUM ALTITUDE 5300.
2304061718-2504061718EST
Yes
ALL
CITY OF AMARILLO
PO BOX 1971
AMARILLO, TX 79105
Phone: 806-378-3000
MICHAEL CONNER
10801 ARPT BLVD
AMARILLO, TX 79111
Phone: 806-354-7721
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
AMA
--
WHEN ATCT CLSD, TO INCR INTST AND ACTVT MALSR RWYS 04 & 22; REIL RWY 13; HIRL RWYS 04/22, 13/31; ALL TWYS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
9
11
9
0
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

13502 ft. x 200 ft.
CONC
Good
GRVD
HIGH
176/R/C/W/T
100,000lbs
200,000lbs
400,000lbs
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 12' 18"N 35° 13' 51"N
Longitude 101° 43' 58"W 101° 42' 01"W
Elevation 3,606' 3,603'
Threshold Crossing Height 61 ft. AGL 77 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 13/31

7901 ft. x 150 ft.
CONC
Good
GRVD
HIGH
89 /R/B/W/T
100,000lbs
200,000lbs
400,000lbs
--
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 13' 47"N 35° 12' 49"N
Longitude 101° 41' 49"W 101° 40' 44"W
Elevation 3,603' 3,594'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1TILTROTOR ACFT ACTIVITY INVOF ARPT.
A110-2LDG FEE.
A110-3FOR CD IF UNA TO CTC ON FSS FREQ, CTC ALBUQUERQUE ARTCC AT 505-856-4561.
RICK HUSBAND AMARILLO INTL (ICAO: KAMA, IATA: AMA) is a public airport located in AMARILLO, TX.
