KALX
THOMAS C RUSSELL FLD
PublicPUB

2 miles SW of ALEXANDER CITY, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 54' 53"N 85° 57' 47"W
686' MSL
1686' MSL
04W
JET A, 100LL
ANNISTON (ANB)
ATLANTA
ATLANTA (ZTL)
10/31/24-11/28/24
KALX MVFR
5:35 AM CST
Overcast 3,000'
10sm
68°F
67°F
30.07"Hg
Calm
AO2 T01980196
KALX 091135Z AUTO 00000KT 10SM OVC030 20/20 A3007 RMK AO2 T01980196
Add Your Business

KALX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

AWOS-3PT

AWOS-3PT
256-329-1820
 118.325

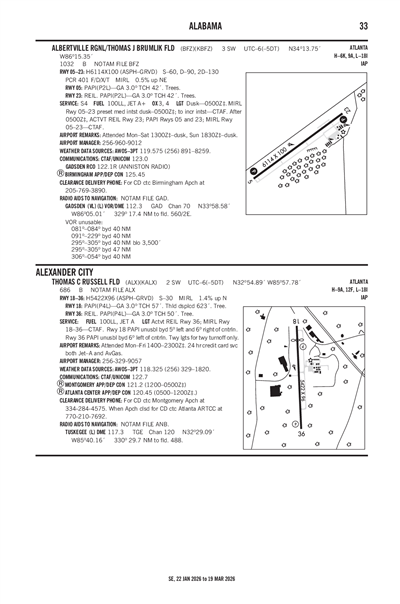

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMXF (38nm)
Fri, 11/8 2:00 PM CST
Fri, 11/8 2:00 PM CST - Sat, 11/9 8:00 PM CST
MVFR
2:00 PM CST - 9:00 AM CST
Overcast 2,000'
6sm
30.00"Hg
VRB° 6kts
MVFR
Becoming 9:00 AM CST - 1:00 PM CST
Overcast 2,500'
6sm
30.06"Hg
110° 12kts
Gusts 18kts
VFR
Becoming 1:00 PM CST - 4:00 PM CST
Few 2,500'
6sm
30.03"Hg
130° 12kts
Gusts 18kts
VFR
Becoming 4:00 PM CST - 5:00 PM CST
Scattered 2,500'
6sm
30.03"Hg
120° 6kts
MVFR
Becoming 5:00 PM CST - 8:00 PM CST
Broken 2,500'
6sm
30.06"Hg
110° 6kts
Light Turbulence: 300 - 3,300'
TAF KMXF 082000Z 0820/1002 VRB06KT 9999 OVC020 QNH3000INS
   BECMG 0915/0916 11012G18KT 9999 OVC025 QNH3005INS
   BECMG 0919/0920 13012G18KT 9999 FEW025 QNH3003INS
   BECMG 0922/0923 12006KT 9999 SCT025 QNH3003INS
   BECMG 0923/0924 11006KT 9999 BKN025 510033 QNH3005INS TX27/0820Z TN21/0912Z LAST NO AMDS AFT 0900 NEXT 1212
KALX
Domestic
10/28/241233Z !ALX 10/017 ALX OBST TOWER LGT (ASR 1220406) 324819.50N0861431.10W (15.7NM WSW ALX) 877.0FT (270.0FT AGL) U/S 2410281233-2411121133
10/25/240418Z !ALX 10/016 ALX OBST TOWER LGT (ASR 1250524) 330050.80N0860341.90W (7.7NM NW ALX) 993.8FT (259.8FT AGL) U/S 2410250418-2411090318
10/25/240414Z !ALX 10/015 ALX OBST TOWER LGT (ASR 1274479) 325122.20N0854448.10W (11.4NM ESE ALX) 989.2FT (261.2FT AGL) U/S 2410250414-2411090314
10/19/240302Z !ALX 10/013 ALX OBST TOWER LGT (ASR 1308471) 325154.83N0860530.62W (7.2NM WSW ALX) 997FT (269FT AGL) U/S 2410190302-2412030301
10/10/241433Z !ALX 10/006 ALX OBST TOWER LGT (ASN 2023-ASO-25952-OE) 325555N0861248W (12.7NM W ALX) 1094FT (330FT AGL) U/S 2410101433-2411241430
9/27/240540Z !ALX 09/016 ALX OBST TOWER LGT (ASR 1004246) 324914.00N0854311.30W (13.4NM ESE ALX) 1017.1FT (265.1FT AGL) U/S 2409270540-2412260400
6/26/241400Z !ALX 06/025 ALX OBST CRANE (ASN 2024-ASO-1098-OE) 325502N0855846W (0.8NM W ALX) 864FT (240FT AGL) FLAGGED AND LGTD 2406261400-2412261600
FDC
9/21/231252Z !FDC 3/3003 ALX IAP THOMAS C RUSSELL FLD, ALEXANDER CITY, AL.
RNAV (GPS) RWY 18, AMDT 2A...
LPV DA NA.
2309211252-2509261252EST
No
MON-FRI 0800-1700
CITY OF ALEXANDER CITY
PO BOX 552
ALEXANDER CITY, AL 35011
Phone: (256) 329-9057
JACKSON HATTON
965 T.C. RUSSELL FIELD
ALEXANDER CITY, AL 35010
Phone: 256-329-9057
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ALX
--
ACTVT REIL RWY 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Pilot Instruction
Aircraft Rental

Runway 18/36

5422 ft. x 96 ft.
ASPH
Fair
GRVD
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 178°358°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 55' 20"N 32° 54' 26"N
Longitude 85° 57' 48"W 85° 57' 45"W
Elevation 686' 612'
Threshold Crossing Height 57 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-3TWY LGTS FOR TWY TURNOFF ONLY.
A110-4FOR CD CTC MONTGOMERY APCH AT 334-284-4575. WHEN APCH CLSD FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
THOMAS C RUSSELL FLD (ICAO: KALX, IATA: ALX) is a public airport located in ALEXANDER CITY, AL.
