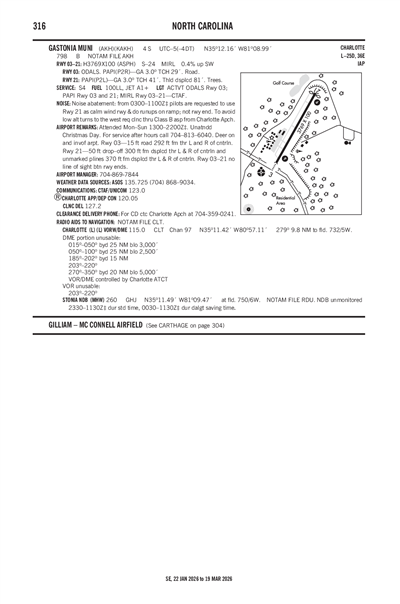

GASTONIA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAKH
ICAO KAKHLocal AKH
GASTONIA MUNI
PublicPUB

4 miles S of GASTONIA, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 12' 09"N 81° 08' 60"W
Elevation
798' MSL
Pattern Alt
1798' MSL
Mag Variation
8°W
Declination
6°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KAKH VFR
10:54 PM EST
Clear
8sm
47°F
45°F
30.32"Hg
Calm
AO2 SLP271 T00830072
METAR KAKH 040354Z AUTO 00000KT 8SM CLR 08/07 A3032 RMK AO2 SLP271 T00830072
+ Add Your Business

KAKH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.725
(704) 868-9034

Common

CTAF 123.0
ACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 127.2
CD FREQ 127.2 OTS INDEFLY AT GASTONIA MUNI (AKH), GASTONIA, NC.

Arrival

JOOLS STAR 135.6
RASLN STAR 126.15

Approach

CHARLOTTE APPROACH 120.05

Departure

BARMY DP 120.05
BEAVY DP 120.05
BOBZY DP 120.05
CHARLOTTE DEPARTURE 120.05
ESTRR DP 120.05
ICONS DP 120.05
JOJJO DP 120.05
KERMIT DP 120.05
KILNS DP 120.05
KNIGHTS DP 120.05
KRITR DP 120.05
KWEEN DP 120.05
LILLS DP 120.05
WEAZL DP 120.05

Terminal Area Forecast

KCLT (10nm)
Tue, 3/3 9:03 PM EST
Tue, 3/3 9:00 PM EST - Thu, 3/5 1:00 AM EST
VFR
9:00 PM EST - 11:00 PM EST
Scattered 25,000'
6sm
210° 3kts
MVFR
11:00 PM EST - 1:00 AM EST
Broken 2,300'
6sm
220° 3kts
MVFR
1:00 AM EST - 6:00 AM EST
Broken 1,900'
6sm
210° 3kts
VFR
6:00 AM EST - 9:00 AM EST
Mist
Broken 12,000'
Scattered 2,000'
6sm
230° 3kts
VFR
9:00 AM EST - 12:00 AM EST
Scattered 4,000'
6sm
220° 6kts
MVFR
12:00 AM EST - 1:00 AM EST
Broken 2,900'
6sm
200° 4kts
TAF KCLT 040203Z 0402/0506 21003KT P6SM SCT250
   FM040400 22003KT P6SM BKN023
   FM040600 21003KT P6SM BKN019
   FM041100 23003KT 6SM BR SCT020 BKN120
   FM041400 22006KT P6SM SCT040
   FM050500 20004KT P6SM BKN029
KAKH
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1400Z
2/27/26
2200Z
!AKH 02/008 AKH AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF AKH SFC-3500FT AGL ACFT CS FLC67
2602271400-2602272200
2/22/26
1228Z
5/24/26
0500Z
!AKH 02/007 AKH OBST TOWER LGT (ASR 1045065) 350747.40N0811628.40W (7.6NM SW AKH) 1540.0FT (443.9FT AGL) U/S 2602221228-2605240500
2/19/26
1908Z
4/5/26
1907Z
!AKH 02/006 AKH OBST TOWER LGT (ASR 1056284) 350840.00N0811332.00W (5.2NM SW AKH) 1065.0FT (268.0FT AGL) U/S 2602191908-2604051907
2/16/26
1106Z
5/17/26
0500Z
!AKH 02/005 AKH OBST TOWER LGT (ASR 1005931) 351113.30N0811232.20W (3.1NM WSW AKH) 1065.0FT (314.0FT AGL) U/S 2602161106-2605170500
2/4/26
0747Z
3/2/26
2359Z
!AKH 02/002 AKH OBST TOWER LGT (ASR 1005061) 351750.00N0810655.00W (6.0NM NNE AKH) 1483.9FT (224.1FT AGL) U/S 2602040747-2603022359
1/25/26
2315Z
3/11/26
2315Z
!AKH 01/009 AKH OBST TOWER LGT (ASR 1008247) 351357.00N0811634.00W (6.4NM WNW AKH) 1848.1FT (268.0FT AGL) U/S 2601252315-2603112315
1/19/26
1454Z
7/31/26
2359Z
!AKH 01/007 AKH OBST TOWER (ASR 1332043) 351325.70N0811130.10W (2.41NM NW AKH) 994FT (199FT AGL) U/S NOT FLAGGED NOT LGT 2601191454-2607312359
1/5/26
1302Z
4/6/26
0500Z
!AKH 01/001 AKH OBST TOWER LGT (ASR 1000283) 351042.30N0811137.90W (2.6NM SW AKH) 993.8FT (318.9FT AGL) U/S 2601051302-2604060500
12/11/25
1525Z
Runway!AKH 12/003 AKH RWY 03 ALS U/S 2512111525-2605122111EST
12/11/25
1524Z
Runway!AKH 12/002 AKH RWY 21 PAPI U/S 2512111524-2605122111EST
FDC
2/12/26
1941Z
9/24/26
1941Z
!FDC 6/3438 AKH SID GASTONIA MUNI, GASTONIA, NC.
KNIGHTS THREE DEPARTURE...
PEKNN TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SDZ VOR OUT OF SERVICE. 2602121941-2609241941EST
3/12/25
1638Z
!FDC 5/2212 AKH IAP GASTONIA MUNI, GASTONIA, NC.
NDB RWY 3, AMDT 9A...
S-3 CAT A VIS 1 SM.
NOTE: PROCEDURE NA AT NIGHT.
NOTE: RWY 3 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2503121638-2710221638EST
3/12/25
1633Z
!FDC 5/2211 AKH IAP GASTONIA MUNI, GASTONIA, NC.
RNAV (GPS) RWY 3, AMDT 1B...
LPV DA NA.
NOTE: PROCEDURE NA AT NIGHT.
NOTE: RWY 3 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
2503121633-2710221633EST
3/21/24
0901Z
!FDC 4/9225 AKH SID GASTONIA MUNI, GASTONIA, NC.
KNIGHTS THREE DEPARTURE ...
ANDYS TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
3/21/24
0901Z
!FDC 4/9224 AKH SID GASTONIA MUNI, GASTONIA, NC.
KERMIT FOUR DEPARTURE ...
ANDYS TRANSITION, TREAL TRANSITION: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. CLT VOR/DME 185-205 UNUSABLE. 2403210901-2603211732EST
No
MON-SUN 0800-1700
UNATNDD CHRISTMAS DAY.
FOR SERVICE AFTER HOURS CALL 704-813-6040
CITY OF GASTONIA
PO BOX 1748
GASTONIA, NC 28053
Phone: (704) 214-9160
STEVE HUSS
1126 GASTON DAY SCHOOL ROAD
GASTONIA, NC 28056
Phone: 704-869-7844
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
AKH
--
ACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service

Runway 03/21

3769 ft. x 100 ft.
ASPH
Good
NONE
MED

24,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 35° 11' 53"N 35° 12' 26"N
Longitude 81° 09' 10"W 81° 08' 49"W
Elevation 796' 780'
Threshold Crossing Height 29 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights
A11STEVE HUSS.
A110-2RWY 03 - 15 FT ROAD 292 FT FM THR L & R OF CNTRLN.
A110-3RWY 21 - 50 FT DROP-OFF 300 FT FM DSPLCD THR L&R OF CNTRLN AND UNMKD PLINES 370 FT FM DSPLCD THR L&R OF CNTRLN.
A110-4NOISE ABATEMENT: FROM 2200-0600 PILOTS ARE REQUESTED TO USE RWY 21 AS CALM WIND RWY & DO RUNUPS ON RAMP; NOT RWY END. TO AVOID LOW ALT TURNS TO THE WEST REQ CLNC THRU CLASS B ASP FROM CHARLOTTE APCH.
A110-5DEER ON & INVOF ARPT.
A110-6FOR CD CTC CHARLOTTE APCH AT 704-359-0241.
A110-7RWY 03/21 NO LINE OF SIGHT BTN RWY ENDS.
A17-D1UNATNDD CHRISTMAS DAY.
A17-H1FOR SERVICE AFTER HOURS CALL 704-813-6040
A57-21APCH SLOPE 43:1 TO DSPLCD THR DUE TO 66 FT TREES LOCATED 3099 FT FRM DSPLCD THR OFFSET 796 FT RIGHT OF CNTRLN.
A58-2110 FT BRUSH 82 FT FM END OF RWY 105 FT RIGHT OF CNTRLN.
A81-APTACTVT ODALS RWY 03; PAPI RWY 03 & 21; MIRL RWY 03/21 - CTAF.
GASTONIA MUNI (ICAO: KAKH, IATA: AKH) is a public airport located in GASTONIA, NC, US.
