KAJZ
BLAKE FLD
PublicPUB

3 miles N of DELTA, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 47' 08"N 108° 03' 43"W
5193' MSL
6200' MSL
10E
JET A, 100LL
DENVER (DEN)
DENVER
DENVER (ZDV)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KAJZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
970-874-3251
 134.0

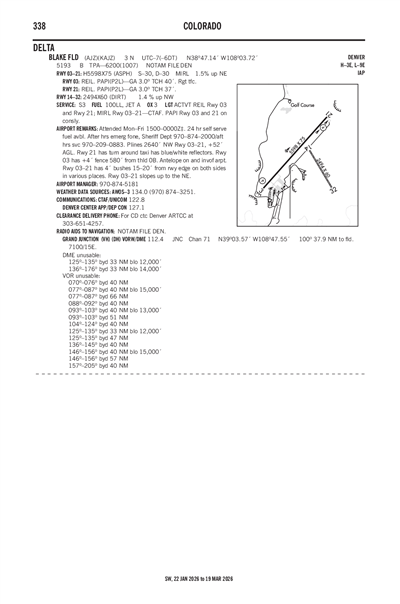

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KAJZ
Domestic
9/21/182200Z !DEN 09/464 AJZ RWY 14/32 COMMISSIONED 2494FT X 60FT DIRT NOT LGTD.
DECLARED DIST: RWY 14 TORA 2494FT TODA 2494FT ASDA 2494FT LDA
2494FT. RWY 32 TORA 2494FT TODA 2494FT ASDA 2494FT LDA 2494FT.
1809212200-PERM
FDC
2/13/232105Z !FDC 3/5497 AJZ IAP BLAKE FLD, DELTA, CO.
RNAV (GPS) RWY 3, ORIG-A...
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE MONTROSE ALTIMETER SETTING: INCREASE #LPV DA TO 5529 FEET AND VISIBILITY ALL CATS 3/8 SM, INCREASE LPV DA TO 5670 FEET AND VISIBILITY ALL CATS 1/2 SM, INCREASE LNAV/VNAV DA TO 5979 FEET AND VISIBILITY ALL CATS 1/2 SM. INCREASE ALL LNAV MDA 140 FEET AND VISIBILITY CAT B 1/4 SM, CAT C 1/2 SM AND CIRCLING CAT A 1/4 SM.
2302132105-2502142105EST
No
MON-FRI 0800-1700
AFT HRS EMERG FONE, SHERIFF DEPT 970-874-2000/AFT HRS SVC 970-209-0883.
COUNTY OF DELTA
DELTA COUNTY
DELTA, CO 81416
Phone: (970) 874-5181
MARK HUSMANN
870 - 1575 ROAD
DELTA, CO 81416
Phone: 970-874-5181
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 03 & 21; MIRL RWY 03/21 - CTAF. PAPI RWY 03 & 21 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Minor
High Pressure
None
Air Ambulance
Glider Service
Pilot Instruction
Aircraft Rental
Glider Towing

Runway 03/21

5598 ft. x 75 ft.
ASPH
Good
NONE
MED

30,000lbs
30,000lbs
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 46' 50"N 38° 47' 32"N
Longitude 108° 04' 13"W 108° 03' 26"W
Elevation 5,111' 5,193'
Threshold Crossing Height 40 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

2494 ft. x 60 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 149°329°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 47' 12"N 38° 46' 51"N
Longitude 108° 03' 38"W 108° 03' 22"W
Elevation 5,152' 5,116'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ANTELOPE ON AND INVOF ARPT.
A110-3RY 21 HAS TURN AROUND TAXI HAS BLUE/WHITE REFLECTORS.
A110-4RY 03/21 SLOPES UP TO THE NE.
A110-5RY 03/21 HAS 4 FT BUSHES 15-20 FT FROM RY EDGE ON BOTH SIDES IN VARIOUS PLACES.
A110-624 HOUR SELF SERVE FUEL AVBL.
A110-7RY 3 HAS +4 FT FENCE 580 FT FM THLD OB.
A110-8POWER LINES 2640' NW RY 03/21, +52 FT AGL.
A110-9FOR CD CTC DENVER ARTCC AT 303-651-4257.
BLAKE FLD (ICAO: KAJZ, IATA: AJZ) is a public airport located in DELTA, CO.
