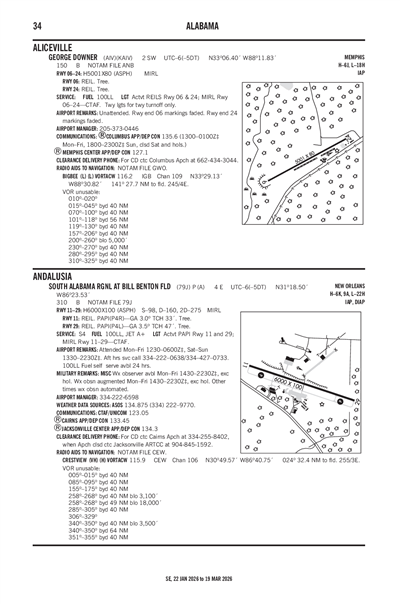

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAIV
GEORGE DOWNER
PublicPUB

2 miles SW of ALICEVILLE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 06' 24"N 88° 11' 50"W
150' MSL
1150' MSL
02W
100LL
ANNISTON (ANB)
MEMPHIS
MEMPHIS (ZME)
7/11/24-8/8/24
KGTR (29nm) VFR
4:56 AM CDT
Clear
10sm
62°F
62°F
29.93"Hg
Calm
AO2 SLP138 T01670167
KGTR 190956Z AUTO 00000KT 10SM CLR 17/17 A2993 RMK AO2 SLP138 T01670167
Add Your Business

KAIV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGTR (29nm)
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 1:00 AM CDT
Sky Clear
6sm
350° 4kts
KGTR 190520Z 1906/2006 35004KT P6SM SKC
KAIV
Domestic
9/10/240434Z !ANB 09/261 AIV OBST TOWER LGT (ASR 1255429) 325734.60N0881359.50W (9.0NM SSW AIV) 428.1FT (260.2FT AGL) U/S 2409100434-2409250334
5/13/241824Z !ANB 05/612 AIV RWY 06 RWY END ID LGT U/S 2405131824-2411132111EST
FDC
7/10/231252Z !FDC 3/3633 AIV IAP GEORGE DOWNER, ALICEVILLE, AL.
RNAV (GPS) RWY 24, ORIG-A...
LNAV MDA 820/HAT 670 ALL CATS. VISIBILITY CATS C/D 1 7/8.
CIRCLING MDA CATS A/B 820/HAA 670.
2307101252-2507101252EST
No
UNATNDD
CITY OF ALICEVILLE
451 MEMORIAL DR
ALICEVILLE, AL 35442
Phone: 205-373-6611
LARRY POTTS
11135 HWY 17
ALICEVILLE, AL 35442
Phone: 205-373-0446
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
ANB
--
ACTVT REILS RWY 06 & 24; MIRL RWY 06/24 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
7
1
0
0
0
0
None
None
None
None
None

Runway 06/24

5001 ft. x 80 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 06 Runway 24
True Heading 62°242°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition POOR POOR
Latitude 33° 06' 13"N 33° 06' 36"N
Longitude 88° 12' 16"W 88° 11' 24"W
Elevation 143' 150'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1TWY LGTS FOR TWY TURNOFF ONLY.
A110-2FOR CD CTC COLUMBUS APCH AT 662-434-3044.
GEORGE DOWNER (ICAO: KAIV, IATA: AIV) is a public airport located in ALICEVILLE, AL.
