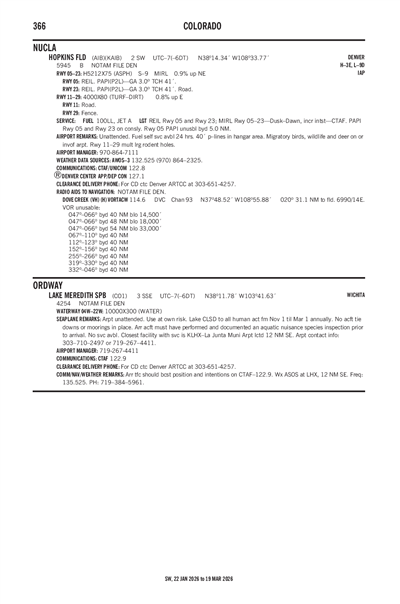

HOPKINS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAIB
ICAO KAIBLocal AIB
HOPKINS FLD
PublicPUB

2 miles SW of NUCLA, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 14' 20"N 108° 33' 46"W
Elevation
5945' MSL
Pattern Alt
6945' MSL
Mag Variation
9°E
Declination
11°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KAIB VFR
8:55 PM MST
Clear
10sm
44°F
24°F
30.22"Hg
Calm
AO2 T00651043 401360010
METAR KAIB 040355Z AUTO 00000KT 10SM CLR 07/M04 A3022 RMK AO2 T00651043 401360010
+ Add Your Business

KAIB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 132.525
(970) 864-2325

Common

CTAF 122.8
REIL RWY 05 & 23; MIRL RWY 5/23 - DUSK-DAWN, INCR INTST - CTAF. PAPI RWY 05 & 23 ON CONSLY.
UNICOM 122.8

Center

DENVER CENTER 127.1
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 127.1(MONTROSE RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KMTJ (35nm)
Tue, 3/3 4:22 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Scattered 11,000'
6sm
310° 15kts
Gusts 19kts
VFR
7:00 PM MST - 8:00 PM MST
Few 20,000'
Few 8,000'
6sm
270° 7kts
VFR
8:00 PM MST - 9:00 AM MST
Few 25,000'
6sm
150° 6kts
VFR
9:00 AM MST - 1:00 PM MST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM MST - 5:00 PM MST
Sky Clear
6sm
330° 5kts
TAF KMTJ 032322Z 0400/0424 31015G19KT P6SM SCT110
   FM040200 27007KT P6SM FEW080 FEW200
   FM040300 15006KT P6SM FEW250
   FM041600 VRB03KT P6SM SKC
   FM042000 33005KT P6SM SKC
KAIB
EffectiveExpiresCategoryNOTAM
Domestic
12/11/25
1912Z
!DEN 12/410 AIB SVC AUTOMATED WX BCST SYSTEM WIND UNREL 2512111912-2606172359EST
FDC
6/10/24
1926Z
!FDC 4/6280 AIB IAP HOPKINS FLD, NUCLA, CO.
RNAV (GPS)-A, AMDT 1...
DISREGARD PLANVIEW NOTE: ALL ARRIVALS ON V244 DESCEND TO 12000 IN PAROX HOLDING PATTERN BEFORE DEPARTING PAROX.
DISREGARD ARRIVAL HOLDING AT PAROX: HOLD NW, LT, 139.70 INBOUND, 12000.
2406101926-2606101926EST
No
UNATNDD
COUNTY OF MONTROSE
BOX 997
MONTROSE, CO 81401
Phone: 970-249-3203
LLOYD ARNOLD
BOX 58
NUCLA, CO 81424
Phone: 970-864-7111
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
REIL RWY 05 & 23; MIRL RWY 5/23 - DUSK-DAWN, INCR INTST - CTAF. PAPI RWY 05 & 23 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 05/23

5212 ft. x 75 ft.
ASPH
Excellent
NONE
MED

9,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 59°239°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR GOOD
Latitude 38° 14' 08"N 38° 14' 35"N
Longitude 108° 34' 14"W 108° 33' 19"W
Elevation 5,898' 5,945'
Threshold Crossing Height 41 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 11/29

4000 ft. x 80 ft.
TURF DIRT
Poor
NONE


--
--
--
--
  Runway 11 Runway 29
True Heading 124°304°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition GOOD GOOD
Latitude 38° 14' 30"N 38° 14' 08"N
Longitude 108° 34' 06"W 108° 33' 25"W
Elevation 5,899' 5,930'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-240 FT PLINES IN HANGAR AREA.
A110-6MIGTATORY BIRDS, WILDLIFE & DEER ON OR INVOF ARPT.
A110-7FOR CD CTC DENVER ARTCC AT 303-651-4257.
A33-11/29_CONDMULT LRG RODENT HOLES.
A43-05PAPI UNUSBL BYD 5.0 NM.
A70-100LLFUEL SELF-SERVICE AVBL 24 HRS.
A81-APTREIL RWY 05 & 23; MIRL RWY 5/23 - DUSK-DAWN, INCR INTST - CTAF. PAPI RWY 05 & 23 ON CONSLY.
HOPKINS FLD (ICAO: KAIB, IATA: AIB) is a public airport located in NUCLA, CO, US.
