No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAIA
ALLIANCE MUNI
PublicPUB

3 miles SE of ALLIANCE, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 03' 12"N 102° 48' 13"W
3931' MSL
4931' MSL
07E
JET A, 100LL
COLUMBUS (OLU)
CHEYENNE
DENVER (ZDV)
7/11/24-8/8/24
KAIA VFR
4:53 AM MDT
Clear
10sm
42°F
38°F
29.94"Hg
280° 8kts
AO2 SLP106 T00560033
KAIA 191053Z AUTO 28008KT 10SM CLR 06/03 A2994 RMK AO2 SLP106 T00560033
Add Your Business

KAIA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
308-762-1221
 135.075

FAA A/FD Pages

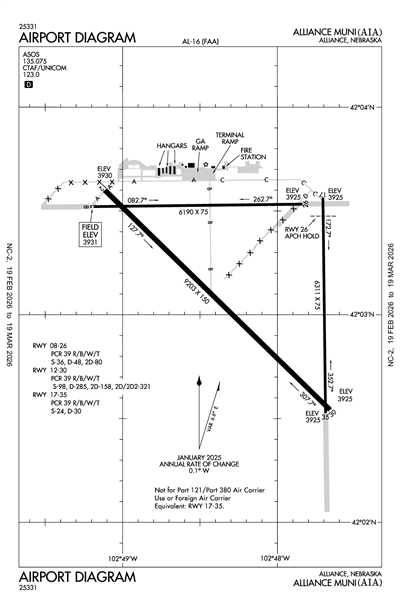

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAIA
Wed, 9/18 11:20 PM MDT
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 6:00 PM MDT
Sky Clear
6sm
280° 10kts
VFR
6:00 PM MDT - 12:00 AM MDT
Sky Clear
6sm
VRB° 5kts
KAIA 190520Z 1906/2006 28010KT P6SM SKC
   FM200000 VRB05KT P6SM SKC
KAIA
Domestic
9/18/241600Z !AIA 09/037 AIA RWY 08/26 CLSD 2409181600-2409190100
9/18/241600Z !AIA 09/036 AIA TWY ALL CLSD 2409181600-2409190100
9/18/240500Z !AIA 09/028 AIA COM REMOTE COM OUTLET 122.3 U/S 2409180500-2409181100
9/17/242317Z !AIA 09/040 AIA TWY B BTN RWY 12/30 AND RWY 08/26 CLSD 2409172317-2409200100
9/17/242316Z !AIA 09/039 AIA TWY C BTN APCH END RWY 17 AND TWY D CLSD 2409172316-2409200100
9/17/242314Z !AIA 09/038 AIA RWY 17/35 CLSD 2409172314-2409240100
9/11/241306Z !AIA 09/024 AIA TWY A BTN APCH END RWY 12 AND WEST RAMP WEST ACCESS CLSD 2409111306-2409190100
9/11/241300Z !AIA 09/018 AIA RWY 12/30 CLSD 2409111300-2409201300
9/11/241300Z !AIA 09/010 AIA RWY 12 VASI U/S 2409111300-2409201800
9/11/241300Z !AIA 09/009 AIA RWY 30 PAPI U/S 2409111300-2409201800
9/11/241300Z !AIA 09/008 AIA RWY 12 RWY END ID LGT U/S 2409111300-2409201800
9/11/241300Z !AIA 09/007 AIA NAV ILS RWY 30 U/S 2409111300-2409201800
9/10/242247Z !AIA 09/020 AIA TWY A BTN APCH END RWY 08 AND APCH END RWY 12 CLSD 2409102247-2409190100
9/9/241008Z !AIA 09/017 AIA OBST TOWER LGT (ASR 1024344) 420246.00N1031010.00W (16.3NM W AIA) 4443.9FT (298.9FT AGL) U/S 2409091008-2410092359
9/4/240318Z !AIA 09/005 AIA COM REMOTE COM OUTLET 122.3 U/S 2409040318-2410182000EST
9/3/241428Z !AIA 09/001 AIA AD AP ALL SFC WIP GRASS CUTTING 2409031428-2409302200
8/12/242013Z !AIA 08/010 AIA RWY 30 RAI LGT U/S 2408122013-2411302000EST
7/26/241704Z !AIA 07/028 AIA OBST TOWER LGT (ASR 1238064) 415027.90N1030428.80W (17.6NM SW AIA) 5749.0FT (1478.0FT AGL) U/S 2407261704-2410312359
No
ALL
CITY OF ALLIANCE
PO BOX D
ALLIANCE, NE 69301
Phone: 308-762-5400
MS LYNN PLACEK
5631 SARPY ROAD, PO BOX D
ALLIANCE, NE 69301
Phone: 308-762-4512
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
AIA
--
ACTVT MALSR RWY 30; REIL RWY 12; VASI RWY 12; PAPI RWY 30 & MIRL RWY 12/30 & 08/26 -CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
50
3
0
0
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 08/26

6190 ft. x 75 ft.
ASPH
Good
PFC
MED
28 /F/A/W/U
36,000lbs
48,000lbs
80,000lbs
--
  Runway 08 Runway 26
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 03' 31"N 42° 03' 32"N
Longitude 102° 49' 12"W 102° 47' 50"W
Elevation 3,931' 3,925'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

9203 ft. x 150 ft.
ASPH
Excellent
AFSC
MED
42 /F/A/W/U
36,000lbs
48,000lbs
80,000lbs
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 42° 03' 36"N 42° 02' 33"N
Longitude 102° 49' 07"W 102° 47' 40"W
Elevation 3,930' 3,924'
Threshold Crossing Height 39 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 17/35

6311 ft. x 75 ft.
ASPH
Poor
NONE

17 /F/A/W/U
24,000lbs
30,000lbs
--
--
  Runway 17 Runway 35
True Heading 179°359°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 42° 03' 34"N 42° 02' 32"N
Longitude 102° 47' 42"W 102° 47' 41"W
Elevation 3,925' 3,925'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1RY 17/35 UNAVBL FOR USE BY AIR CARRIERS.
A110-10FOR CD IF UNA TO CTC ON FSS FREQ, CTC DENVER ARTCC AT 303-651-4257.
A110-2ULTRALIGHT & GLIDER OPNS ON & INVOF ARPT.
A110-3AERIAL SPRAYING OPNS ON & INVOF ARPT.
A110-5RY 08/26 DESIGNATED CALM WIND.
A110-6HAYING OPNS ON INTERIOR OF ARPT DURG SUMMER MONTHS.
A110-7OCCASIONAL USE BY ACFT WITH NO RADIO.
A110-8BACK TAXIING.
A110-9MIGRATORY WATERFOWL ON & INVOF ARPT.
ALLIANCE MUNI (ICAO: KAIA, IATA: AIA) is a public airport located in ALLIANCE, NE.
