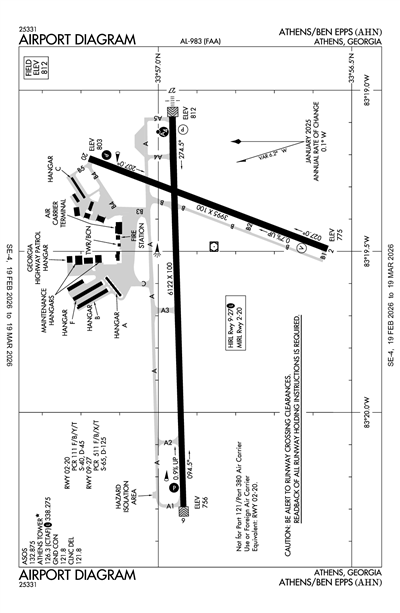

ATHENS/BEN EPPS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAHN
ICAO KAHNIATA AHNLocal AHN
ATHENS/BEN EPPS
PublicPUB

3 miles E of ATHENS, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 56' 55"N 83° 19' 33"W
Elevation
812' MSL
Pattern Alt
1804' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A, JET A-1, 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KAHN MVFR
3:51 AM EST
Overcast 1,200'
10sm
53°F
50°F
30.30"Hg
070° 4kts
AO2 SLP262 T01170100 58006
METAR KAHN 040851Z AUTO 07004KT 10SM OVC012 12/10 A3030 RMK AO2 SLP262 T01170100 58006
+ Add Your Business

KAHN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 132.875
(706) 363-3481

Common

CTAF 126.3
ACTVT MALSF RWY 27; PAPI RWY 09 & 20 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. RWY 2 & 20 LGTS NOT AVBL WHEN ATCT IS CLSD.
UNICOM 122.95

Clearance

Clearance Delivery 121.8

Ground

ATHENS GROUND 121.8
0800-2000

Tower

ATHENS TOWER 126.3
0800-2000

Approach

ATLANTA APPROACH 132.475
0615-2200

Departure

ATLANTA DEPARTURE 132.475
0615-2200

Center

ATLANTA CENTER 134.8
LOW, APCH/DEP SVC AND CLNC DEL PRVDD BY ATLANTA TRACON (A80) ON FREQS 132.475/291.1 0615-2200; APCH/DEP SVC PRVDD BY ATLANTA ARTCC (ZTL) ON FREQS 134.8/379.95, 2200-0615 (FOOTHILLS RCAG).

Flight Service

Flight Service 122.1
(MCN)

Terminal Area Forecast

KAHN
Wed, 3/4 3:26 AM EST
Wed, 3/4 3:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
3:00 AM EST - 5:00 AM EST
Overcast 1,200'
6sm
060° 3kts
IFR
5:00 AM EST - 9:00 AM EST
Mist
Broken 600'
4sm
110° 3kts
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Overcast 300'
1sm
Calm
IFR
9:00 AM EST - 11:00 AM EST
Overcast 1,500'
Broken 800'
6sm
150° 4kts
MVFR
11:00 AM EST - 1:00 PM EST
Broken 7,000'
Broken 2,500'
6sm
170° 5kts
VFR
1:00 PM EST - 1:00 AM EST
Scattered 12,000'
Scattered 3,500'
6sm
170° 6kts
TAF KAHN 040826Z 0408/0506 06003KT P6SM OVC012
   FM041000 11003KT 4SM BR BKN006
   TEMPO 0410/0414 1SM BR OVC003
   FM041400 15004KT P6SM BKN008 OVC015
   FM041600 17005KT P6SM BKN025 BKN070
   FM041800 17006KT P6SM SCT035 SCT120
KAHN
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1216Z
5/27/26
0500Z
!AHN 02/015 AHN OBST TOWER LGT (ASR 1220331) 335908.60N0831842.80W (2.3NM NNE AHN) 986.2FT (204.1FT AGL) U/S 2602261216-2605270500
2/25/26
2130Z
4/11/26
2129Z
!AHN 02/013 AHN OBST TOWER LGT (ASR 1326247) 340638.33N0831542.04W (10.3NM NNE AHN) 1100FT (305FT AGL) U/S 2602252130-2604112129
1/5/26
1053Z
Runway!AHN 01/002 AHN RWY 02 VASI U/S 2601051053-2606012359EST
12/29/25
0120Z
3/28/26
0500Z
!AHN 12/019 AHN OBST TOWER LGT (ASR 1020254) 335710.30N0832432.20W (4.1NM W AHN) 1030.8FT (265.1FT AGL) U/S 2512290120-2603280500
12/18/25
1604Z
12/17/26
2359Z
!AHN 12/015 AHN AD AP ALL SFC WIP MAINT VEHICLES 2512181604-2612172359
12/18/25
1535Z
12/16/26
2359Z
!AHN 12/014 AHN AD ALL SFC WIP GRASS CUTTING 2512181535-2612162359
7/15/25
1635Z
7/1/26
2359Z
Runway!AHN 07/015 AHN RWY 09 LEAD ON MARKINGS NOT STD 2507151635-2607012359
7/15/25
1633Z
7/1/26
2359Z
Runway!AHN 07/014 AHN RWY 27 LEAD ON MARKINGS NOT STD 2507151633-2607012359
7/15/25
1631Z
7/1/26
2359Z
Runway!AHN 07/013 AHN RWY 27 LEAD OFF MARKINGS NOT STD 2507151631-2607012359
7/15/25
1631Z
7/1/26
2359Z
Runway!AHN 07/012 AHN RWY 09 LEAD OFF MARKINGS NOT STD 2507151631-2607012359
7/10/25
1534Z
3/21/26
2359Z
Runway!AHN 07/010 AHN RWY 09/27 CL MARKING NOT STD 2507101534-2603212359
FDC
2/25/26
1700Z
!FDC 6/0036 AHN IAP ATHENS/BEN EPPS, ATHENS, GA.
RNAV (GPS) RWY 9, AMDT 2...
LNAV 1280/HAT 502 ALL CATS. CIRCLING CAT A MDA 1280/HAA 467. VDP 1.5 NM TO RW09. TEMPORARY CRANE 962 MSL 2.0NM W OF RWY 9 (2025-ASO-15371-OE).
2602251700-2610151700EST
3/17/25
1932Z
!FDC 5/4133 AHN IAP ATHENS/BEN EPPS, ATHENS, GA.
VOR RWY 2, AMDT 11D...
MISSED APPROACH: CLIMB TO 2100 THEN CLIMBING RIGHT TURN TO 2500 DIRECT AHN VOR/DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 2500.
2503171932-2703171932EST
3/8/25
1707Z
!FDC 5/0614 AHN IAP ATHENS/BEN EPPS, ATHENS, GA.
RNAV (GPS) RWY 27, AMDT 1B...
PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 44).
2503081707-2703081707EST
3/8/25
1707Z
!FDC 5/0613 AHN IAP ATHENS/BEN EPPS, ATHENS, GA.
ILS OR LOC/DME RWY 27, AMDT 2C...
PROFILE NOTE: VGSI AND ILS GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 44).
2503081707-2703081707EST
Yes
0600-2100
CLARKE COUNTY
PO BOX 448, CO COURTHOUSE
ATHENS, GA 30601
Phone: 706-613-3420
MIKE MATTHEWS
1010 BEN EPPS DRIVE
ATHENS, GA 30605
Phone: 706-613-3416
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
AHN
--
ACTVT MALSF RWY 27; PAPI RWY 09 & 20 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. RWY 2 & 20 LGTS NOT AVBL WHEN ATCT IS CLSD.
N/A
Yes
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

3995 ft. x 100 ft.
ASPH
Excellent
NONE
MED

40,000lbs
45,000lbs
--
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 56' 34"N 33° 57' 11"N
Longitude 83° 19' 30"W 83° 19' 13"W
Elevation 775' 803'
Threshold Crossing Height 39 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

6122 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

65,000lbs
125,000lbs
--
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 33° 56' 56"N 33° 56' 58"N
Longitude 83° 20' 18"W 83° 19' 05"W
Elevation 756' 812'
Threshold Crossing Height 39 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights No
A110-3NOISE SENSITIVE AREA S OF ARPT; CTC FBO FOR INFORMATION.
A110-6CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP 24 HRS PPR CALL AMGR 706-613-3420.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC ATLANTA APCH AT 678-364-6131, WHEN ATCT CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A26INDEX B ARFF EQPT IS AVBL.
A30-02/20RWY 02/20 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-02/20PCR VALUE: 111/F/B/Y/T
A39-09/27PCR VALUE: 511/F/B/X/T
A81-APTACTVT MALSF RWY 27; PAPI RWY 09 & 20 - CTAF. WHEN ATCT CLSD HIRL RWY 09/27 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. RWY 2 & 20 LGTS NOT AVBL WHEN ATCT IS CLSD.
ATHENS/BEN EPPS (ICAO: KAHN, IATA: AHN) is a public airport located in ATHENS, GA, US.
