KAGC
ALLEGHENY COUNTY
PublicPUB

4 miles SE of PITTSBURGH, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 21' 16"N 79° 55' 45"W
1252' MSL
2252' MSL
09W
JET A, JET A (FSII), 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
7/11/24-8/8/24
KAGC VFR
6:53 AM EDT
Overcast 3,900'
8sm
64°F
60°F
29.99"Hg
Calm
AO2 SLP153 T01780156
KAGC 191053Z 00000KT 8SM OVC039 18/16 A2999 RMK AO2 SLP153 T01780156
Add Your Business

KAGC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 120.55

ASOS

ASOS
412-466-8968
 120.55

Ground

GND/P
 121.7

Tower

LCL/P
 121.1

FAA A/FD Pages

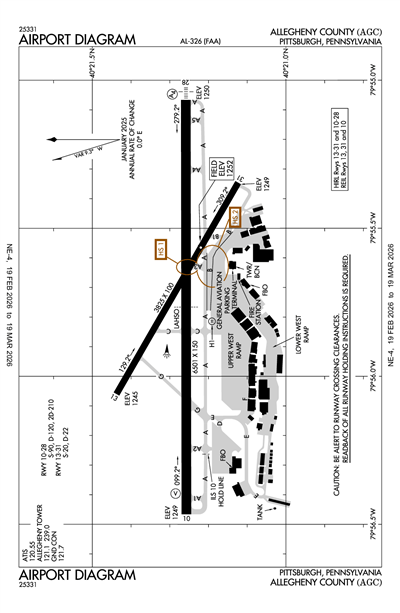

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAGC
Thu, 9/19 5:06 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
5:00 AM EDT - 8:00 AM EDT
Broken 4,000'
6sm
070° 3kts
VFR
8:00 AM EDT - 4:00 PM EDT
Broken 10,000'
Scattered 4,000'
6sm
070° 5kts
VFR
4:00 PM EDT - 2:00 AM EDT
Scattered 15,000'
6sm
050° 5kts
KAGC 190906Z 1909/2006 07003KT P6SM BKN040
   FM191200 07005KT P6SM SCT040 BKN100
   FM192000 05005KT P6SM SCT150
KAGC
Domestic
9/18/241300Z !AGC 09/044 AGC NAV ILS RWY 28 U/S 2409181300-2409181800
9/18/241300Z !AGC 09/043 AGC NAV ILS RWY 10 U/S 2409181300-2409181800
9/16/241525Z !AGC 09/041 AGC RWY 28 RAI LGT U/S 2409161525-2506262000EST
9/13/241324Z !AGC 09/035 AGC OBST TOWER LGT (ASR 1028562) 402819.20N0795939.60W (7.7NM NNW AGC) 2048.9FT (863.8FT AGL) U/S 2409131324-2412120400
9/5/242343Z !AGC 09/018 AGC OBST TOWER LGT (ASR 1034045) 403033.00N0800022.00W (9.9NM NNW AGC) 1424.9FT (249.0FT AGL) U/S 2409052343-2410202343
9/3/240117Z !AGC 09/004 AGC OBST TOWER LGT (ASR 1022324) 402646.00N0795750.00W (5.7NM NNW AGC) 1734.6FT (569.9FT AGL) U/S 2409030117-2410022359
9/2/241209Z !AGC 09/002 AGC OBST TOWER LGT (ASR 1026012) 402622.00N0800240.20W (7.3NM NW AGC) 1516.1FT (421.9FT AGL) U/S 2409021209-2412010400
8/27/242320Z !AGC 08/062 AGC OBST TOWER LGT (ASR 1032235) 402748.00N0800015.00W (7.4NM NNW AGC) 2046.9FT (846.8FT AGL) U/S 2408272320-2412252320
7/28/240055Z !AGC 07/056 AGC OBST TOWER LGT (ASR 1026176) 402442.20N0795552.20W (3.5NM N AGC) 1662.1FT (472.1FT AGL) U/S 2407280055-2410250400
7/17/241127Z !AGC 07/040 AGC OBST WATERTOWER (ASN UNKNOWN) 402240N0795534W (0.8NM NNW APCH END RWY 28)
1405FT (153FT AGL) NOT LGTD 2407171127-2410311600
7/9/241452Z !AGC 07/020 AGC OBST TOWER LGT (ASR 1025877) 402455.10N0800217.70W (6.1NM NW AGC) 1716.9FT (477.0FT AGL) U/S 2407091452-2410080400
10/15/211324Z !AGC 10/014 AGC APRON MAIN TERMINAL RAMP PRKG 12HR PPR 412-759-7897 2110151324-PERM
FDC
8/15/241318Z !FDC 4/9588 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 28, AMDT 29D...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
8/15/241318Z !FDC 4/9582 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 10, AMDT 7A...
MISSED APPROACH: CLIMB TO 2000 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 279 AND EWC VOR/DME R-187 TO HYETO INT AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2408151318-2503271318EST
6/21/242006Z !FDC 4/1905 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 10, AMDT 7A...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1925.
2406212006-2606212006EST
2/29/241631Z !FDC 4/1220 AGC IAP ALLEGHENY COUNTY, PITTSBURGH, PA.
ILS OR LOC RWY 28, AMDT 29D...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1900.
2402291631-2602281631EST
Yes
ALL
ALLEGHENY CO ARPT AUTHORITY
PO BOX 12370
PITTSBURGH, PA 15231-0370
Phone: 412-472-3500
LANCE BAGNOFF
12 ALLEGHENY COUNTY AIRPORT
WEST MIFFLIN, PA 15122-2656
Phone: 412-466-4327
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
AGC
--
ATC-CTL
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
41
8
21
1
0
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 10/28

6501 ft. x 150 ft.
CONC
Good
GRVD
HIGH

90,000lbs
120,000lbs
210,000lbs
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 21' 15"N 40° 21' 16"N
Longitude 79° 56' 28"W 79° 55' 04"W
Elevation 1,249' 1,250'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 13/31

3825 ft. x 100 ft.
CONC
Good
GRVD
HIGH

20,000lbs
22,000lbs
--
--
  Runway 13 Runway 31
True Heading 120°300°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 21' 26"N 40° 21' 07"N
Longitude 79° 56' 04"W 79° 55' 21"W
Elevation 1,245' 1,249'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway H1

47 ft. x 45 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 97°277°
Traffic Pattern
Markings BSC
Markings Condition GOOD
Latitude 40° 21' 11"N N/A
Longitude 79° 55' 49"W N/A
Elevation 1,255' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3BIRDS & DEER ON & INVOF ARPT.
ALLEGHENY COUNTY (ICAO: KAGC, IATA: AGC) is a public airport located in PITTSBURGH, PA.
