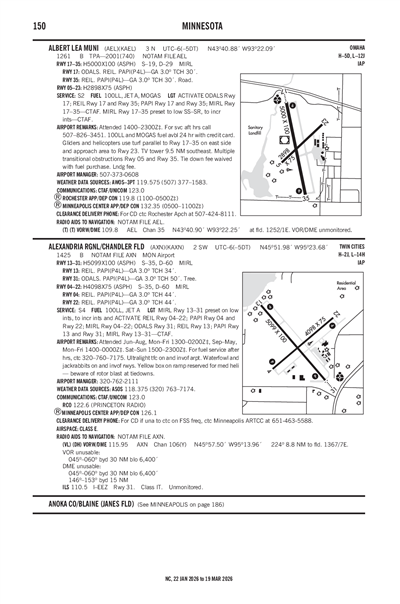

ALBERT LEA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAEL
ICAO KAELIATA AELLocal AEL
ALBERT LEA MUNI
PublicPUB

3 miles N of ALBERT LEA, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 40' 53"N 93° 22' 05"W
Elevation
1261' MSL
Pattern Alt
2001' MSL
Mag Variation
0°
Declination
1°E
Fuel
JET A, 100LL, MOGAS
FSS
PRINCETON (PNM)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KAEL VFR
7:55 PM CST
Clear
8sm
37°F
37°F
30.14"Hg
Calm
AO2 T00250025
METAR KAEL 040155Z AUTO 00000KT 8SM CLR 02/02 A3014 RMK AO2 T00250025
+ Add Your Business

KAEL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.575
(507) 377-1583

Common

CTAF 123.0
ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF. MIRL RWY 17/35 PRESET TO LOW SS-SR TO INCR INTST - CTAF.
UNICOM 123.0

Approach

ROCHESTER APPROACH 119.8

Departure

ROCHESTER DEPARTURE 119.8

Center

ROCHESTER CENTER 132.35
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 132.35/307.3 (ROCHESTER RCAG) WHEN ROCHESTER APCH IS CLSD.

Terminal Area Forecast

KMCW (32nm)
Tue, 3/3 7:50 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
8:00 PM CST - 2:00 AM CST
Fog
Broken 200'
0.5sm
VRB° 4kts
LIFR
2:00 AM CST - 6:00 AM CST
Fog
Overcast 100'
0.25sm
060° 2kts
LIFR
6:00 AM CST - 9:00 AM CST
Mist
Broken 300'
2sm
Calm
MVFR
9:00 AM CST - 6:00 PM CST
Broken 1,600'
6sm
VRB° 3kts
TAF KMCW 040150Z 0402/0424 VRB04KT 1/2SM FG BKN002
   FM040800 06002KT 1/4SM FG OVC001
   FM041200 00000KT 2SM BR BKN003
   FM041500 VRB03KT P6SM BKN016
KAEL
EffectiveExpiresCategoryNOTAM
Domestic
2/9/26
1745Z
6/9/26
1745Z
!AEL 02/002 AEL OBST TOWER LGT (ASR 1226799) 434816.50N0931802.40W (8.0NM NNE AEL) 1605.0FT (316.9FT AGL) U/S 2602091745-2606091745
No
0800-1700
FOR SVC AFT HRS CALL 507-826-3451.
CITY OF ALBERT LEA
221 E CLARK STREET
ALBERT LEA, MN 56007
Phone: 507-377-4300
JIM HANSON
73950 275TH ST.
CLARKS GROVE, MN 56016
Phone: 507-373-0608
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
AEL
--
ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF. MIRL RWY 17/35 PRESET TO LOW SS-SR TO INCR INTST - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

2898 ft. x 75 ft.
ASPH
Good
NONE


--
--
--
--
  Runway 05 Runway 23
True Heading 47°227°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 40' 45"N 43° 41' 04"N
Longitude 93° 22' 17"W 93° 21' 48"W
Elevation 1,253' 1,257'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

5000 ft. x 100 ft.
ASPH
Good
NONE
MED

19,000lbs
29,000lbs
--
--
  Runway 17 Runway 35
True Heading 168°348°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 41' 16"N 43° 40' 28"N
Longitude 93° 22' 14"W 93° 21' 60"W
Elevation 1,260' 1,261'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1TV TWR 9.5 NM SE.
A110-2GLIDERS & HELICOPTERS USE TURF PARALLEL TO RY 17/35 ON EAST SIDE & APPR AREA TO RY 23.
A110-3MULTIPLE TRANSITIONAL OBSTNS RY 05 & RY 35.
A110-5FOR CD CTC ROCHESTER APCH AT 507-424-8111.
A15EMAIL ADDRESS: JIMHANSON@DESKMEDIA.COM (ALL LOWER CASE)
A17-H1FOR SVC AFT HRS CALL 507-826-3451.
A24TIE DOWN FEE WAVED WITH FUEL PURCHASE.
A58-05RWY 05 HAS 5 FT BRUSH 79 FT FM THE RWY END AND 79 FT RIGHT.
A70-100LL100LL & MOGAS FUEL AVBL 24 HR WITH CREDIT CARD.
A81-APTACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF. MIRL RWY 17/35 PRESET TO LOW SS-SR TO INCR INTST - CTAF.
ALBERT LEA MUNI (ICAO: KAEL, IATA: AEL) is a public airport located in ALBERT LEA, MN, US.
