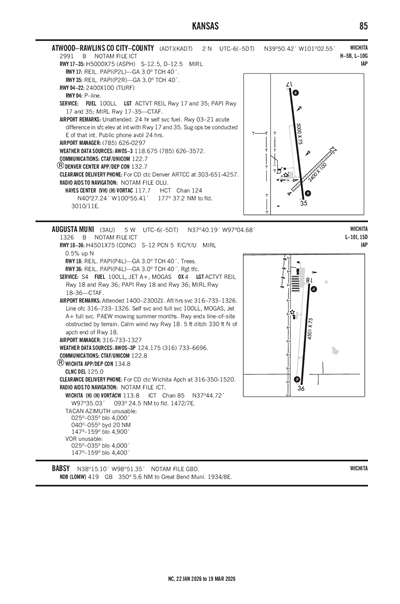

ATWOOD-RAWLINS COUNTY CITY-COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KADT
ICAO KADTLocal ADT
ATWOOD-RAWLINS COUNTY CITY-COUNTY
PublicPUB

2 miles N of ATWOOD, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 50' 25"N 101° 02' 33"W
Elevation
2991' MSL
Pattern Alt
3991' MSL
Mag Variation
6°E
Declination
6°E
Fuel
100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KADT VFR
10:35 PM CST
Clear
10sm
40°F
32°F
30.19"Hg
070° 7kts
AO2 T00420002
METAR KADT 040435Z AUTO 07007KT 10SM CLR 04/00 A3019 RMK AO2 T00420002
+ Add Your Business

KADT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.675
(785) 626-3572

Common

CTAF 122.7
ACTVT REIL RWY 17 & 35; PAPI RWYS RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 122.7

Center

DENVER CENTER 132.7
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (GOODLAND RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMCK (30nm)
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 12:00 AM CST
Broken 25,000'
6sm
070° 6kts
IFR
12:00 AM CST - 11:00 AM CST
Mist
Overcast 500'
5sm
100° 5kts
LIFR
Temporary 4:00 AM CST - 8:00 AM CST
Fog
Overcast 300'
0.5sm
Calm
VFR
11:00 AM CST - 6:00 PM CST
Scattered 25,000'
6sm
VRB° 4kts
TAF KMCK 032323Z 0400/0424 07006KT P6SM BKN250
   FM040600 10005KT 5SM BR OVC005
   TEMPO 0410/0414 1/2SM FG OVC003
   FM041700 VRB04KT P6SM SCT250
KADT
No NOTAM Available
No
UNATNDD
CITY OF ATWOOD & RAWLINS CO.

ATWOOD, KS 67730
Phone: 785-626-3344
CHRIS TIEMEYER
12323 HWY 25
ATWOOD, KS 67730
Phone: (785) 626-0297
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT REIL RWY 17 & 35; PAPI RWYS RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
None
None
None
None
Crop Dusting

Runway 04/22

2400 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 04 Runway 22
True Heading 46°226°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 39° 50' 09"N 39° 50' 25"N
Longitude 101° 02' 38"W 101° 02' 16"W
Elevation 2,930' 2,946'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

5000 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
12,000lbs
--
--
  Runway 17 Runway 35
True Heading 173°353°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 50' 54"N 39° 50' 05"N
Longitude 101° 02' 40"W 101° 02' 32"W
Elevation 2,991' 2,927'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1PUBLIC PHONE AVBL 24 HRS.
A110-2FOR CD CTC DENVER ARTCC AT 303-651-4257.
A33-04/22_SURFACUTE DIFFERENCE IN SFC ELEV AT INT WITH RWY 17 & 35. SUG OPS BE CONDUCTED E OF THAT INT.
A70-100LL24 HR SELF-SERVE FUEL.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWYS RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111EXISTED PRIOR TO 1959.
ATWOOD-RAWLINS COUNTY CITY-COUNTY (ICAO: KADT, IATA: ADT) is a public airport located in ATWOOD, KS, US.
