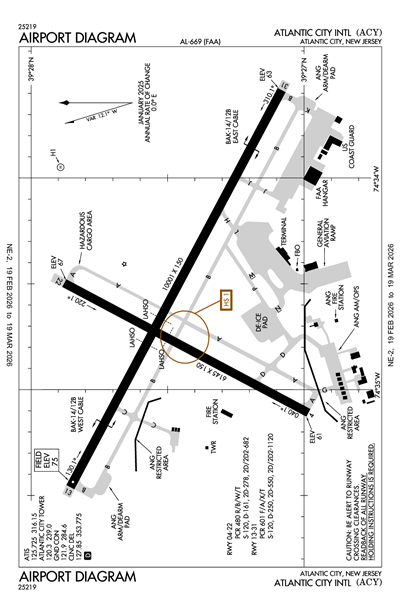

ATLANTIC CITY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KACY
ICAO KACYIATA ACYLocal ACY
ATLANTIC CITY INTL
PublicPUB

9 miles NW of ATLANTIC CITY, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 27' 27"N 74° 34' 38"W
Elevation
75' MSL
Pattern Alt
1075' MSL
Mag Variation
12°W
Declination
10°W
Fuel
JET A, JET A+, CILI, 100LL
FSS
MILLVILLE (MIV)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KACY IFR
11:54 PM EST
Overcast 5,000'
Broken 500'
N/A
43°F
42°F
N/A
240° 5kts
AO2 RAE51 SLPNO P0001 T00610056 400610000 $
METAR KACY 040454Z AUTO 24005KT BKN005 OVC050 06/06 RMK AO2 RAE51 SLPNO P0001 T00610056 400610000 $
+ Add Your Business

KACY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.725
(609) 485-4444
ASOS (609) 277-2644

Common

CTAF 120.3
DURG ATC ZERO EVENTS, CTAF 120.3.

Clearance

Clearance Delivery 127.85

Ground

ATLANTIC CITY GROUND 121.9

Tower

ATLANTIC CITY TOWER 120.3

Approach

ATLANTIC CITY APPROACH 124.6
Initial Contact - 130-309
ATLANTIC CITY APPROACH 134.25
310-129

Departure

ATLANTIC CITY DEPARTURE 124.6
Initial Contact - 130-309
ATLANTIC CITY DEPARTURE 134.25
310-129

Operations

Operations 123.4
FAA OPS

Emergency

Emergency 121.5

Military

ANG OPS 140.7

Other

CLASS C 124.6
130-309
CLASS C 134.25
310-129

Terminal Area Forecast

KACY
Tue, 3/3 9:47 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
10:00 PM EST - 12:00 AM EST
Light Rain and Mist
Overcast 300'
2sm
240° 5kts
IFR
12:00 AM EST - 5:00 AM EST
Light Drizzle and Mist
Overcast 500'
3sm
250° 5kts
LIFR
5:00 AM EST - 11:00 AM EST
Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
11:00 AM EST - 1:00 PM EST
Broken 1,500'
6sm
030° 4kts
MVFR
1:00 PM EST - 7:00 PM EST
Light Rain and Mist
Overcast 1,500'
3sm
080° 4kts
TAF KACY 040247Z 0403/0424 24005KT 2SM -RA BR OVC003
   FM040500 25005KT 3SM -DZ BR OVC005
   FM041000 VRB03KT 2SM BR OVC003
   FM041600 03004KT P6SM BKN015
   FM041800 08004KT 3SM -RA BR OVC015
KACY
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0228Z
2/26/26
0228Z
Runway!ACY 02/207 ACY RWY 31 FICON 24IN SNOWBANKS OBS AT 2602250228. 2602250228-2602260228
2/25/26
0227Z
2/26/26
0227Z
!ACY 02/206 ACY APRON COMMERCIAL RAMP FICON PATCHY ICE DEICED LIQUID 4FT SNOWBANKS OBS AT 2602250227. 2602250227-2602260227
2/25/26
0226Z
2/26/26
0226Z
!ACY 02/205 ACY APRON GA RAMP FICON PATCHY ICE 7FT SNOWBANKS OBS AT 2602250226. 2602250226-2602260226
2/25/26
0225Z
2/26/26
0225Z
!ACY 02/204 ACY TWY ALL FICON PATCHY ICE OBS AT 2602250224. 2602250225-2602260225
2/25/26
0224Z
2/26/26
0224Z
!ACY 02/203 ACY TWY P FICON 4FT SNOWBANKS OBS AT 2602250223. 2602250224-2602260224
2/25/26
0223Z
2/26/26
0223Z
!ACY 02/202 ACY TWY L FICON 4FT SNOWBANKS OBS AT 2602250223. 2602250223-2602260223
2/25/26
0221Z
2/26/26
0221Z
!ACY 02/201 ACY TWY H FICON 24IN SNOWBANKS OBS AT 2602250221. 2602250221-2602260221
2/25/26
0220Z
2/26/26
0220Z
!ACY 02/200 ACY TWY D FICON 4FT SNOWBANKS OBS AT 2602250220. 2602250220-2602260220
2/25/26
0219Z
2/26/26
0219Z
!ACY 02/199 ACY TWY C FICON 24IN SNOWBANKS OBS AT 2602250219. 2602250219-2602260219
2/25/26
0218Z
2/26/26
0218Z
!ACY 02/198 ACY TWY A FICON 3FT SNOWBANKS OBS AT 2602250218. 2602250218-2602260218
2/25/26
0217Z
2/26/26
0217Z
!ACY 02/197 ACY TWY B FICON 24IN SNOWBANKS OBS AT 2602250217. 2602250217-2602260217
2/24/26
1907Z
2/25/26
1900Z
!ACY 02/196 ACY TWY P BTN TWY D AND TWY M CLSD 2602241907-2602251900
2/24/26
0445Z
2/27/26
1900Z
!ACY 02/182 ACY TWY A BTN RWY 13/31 AND APCH END RWY 22 CLSD 2602240445-2602271900
2/24/26
0444Z
2/27/26
1900Z
!ACY 02/180 ACY TWY A BTN APCH END RWY 04 AND TWY B CLSD 2602240444-2602271900
2/24/26
0442Z
2/27/26
2359Z
!ACY 02/177 ACY APRON FAA RAMP CLSD 2602240442-2602272359
2/24/26
0441Z
2/27/26
2359Z
!ACY 02/176 ACY TWY K CLSD 2602240441-2602272359
2/23/26
2157Z
!ACY 02/173 ACY NAV TACAN AZM U/S 2602232157-2603122000EST
2/23/26
1739Z
6/23/26
1739Z
!ACY 02/171 ACY OBST TOWER LGT (ASR 1052978) 392844.90N0744153.80W (5.7NM WNW ACY) 277.9FT (209.0FT AGL) U/S 2602231739-2606231739
2/23/26
1712Z
3/31/26
1900Z
!ACY 02/170 ACY APRON DEICE PAD CLSD 2602231712-2603311900
2/23/26
0813Z
6/23/26
0813Z
!ACY 02/161 ACY OBST TOWER LGT (ASR 1049524) 393211.50N0743048.40W (5.7NM NNE ACY) 244.8FT (216.9FT AGL) U/S 2602230813-2606230813
2/23/26
0212Z
2/25/26
1700Z
!ACY 02/154 ACY TWY N CLSD 2602230212-2602251700
2/22/26
2315Z
3/23/26
2359Z
!ACY 02/151 ACY NAV ILS RWY 13 U/S 2602222315-2603232359
2/22/26
2017Z
2/27/26
2359Z
!ACY 02/144 ACY APRON ALL SFC MARKINGS OBSC 2602222017-2602272359
2/22/26
2005Z
2/25/26
2200Z
!ACY 02/143 ACY TWY J CLSD 2602222005-2602252200
2/22/26
2004Z
2/25/26
2200Z
!ACY 02/141 ACY TWY D BTN TWY P AND RWY 04/22 CLSD 2602222004-2602252200
2/22/26
2002Z
2/25/26
2200Z
Runway!ACY 02/139 ACY RWY 04/22 CLSD 2602222002-2602252200
2/22/26
1926Z
2/27/26
2359Z
!ACY 02/135 ACY TWY ALL SIGNS OBSC 2602221926-2602272359
2/13/26
1837Z
4/30/26
2359Z
!ACY 02/091 ACY TWY G CLSD 2602131837-2604302359
2/9/26
2027Z
12/31/26
1900Z
Runway!ACY 02/068 ACY RWY 13/31 CL MARKINGS OBSC 2602092027-2612311900
1/31/26
1830Z
4/30/26
2359Z
!ACY 01/202 ACY OBST BLDG LGT (ASN UNKNOWN) 392747N0743536W (0.86NM WNW ACY)
82FT (10FT AGL) U/S 2601311830-2604302359
1/23/26
1453Z
4/30/26
0100Z
!ACY 01/113 ACY OBST POLE (ASN UNKNOWN) 392703N0743425W (0.46NM SSE ACY)
160FT (100FT AGL) NOT LGTD 2601231453-2604300100
1/15/26
1240Z
3/1/26
0500Z
!ACY 01/055 ACY OBST TOWER LGT (ASR 1049923) 393249.30N0743817.50W (6.0NM NNW ACY) 570.9FT (503.9FT AGL) U/S 2601151240-2603010500
1/6/26
1901Z
4/30/26
1900Z
!ACY 01/026 ACY APRON GA RAMP WIP CONST 2601061901-2604301900
12/30/25
0000Z
6/30/26
0500Z
Runway!ACY 12/122 ACY RWY 13 ALS U/S 2512300000-2606300500
6/10/24
1300Z
!ACY 06/015 ACY OBST TOWER (ASN 2023-AEA-526-NRA) 392719N0743343W (0.7NM ESE ACY) 123FT (61FT AGL) LGTD 2406101300-PERM
6/10/24
1300Z
!ACY 06/014 ACY OBST TOWER (ASN 2023-AEA-524-NRA) 392739N0743418W (0.3NM NE ACY) 174FT (117FT AGL) LGTD 2406101300-PERM
6/10/24
1300Z
!ACY 06/013 ACY OBST TOWER (ASN 2023-AEA-2031-NRA) 392754N0743509W (0.6NM NW ACY) 125FT (61FT AGL) LGTD 2406101300-PERM
FDC
3/5/26
1400Z
3/6/26
0001Z
!FDC 6/7574 ACY AIRSPACE TFC INFO SER BCST (TIS-B) MAY NOT BE AVBL
WI AN AREA DEFINED AS 330NM RADIUS OF 394576N7457720W.
AP AIRSPACE AFFECTED MAY INCLUDE PHL, MJL, WWD, ACY.
SFC-UNL
2603051400-2603060001
3/4/26
1400Z
3/5/26
0001Z
!FDC 6/7573 ACY AIRSPACE TFC INFO SER BCST (TIS-B) MAY NOT BE AVBL
WI AN AREA DEFINED AS 330NM RADIUS OF 394576N7457720W.
AP AIRSPACE AFFECTED MAY INCLUDE PHL, MJL, WWD, ACY.
SFC-UNL. 2603041400-2603050001
2/22/26
2353Z
!FDC 6/8172 ACY SID ATLANTIC CITY INTL, ATLANTIC CITY, NJ.
ATLANTIC CITY THREE DEPARTURE...
SMYRNA TRANSITION NA: EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ENO VOR OUT OF SERVICE. 2602222353-2603222353EST
Yes
ALL
SOUTH JERSEY TRANSPORTATION AUTH
SUITE 106
EGG HARBOR TOWNSHIP, NJ 08234
Phone: 609-645-7895
TIM KROLL
SUITE 100
EGG HARBOR TOWNSHIP, NJ 08234
Phone: 609-645-7895
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
ACY
--
--
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Minor
High Pressure
None
Charter Service

Runway 04/22

6145 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
161,000lbs
278,000lbs
682,000lbs
  Runway 04 Runway 22
True Heading 28°208°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 26' 59"N 39° 27' 53"N
Longitude 74° 35' 07"W 74° 34' 30"W
Elevation 61' 67'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

10001 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 13 Runway 31
True Heading 118°298°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 27' 51"N 39° 27' 05"N
Longitude 74° 35' 28"W 74° 33' 35"W
Elevation 75' 63'
Threshold Crossing Height 71 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway H1

102 ft. x 102 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 39° 27' 53"N N/A
Longitude 74° 33' 57"W N/A
Elevation 56' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11HIGH PER MIL ACFT OPERATING AT ARPT.
A110-12NOISE ABATEMENT PROCS IN EFCT CTC ARPT OPNS AT (609) 645-7895 EXT 4702.
A110-17MILITARY: ANG APRON PPR, CTC ANG BASE OPS C609-761-6009, FAX C609-761-6484, COMD POST C609-761-6001. LTD TRAN SVC AVBL 1100-2030Z++ TUE-FRI, CLSD SAT-MON AND HOL.
A110-18MILITARY: ANG: BASH PHASE II IN EFCT APR-OCT CTC BASE OPS ON 261.0 OR 140.7 FOR CURRENT BASH COND.
A110-19MILITARY: ANG: NSTD MRK ON ANG RAMPS: BLUE LINES DELINEATE F-16 WING TIP CLNC, YELLOW LINES AT HGR DOORS FOR PERS CLEAR ZONE.
A110-21AVOID CNTRLN LGT DUR CABLE ENGAGEMENT TO PREVENT TAILHOOK BOUNCE.
A110-22DURG ATC ZERO EVENTS, CTAF 120.3.
A110-23ANG ARM/DEARM PADS FOR MIL USE ONLY.
A110-24FOR ITINERANT MIL ACFT OPS PPR CTC ARPT OPS 609-645-7895 EXT 4702.
A110-25PILOTS CONDUCTING EFVS OPS; BE AWARE LED ALS IN USE RWY 13.
A110-4FAA APRON PPR CALL 609-485-6482.
A110-6TWY C CLSD TO DUAL TANDEM & DOUBLE TANDEM EQUIPPED ACFT.
A110-7NO TRNG FLTS 2300-0700 LCL.
A110-9FOX & BIRDS ON & INVOF ARPT.
A30-H1PVT - EXPERIMENTAL USE ONLY. CTC FAA TECH CENTER AT 609-485-6675.
A39-04/22PCR VALUE: 480/R/B/W/T
A39-13/31PCR VALUE: 601/F/A/X/T
A76-CHTRFOR CHARTER OPNS CTC 609-645-7895 EXT 4702.
E111EXISTED PRIOR TO 1959.
E60-13_BAK-14BAK-14 BAK-12B (B) (1600')
E60-31_BAK-14BAK-14 BAK-12B (B) (1600')
E80US CUSTOMS USER FEE ARPT.CUSTOMS AVBL MON-FRI 0800-1700. PROVIDE MINIMUM 24 HR ADVANCE NOTICE TO ARRANGE FOR CUSTOMS. ALL CALLS TO CUSTOMS MON-FRI 0800-1700; PHONE 609-484-1610. US CUSTOMS FAX 609-484-1614.
ATLANTIC CITY INTL (ICAO: KACY, IATA: ACY) is a public airport located in ATLANTIC CITY, NJ, US.
