KABR
ABERDEEN RGNL
Public
PUB
2 miles E of ABERDEEN, SD
View on
Map
Status
Operational
Coordinates
45° 26' 48"N
98° 25' 21"W
Elevation
1302' MSL
Pattern Alt
2302' MSL
Mag Variation
07E
Fuel
JET A, 100LL
FSS
HURON (HON)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
7/11/24-8/8/24
KABR
VFR
5:53 AM CDT
RAW
Clear
Viz
10sm
Temp
58°F
Dew
52°F
Pres
29.64"Hg
Wind
200° 6kts
RMK
AO2 SLP030 T01440111
KABR 191053Z AUTO 20006KT 10SM CLR 14/11 A2964 RMK AO2 SLP030 T01440111
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KABR FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.7
CTAF
122.7
ASOS
ASOS
605-229-4512
125.875
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

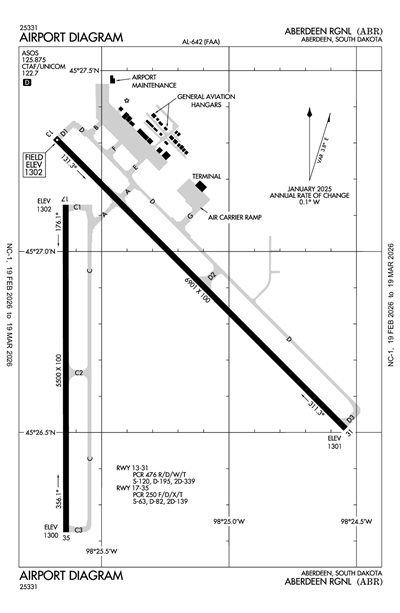

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 31
RNAV (GPS) RWY 13
RNAV (GPS) RWY 17
RNAV (GPS) RWY 31
RNAV (GPS) RWY 35
VOR RWY 13
VOR RWY 31
Terminal Area Forecast
KABR
RAW
Reported
Thu, 9/19 4:22 AM CDT
Valid
Thu, 9/19 4:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
4:00 AM CDT - 10:00 AM CDT
Few 25,000'
Viz
6sm
Wind
220° 7kts
VFR
10:00 AM CDT - 6:00 PM CDT
Scattered 5,000'
Viz
6sm
Wind
240° 17kts
Gusts 28kts
VFR
6:00 PM CDT - 8:00 PM CDT
Few 25,000'
Few 7,000'
Viz
6sm
Wind
270° 13kts
Gusts 23kts
VFR
8:00 PM CDT - 1:00 AM CDT
Few 25,000'
Viz
6sm
Wind
260° 9kts
KABR 190922Z 1909/2006 22007KT P6SM FEW250
FM191500 24017G28KT P6SM SCT050
FM192300 27013G23KT P6SM FEW070 FEW250
FM200100 26009KT P6SM FEW250
KABR
Domestic
8/8/24
1358Z
!ABR 08/021 ABR TWY A APCH AREA HLDG PSN SIGN BTN RWY 13/31 AND TWY C NOT STD 2408081358-2409302130
ATC Tower
No
Attendance
MON-FRI 0330-2400L
FOR SVCS AFTER HRS CALL (605) 225-1384/8008 OR (605)725-4774
Owner
CITY OF ABERDEEN
123 S LINCOLN ST
ABERDEEN, SD 57401-1420
Phone: 605-626-7020
Manager
RICH KROKEL
4740 6TH AVENUE SE
ABERDEEN, SD 57401-4215
Phone: 605-626-7020
FSS
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
NOTAM
ABR
Light Schedule
--
Lights
MIRL RWY 17/35 & HIRL RWY 13/31 PRESET ON LOW INTST SS-2400; TO INCR INTST & ACTVT MALSR RWY 31; REIL RWYS 13, 17, & 35; AND PAPI RWY 13 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Hangar
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
42
# Multi Engine
16
# Jets
7
# Helicopters
1
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
High Pressure
Other Services
Air Freight
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 13/31
Dimensions
6901 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
56 /R/B/W/T
Single Wheel
120,000lbs
Double Wheel
195,000lbs
Double Tandem
339,000lbs
Dual Dbl Tand
--
Runway 13
Runway 31
True Heading
135°
315°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
45° 27' 19"N
45° 26' 31"N
Longitude
98° 25' 41"W
98° 24' 33"W
Elevation
1,302'
1,301'
Threshold Crossing Height
50 ft. AGL
67 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
Runway 17/35
Dimensions
5500 ft. x 100 ft.
Surface Type
ASPH
Surface Cond
Excellent
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
25 /F/D/X/T
Single Wheel
63,000lbs
Double Wheel
82,000lbs
Double Tandem
139,000lbs
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
180°
360°
Traffic Pattern
Left
Left
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
45° 27' 08"N
45° 26' 13"N
Longitude
98° 25' 38"W
98° 25' 38"W
Elevation
1,302'
1,300'
Threshold Crossing Height
40 ft. AGL
40 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4R
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
A110-1
BIRDS ON & INVOF ARPT.
A110-3
ARPT NOT AVBL FOR INTL ARRIVALS.
A110-4
SURFACE CONDITIONS NOT MONITORED 0000-0330L
A110-5
FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ABERDEEN RGNL (ICAO: KABR, IATA: ABR) is a public airport located in ABERDEEN, SD.
