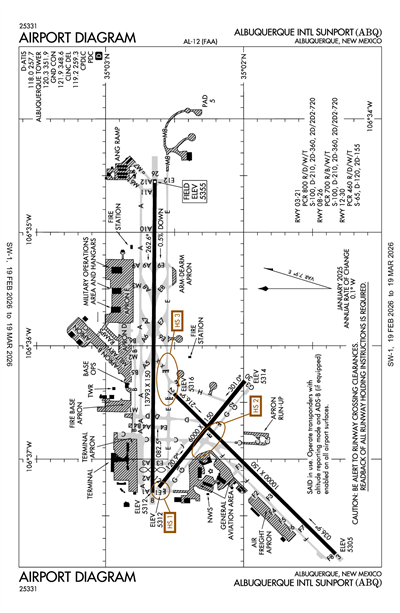

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KABQ
ALBUQUERQUE INTL SUNPORT
PublicPUB

3 miles SE of ALBUQUERQUE, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 02' 20"N 106° 36' 30"W
5355' MSL
6355' MSL
11E
JET A, JET A-1, JET A-1+, 100LL
ALBUQUERQUE (ABQ)
ALBUQUERQUE
ALBUQUERQUE (ZAB)
7/11/24-8/8/24
KABQ VFR
4:52 AM MDT
Few 11,000'
10sm
57°F
37°F
30.08"Hg
110° 5kts
AO2 SLP113 T01390028
KABQ 191052Z 11005KT 10SM FEW110 14/03 A3008 RMK AO2 SLP113 T01390028
Add Your Business

KABQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
505-856-4928
 118.0

Approach

APCH/S
 126.3

Approach/Departure

APCH/P DEP/P
ON OR NORTH OF V12
 127.4
APCH/P DEP/P IC
SOUTH OF V12
 123.9

Clearance Delivery

CD/P
 119.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 120.3
LCL/S
 123.775

Other

CLASS C
SOUTH OF V12
 123.9
CLASS C
ON OR NORTH OF V12
 127.4
CURLY STAR
 127.4
LAVAN STAR
 123.9
MIERA STAR
 123.9

Terminal Area Forecast

KABQ
Wed, 9/18 11:20 PM MDT
Thu, 9/19 12:00 AM MDT - Fri, 9/20 12:00 AM MDT
VFR
12:00 AM MDT - 2:00 PM MDT
Sky Clear
6sm
VRB° 4kts
VFR
2:00 PM MDT - 7:00 PM MDT
Scattered 25,000'
6sm
190° 9kts
VFR
7:00 PM MDT - 12:00 AM MDT
Few 25,000'
6sm
150° 7kts
KABQ 190520Z 1906/2006 VRB04KT P6SM SKC
   FM192000 19009KT P6SM SCT250
   FM200100 15007KT P6SM FEW250
KABQ
Domestic
9/18/241330Z !ABQ 09/162 ABQ AIRSPACE UAS WI AN AREA DEFINED AS 350009N1063106W
(4.9NM ESE ABQ) TO 345651N1062317W (12.2NM ESE ABQ) TO
345651N1063406W (5.8NM SSE ABQ) TO 345751N1063406W (4.9NM SE ABQ) TO
345821N1063300W (4.9NM SE ABQ) TO 345905N1063200W (4.9NM ESE ABQ) TO
350000N1063112W (4.9NM ESE ABQ) TO POINT OF ORIGIN SFC-699FT AGL
2409181330-2409181830
9/16/242000Z !ABQ 09/159 ABQ TWY E BTN TWY E6 AND TWY D CLSD 2409162000-2410042300EST
9/16/241829Z !ABQ 09/161 ABQ TWY F8 CLSD 2409161829-2410042300EST
9/16/241827Z !ABQ 09/160 ABQ TWY D BTN TWY E AND RWY 03/21 CLSD 2409161827-2410042300EST
9/16/241700Z !ABQ 09/156 ABQ RWY 03/21 CLSD 2409161700-2410042300EST
9/16/241608Z !ABQ 09/157 ABQ NAV ILS RWY 03 U/S 2409161608-2410052359
9/16/241600Z !ABQ 09/134 ABQ RWY 03 PAPI U/S 2409161600-2410052359
9/16/241600Z !ABQ 09/133 ABQ RWY 21 PAPI U/S 2409161600-2410052359
9/16/241600Z !ABQ 09/132 ABQ RWY 03 ALS U/S 2409161600-2410052359
9/14/241554Z !ABQ 09/142 ABQ NAV ILS RWY 08 DME U/S 2409141554-2409182000
8/9/240623Z !ABQ 08/110 ABQ OBST TOWER LGT (ASR 1006948) 350159.00N1063946.00W (2.7NM W ABQ) 5337.9FT (406.8FT AGL) U/S 2408090623-2409230615
7/30/241400Z !ABQ 07/396 ABQ AIRSPACE UAS WI AN AREA DEFINED AS 0.9NM RADIUS OF
345825N1062927W (7.0NM ESE ABQ) SFC-700FT AGL TUE WED THU FRI MON
1400-0100 2407301400-2412280100
7/22/241300Z !ABQ 07/317 ABQ AIRSPACE UAS WI AN AREA DEFINED AS 0.2NM RADIUS OF
350259N1063212W (3.6NM ENE ABQ) SFC-200FT AGL MON-FRI 1300-2359
2407221300-2412272359
8/4/161200Z !ABQ 08/009 ABQ OBST TOWER LGT (ASR 1259646) 345726.60N1062934.60W (7.5NM SE ABQ) 5996.1FT (295.9FT AGL) OUT OF SERVICE 1608041200-PERM
FDC
8/14/241916Z !FDC 4/9020 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
RNAV (GPS) Y RWY 8, ORIG-C...
LNAV MDA 5880/HAT 560 ALL CATS. VIS CAT C/D RVR 6000.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4
VDP 1.62 NM TO RW08.
TEMPORARY CRANE 5565 MSL 1597FT N OF RWY 8 (2022-ASW-8190-NRA).
2408141916-2503261916EST
8/14/241916Z !FDC 4/9019 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
VOR RWY 8, AMDT 21...
EYECE FIX MINIMUMS:
S-8 MDA 5880/HAT 560 ALL CATS. VIS CATS C/D/E RVR 6000.
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
TEMPORARY CRANE 5565 MSL 1597FT N OF APCH END RWY 8 (2022-ASW-8190-NRA), TEMPORARY CRANE 5653 MSL 2.9NM E OF ABQ AIRPORT (2021-ASW-12740-OE).
2408141916-2503261916EST
8/14/241916Z !FDC 4/9018 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
ILS OR LOC RWY 3, AMDT 3...
ILS OR LOC RWY 8, AMDT 6B...
RADAR 1, AMDT 21...
RNAV (GPS) Y RWY 3, AMDT 1...
CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
TEMPORARY CRANE, 5565 MSL, 4479 FT NW OF KABQ (2022-ASW-8190-NRA), TEMPORARY CRANE, 5653 MSL, 2.9 NM EAST OF KABQ (2021-ASW-12740-OE).
2408141916-2503261916EST
8/14/241915Z !FDC 4/9017 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
ILS OR LOC RWY 8, AMDT 6B...
S-ILS 8 DA 5695/HAT 375 ALL CATS. VIS RVR 3500 ALL CATS. CIRCLING CATS A/B/C MDA 6020/HAA 665. VIS CAT C 1 3/4.
FOR INOP ALS, INCREASE S-ILS 8 ALL CATS VISIBILITY TO RVR 5500, INCREASE S-LOC 8 CAT C AND D VISIBILITY TO RVR 6000. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY CRANE 5565 MSL 1597FT N OF RWY 8 (2022-ASW-8190-NRA), TEMPORARY CRANE 5452 MSL 1499FT NE OF RWY 08 (2022-ASW-7887-NRA), TEMPORARY CONST EQUIP 5367 MSL 545FTNW OF RWY 08 (2023-ASW-2058-NRA).
2408141915-2503261915EST
8/14/241914Z !FDC 4/9015 ABQ IAP U.S. DOD ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
HI - ILS OR LOC RWY 8, AMDT 2A...
HI - TACAN RWY 8, AMDT 2A...
CIRCLING CAT C MDA 6020/HAA 665. VIS CAT C 1 3/4.
EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN.
TEMPORARY CRANE 5653 MSL 2.9 NM E OF ABQ AIRPORT (2021-ASW-12740-OE).
2408141914-2503261914EST
8/2/241703Z !FDC 4/2281 ABQ IAP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
VOR RWY 8, AMDT 21...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ABQ DME RESTRICTED.
2408021703-2503141703EST
8/2/241703Z !FDC 4/2278 ABQ IAP U.S. DOD ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
HI - ILS OR LOC RWY 8, AMDT 2A...
HI - TACAN RWY 8, AMDT 2A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
ABQ DME RESTRICTED.
2408021703-2503141703EST
6/10/241812Z !FDC 4/6173 ABQ IAP U.S. DOD ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
HI - TACAN RWY 8, AMDT 2A...
CIRCLING CAT C MDA 6020/HAA 665. VIS CAT C 1 3/4.
TEMPORARY CRANE 5653 MSL 2.9 NM E OF ABQ AIRPORT (2021-ASW-12740-OE).
2406101812-2501201812EST
1/13/241933Z !FDC 4/3468 ABQ ODP ALBUQUERQUE INTL SUNPORT, ALBUQUERQUE, NM.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
TAKEOFF OBSTACLE NOTES: RWY 03, TEMPORARY CONSTRUCTION EQUIPMENT, BEGINNING 378 FT FROM DER, BEGINNING 207 FT RIGHT OF CENTERLINE, 35 AGL/UP TO 5350 MSL (2021-ASW-7386 AND 7390-NRA), RWY 08, TEMPORARY CRANE, 1.44 NM FROM DER, 2320 FT LEFT OF CENTERLINE, 250 AGL/5653 MSL (2021-ASW-12740-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2401131933-2410171933EST
Military
9/19/240130Z !KABQ M0378/24 ABQ PJE WITHIN AREA DEFINED AS 5NM RADIUS OF ABQ VORTAC 100 DEG RADIAL @ 17 MILES 2409190130-2409190730
9/18/241530Z !KABQ M0379/24 ABQ PJE WITHIN AREA DEFINED AS 3NM RADIUS OF ABQ VORTAC 128 DEG RADIAL @ 22 MILES 2409181530-2409182100
9/9/241448Z B RAMP SOUTHSIDE CLOSED FOR CONSTRUCTION. NO TAXI THRU B RAMP
Yes
ALL
CITY OF ALBUQUERQUE
PO BOX 1293
ALBUQUERQUE, NM 87103
Phone: 505-768-3000
RICHARD MCCURLEY
PO BOX 9948
ALBUQUERQUE, NM 87119
Phone: 505-244-7700
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
38
52
55
21
34
0
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 03/21

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
78 /R/B/W/T
100,000lbs
210,000lbs
360,000lbs
720,000lbs
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 01' 20"N 35° 02' 30"N
Longitude 106° 37' 50"W 106° 36' 25"W
Elevation 5,305' 5,316'
Threshold Crossing Height 59 ft. AGL 74 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 08/26

13793 ft. x 150 ft.
CONC
Good
GRVD
HIGH
71 /R/B/W/T
100,000lbs
210,000lbs
360,000lbs
720,000lbs
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 02' 40"N 35° 02' 39"N
Longitude 106° 37' 18"W 106° 34' 32"W
Elevation 5,312' 5,355'
Threshold Crossing Height 55 ft. AGL 83 ft. AGL
Visual Glide Path Angle 2.95° 3°
Visual Slope Indicator V6L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 12/30

6000 ft. x 150 ft.
CONC
Good
GRVD
MED
41 /R/C/W/T
65,000lbs
120,000lbs
155,000lbs
--
  Runway 12 Runway 30
True Heading 129°309°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 35° 02' 37"N 35° 01' 60"N
Longitude 106° 37' 15"W 106° 36' 19"W
Elevation 5,312' 5,314'
Threshold Crossing Height -- 46 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-17ACR GND HANDLING NA 0100-0430.
A110-2BIRD HAZ OCT-DEC & MAR-MAY; STUDENT HEL TFC.
A110-21TWY H MIL USE ONLY.
A110-22FIGHTER ACFT DEP S ONLY.
A110-24TWY E5 CLSD.
A110-25SVC: MIL FUEL A++; A++ 100.
A110-26MIL WX SVC 1100-0600Z++ MON; 1300-0600Z++ TUES-FRI; CLSD WKEND, HOL & DOWN DAYS. AFT HR MSN WX SUPPORT BRIEFINGS - 25 OWS/DAVIS-MONTHAN AFB D228-6604/C520-228-6604. NWS KABQ FCST - D246-9707/C505-846-9707. FAA OBS H24 - C505-246-4200.
A110-6CTL FIRING AREA S.
A110-8ARFF PRVDD BY USAF.
ALBUQUERQUE INTL SUNPORT (ICAO: KABQ, IATA: ABQ) is a public airport located in ALBUQUERQUE, NM.
