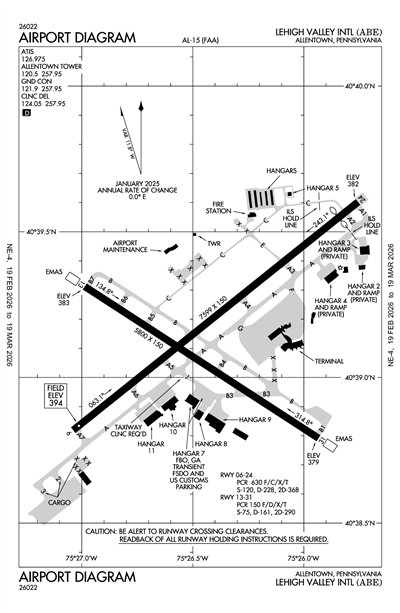

LEHIGH VALLEY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KABE
ICAO KABEIATA ABELocal ABE
LEHIGH VALLEY INTL
PublicPUB

3 miles NE of ALLENTOWN, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 39' 09"N 75° 26' 25"W
Elevation
394' MSL
Pattern Alt
1394' MSL
Mag Variation
12°W
Declination
12°W
Fuel
JET A, 100LL
FSS
WILLIAMSPORT (IPT)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KABE IFR
11:51 PM EST
Mist
Overcast 500'
1.25sm
34°F
33°F
30.21"Hg
290° 3kts
AO2 SFC VIS 5 RAB27E44 SLP233 P0000 T00110006 400171017
METAR KABE 040451Z 29003KT 1 1/4SM BR OVC005 01/01 A3021 RMK AO2 SFC VIS 5 RAB27E44 SLP233 P0000 T00110006 400171017
+ Add Your Business

KABE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.975
ASOS 126.975
(610) 477-0813

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.05

Ground

ALLENTOWN GROUND 121.9

Tower

ALLENTOWN TOWER 120.5

Approach

ALLENTOWN APPROACH 119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN APPROACH 124.45
Initial Contact - ABV 3000 FT
ALLENTOWN APPROACH 124.45
FROM WEST

Departure

ALLENTOWN DEPARTURE 119.65
Initial Contact - 3000 FT & BLW
ALLENTOWN DEPARTURE 124.45
Initial Contact - ABV 3000 FT
ALLENTOWN DEPARTURE 124.45
FROM WEST

Emergency

Emergency 121.5

Other

CLASS C 119.65
3000 FT & BLW
CLASS C 124.45
ABV 3000 FT

Terminal Area Forecast

KABE
Tue, 3/3 9:40 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
10:00 PM EST - 2:00 AM EST
Light Drizzle and Mist
Overcast 500'
3sm
VRB° 3kts
LIFR
2:00 AM EST - 10:00 AM EST
Mist
Overcast 300'
2sm
VRB° 3kts
MVFR
10:00 AM EST - 12:00 PM EST
Mist
Broken 1,500'
6sm
030° 3kts
VFR
12:00 PM EST - 7:00 PM EST
Broken 5,000'
6sm
060° 3kts
TAF KABE 040240Z 0403/0424 VRB03KT 3SM -DZ BR OVC005
   FM040700 VRB03KT 2SM BR OVC003
   FM041500 03003KT 6SM BR BKN015
   FM041700 06003KT P6SM BKN050
KABE
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1300Z
2/26/26
1900Z
Runway!ABE 02/211 ABE RWY 13 ALS U/S 2602261300-2602261900
2/25/26
1200Z
2/25/26
2359Z
!ABE 02/210 ABE OBST CRANE (ASN UNKNOWN) 403848N0752429W (1.61NM ESE ABE)
534FT (190FT AGL) FLAGGED AND LGTD 2602251200-2602252359
2/25/26
0348Z
2/26/26
0348Z
Runway!ABE 02/215 ABE RWY 24 FICON 10 PCT COMPACTED SN, 10 PCT COMPACTED SN, DRY OBS AT 2602250348. 2602250348-2602260348
2/25/26
0051Z
2/26/26
0051Z
!ABE 02/213 ABE TWY ALL FICON PATCHY COMPACTED SN OBS AT 2602250051. 2602250051-2602260051
2/24/26
1341Z
3/8/26
2000Z
!ABE 02/209 ABE APRON CARGO APN, HANGAR 2 APN, HANGAR 3 APN, HANGAR 4 APN FICON 10FT SN PILES OBS AT 2602241341. 2602241341-2603082000
2/24/26
0914Z
3/1/26
2000Z
!ABE 02/207 ABE TWY B HLDG PSN SIGN BTN RWY 06/24 AND TWY B5 LGT U/S 2602240914-2603012000
2/24/26
0906Z
3/1/26
2000Z
!ABE 02/206 ABE TWY E HLDG PSN SIGN FOR RWY 06/24 LGT U/S 2602240906-2603012000
2/23/26
0735Z
3/1/26
2000Z
!ABE 02/188 ABE TWY C NO ENTRY SIGN BTN TWY B AND TWY E LGT U/S 2602230735-2603012000
2/23/26
0541Z
!ABE 02/185 ABE NAV ILS RWY 06 LOC NOT MNT 2602230541-2602252000EST
2/21/26
1140Z
3/1/26
2200Z
Runway!ABE 02/152 ABE RWY 06 3000FT DIST REMAINING SIGN LGT U/S 2602211140-2603012200
2/21/26
1140Z
3/1/26
2200Z
Runway!ABE 02/151 ABE RWY 24 4000FT DIST REMAINING SIGN LGT U/S 2602211140-2603012200
2/15/26
1058Z
4/5/26
2100Z
!ABE 02/096 ABE OBST POLE (ASN UNKNOWN) 403941N0752548W (.17NM ENE APCH END RWY 24)
395FT (10FT AGL) NOT LGTD 2602151058-2604052100
2/4/26
2258Z
4/3/26
1900Z
!ABE 02/030 ABE TWY C CL MARKINGS BTN HANGAR 5 TXL AND TWY B FADED 2602042258-2604031900
2/1/26
2227Z
4/10/26
1900Z
Runway!ABE 02/009 ABE RWY 06 PAPI U/S 2602012227-2604101900
12/1/25
1918Z
4/3/26
2000Z
Runway!ABE 12/005 ABE RWY 24 LEAD OFF CL MARKINGS AT TWY A5 NOT STD 2512011918-2604032000
12/1/25
1912Z
4/3/26
2000Z
Runway!ABE 12/003 ABE RWY 06 LEAD OFF CL MARKINGS AT TWY A5 NOT STD 2512011912-2604032000
9/10/24
1759Z
9/30/26
1200Z
!ABE 09/042 ABE OBST CRANE (ASN UNKNOWN) 403851N0752805W (0.93NM W APCH END RWY 06)
450FT (150FT AGL) NOT LGTD 2409101759-2609301200
FDC
2/25/26
0500Z
3/3/26
1100Z
!FDC 6/9471 ABE IAP LEHIGH VALLEY INTL, ALLENTOWN, PA.
ILS OR LOC RWY 6, AMDT 24...
ILS OR LOC/DME RWY 24, AMDT 1B...
ILS RWY 6 (SA CAT I AND II), AMDT 24...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STW VOR/DME UNMONITORED. 2602250500-2603031100EST
12/9/25
1706Z
!FDC 5/6643 ABE IAP LEHIGH VALLEY INTL, ALLENTOWN, PA.
RNAV (GPS) RWY 24, AMDT 1C...
LPV DA 612/HAT 226 ALL CATS. TEMPORARY CRANE 520 MSL 1391FT S OF RWY 24 (2022-AEA-2852-NRA).
2512091706-2608301705EST
12/9/25
1702Z
!FDC 5/6639 ABE IAP LEHIGH VALLEY INTL, ALLENTOWN, PA.
ILS OR LOC/DME RWY 24, AMDT 1B...
S-ILS 24 DA 660/HAT 274 ALL CATS, VIS RVR 4500 ALL CATS. TEMPORARY CRANE 520 MSL 1391FT S OF RWY 24 (2022-AEA-2852-NRA).
2512091702-2607211702EST
6/12/25
1833Z
!FDC 5/3545 ABE IAP LEHIGH VALLEY INTL, ALLENTOWN, PA.
ILS OR LOC RWY 13, AMDT 8...
IZKIP FIX MINIMUMS (DUAL VOR RECEIVERS REQUIRED): S-LOC 13 820/HAT 434 ALL CATS. VISIBILITY CATS C/D 3/4.
DISREGARD NOTE: FOR INOPERATIVE MALSR, INCREASE IZKIP FIX MINUMUMS S-LOC 13 CAT C/D VISIBILITY TO 1 MILE.
2506121833-2706151833EST
Yes
ALL
LEHIGH NORTHAMPTON A AUTH
3311 AIRPORT RD
ALLENTOWN, PA 18109
Phone: 610-266-6000
THOMAS R. STOUDT
3311 AIRPORT RD
ALLENTOWN, PA 18109
Phone: 610-266-6001
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
ABE
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

7599 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

120,000lbs
228,000lbs
368,000lbs
--
  Runway 06 Runway 24
True Heading 51°231°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 38' 49"N 40° 39' 36"N
Longitude 75° 27' 02"W 75° 25' 45"W
Elevation 394' 382'
Threshold Crossing Height 74 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 13/31

5800 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
161,000lbs
290,000lbs
--
  Runway 13 Runway 31
True Heading 123°303°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 40° 39' 19"N 40° 38' 48"N
Longitude 75° 26' 59"W 75° 25' 56"W
Elevation 383' 379'
Threshold Crossing Height -- 54 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights Yes
A110-11TPA 1400 FT MSL (1006 FT AGL) RECIPROCATING PROPS; 2000 FT MSL (1606 FT AGL) TURBINE POWERED ACFT.
A110-12TWY B SOUTH OF TWY B3 RSTRD TO ACFT WITH WINGSPAN 118 FT OR LESS.
A110-13TWY E RSTD TO ACFT MAX GWT 12500 LBS.
A110-14TWY J RSTD TO ACFT WITH 118 FT WINGSPAN OR LESS.
A110-15TWY B3 WEST OF RY 13/31 RSTRD TO ACFT WITH WINGSPAN 118 FT OR LESS.
A110-16DURING ATC ZERO EVENTS, ARFF WILL MNT 120.5 FOR EMERG NOTIFICATIONS.
A110-2MIL ACFT PLAN TO PARK & REFUEL ON THE HANGAR-7 APRON.
A110-3BIRDS; GROUNDHOGS & DEER ON & INVOF ARPT.
A110-4FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL - 2 HR PPR.
A110-5TWY C RSTD TO MAXIMUM ACFT WEIGHT 12500 LBS.
A110-6NOISE ABATEMENT PROCEDURES FOR TURBOJET POWERED ACFT IN EFFECT; PREFERENTIAL RY 06/24.
A110-7RY 06 & 24 FLY RY HEADING UNTIL 2000 FT.
A110-8RY 6 13 & 24 DEPS BE ADVISED THAT DEPS ARE OVER A NOISE SENSITIVE AREA.
A110-9RY 31 TURBOJET DEPS TURN RIGHT HEADING 360 DEGS UNTIL 2000 FT MSL.
A39-06/24PCR VALUE: 630/F/C/X/T
A39-13/31PCR VALUE: 150/F/D/X/T
A57-24RY 24 HAS APCH RATIO 47:1 TO DSPLCD THLD AND ROADWAY 540 FT RIGHT & 431 FT LEFT & 654 FT FM RY 24 END.
E60-13_EMASNON-STD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) WITH 35 FT SETBACK 251 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 13.
E60-31_EMASNON-STD ENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) WITH 35 FT SETBACK 263 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 31.
LEHIGH VALLEY INTL (ICAO: KABE, IATA: ABE) is a public airport located in ALLENTOWN, PA, US.
