KAAF
APALACHICOLA RGNL-CLEVE RANDOLPH FLD
PublicPUB

2 miles W of APALACHICOLA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 43' 39"N 85° 01' 39"W
20' MSL
1020' MSL
03W
JET A, 100LL
GAINESVILLE (GNV)
NEW ORLEANS
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KAAF VFR
2:53 AM EDT
Clear
10sm
68°F
65°F
29.98"Hg
050° 4kts
AO2 SLP153 T02000183 $
KAAF 030653Z AUTO 05004KT 10SM CLR 20/18 A2998 RMK AO2 SLP153 T02000183 $
+ Add Your Business

KAAF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
850-203-0001
 119.925

FAA A/FD Pages

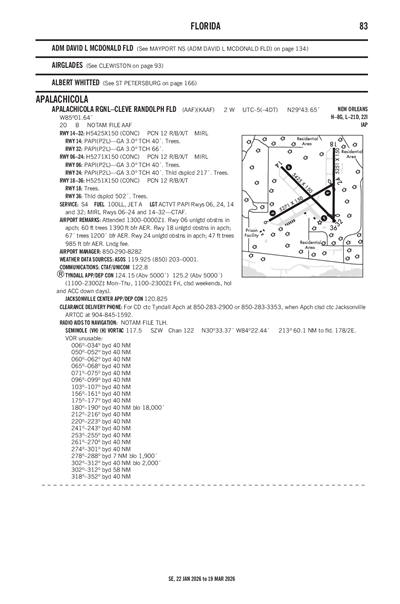

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KPAM (35nm)
Mon, 6/2 10:00 PM CDT
Mon, 6/2 10:00 PM CDT - Wed, 6/4 4:00 AM CDT
VFR
10:00 PM CDT - 4:00 AM CDT
Few 3,500'
6sm
29.97"Hg
020° 6kts
VFR
Becoming 4:00 AM CDT - 11:00 PM CDT
Scattered 3,500'
Few 1,500'
6sm
29.94"Hg
080° 9kts
MVFR
Temporary 2:00 PM CDT - 5:00 PM CDT
Light Showers and Rain
Broken 3,500'
4.97sm
Calm
MVFR
Becoming 11:00 PM CDT - 4:00 AM CDT
Light Thunderstorm and Rain
Broken 1,000'
6sm
29.97"Hg
060° 12kts
Gusts 26kts
TAF KPAM 030300Z 0303/0409 02006KT 9999 FEW035 QNH2996INS
   BECMG 0309/0310 08009KT 9999 FEW015 SCT035 QNH2994INS
   TEMPO 0319/0322 1209G18KT 8000 -SHRA BKN035
   BECMG 0404/0405 06012G26KT 9999 -TSRA BKN010CB QNH2996INS TX31/0319Z TN22/0311Z
KAAF
Domestic
5/17/251100Z !AAF 05/003 AAF RWY 06/24 BTN TWY A AND RWY 14/32 WIP ADJ NORTH SIDE DLY 1100-2300 2505171100-2505312300
5/14/252003Z !AAF 05/001 AAF OBST TOWER LGT (ASR 1028185) 294347.80N0845912.80W (2.1NM E AAF) 229.0FT (219.2FT AGL) U/S 2505142003-2506142359
3/29/250455Z !AAF 03/004 AAF OBST TOWER LGT (ASR 1233825) 295430.40N0850811.00W (12.1NM NNW AAF) 371.1FT (359.9FT AGL) U/S 2503290455-2506062359
FDC
4/15/251957Z !FDC 5/6837 AAF IAP APALACHICOLA RGNL-CLEVE RANDOLPH
FLD, APALACHICOLA, FL.
RNAV (GPS) RWY 32, AMDT 2F...
CHANGE BARO-VNAV NA NOTE TO READ: BARO-VNAV NA WHEN USING ECP
ALTIMETER SETTING.
CHANGE NA AT NIGHT NOTE TO READ: STRAIGHT-IN RWY 32 NA AT NIGHT,
CIRCLING RWY 6, 18, 24, 32, 36 NA AT NIGHT.
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE ECP ALTIMETER SETTING AND INCREASE LPV DA TO 480
FEET AND ALL VISIBILITIES 3/8 SM. INCREASE LNAV/VNAV DA TO 527 FEET
AND ALL VISIBILITIES 3/8 SM. INCREASE ALL MDAS 140 FEET AND LNAV
VISIBILITY CAT C/D 3/8 SM, AND CIRCLING VISIBILITY CAT C/D 1/2 SM.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT TERES ON
T336 SOUTHEAST BOUND.
THIS IS RNAV (GPS) RWY 32, AMDT 2G. 2504151957-PERM
4/15/251957Z !FDC 5/6836 AAF IAP APALACHICOLA RGNL-CLEVE RANDOLPH
FLD, APALACHICOLA, FL.
RNAV (GPS) RWY 24, AMDT 1E...
CHANGE NA AT NIGHT NOTE TO READ: STRAIGHT-IN RWY 24 NA AT NIGHT,
CIRCLING RWY 6, 18, 24, 32, 36 NA AT NIGHT.
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER
SETTING NOT RECEIVED, USE ECP ALTIMETER SETTING AND INCREASE ALL
MDAS 140 FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING
VISIBILITY CAT C/D 1/2 SM.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT TERES ON
T336 SOUTHEAST BOUND.
THIS IS RNAV (GPS) RWY 24, AMDT 1F. 2504151957-PERM
4/15/251957Z !FDC 5/6835 AAF IAP APALACHICOLA RGNL-CLEVE RANDOLPH
FLD, APALACHICOLA, FL.
RNAV (GPS) RWY 14, AMDT 2C...
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
DELETE NOTE: DME/DME RNP-0.3 NA.
DELETE NOTE: STRAIGHT-IN RWY 14 NA AT NIGHT. 20:1 IS CLEAR.
CHANGE CIRCLING NA AT NIGHT NOTE TO READ: CIRCLING RWY 6, 18, 24,
32, 36 NA AT NIGHT.
CHANGE HELICOPTER NOTE TO READ: RWY 14 HELICOPTER VISIBILITY
REDUCTION BELOW 3/4 SM NA.
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE ECP ALTIMETER SETTING AND INCREASE ALL MDAS 140
FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING VISIBILITY
CAT C/D 1/2 SM.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT TERES ON
T336 SOUTHEAST BOUND.
THIS IS RNAV (GPS) RWY 14, AMDT 2D. 2504151957-PERM
4/15/251957Z !FDC 5/6834 AAF IAP APALACHICOLA RGNL-CLEVE RANDOLPH
FLD, APALACHICOLA, FL.
RNAV (GPS) RWY 6, AMDT 1C...
PBN REQUIREMENTS NOTE: RNP APCH - GPS.
DELETE NOTE: DME/DME RNP-0.3 NA.
CHANGE NA AT NIGHT NOTE TO READ: STRAIGHT-IN RWY 6 NA AT NIGHT,
CIRCLING RWY 6, 18, 24, 32, 36 NA AT NIGHT.
CHANGE HELICOPTER NOTE TO READ: RWY 6 HELICOPTER VISIBILITY
REDUCTION BELOW 1 SM NA.
CHANGE ALTIMETER SETTING NOTE TO READ: WHEN LOCAL ALTIMETER SETTING
NOT RECEIVED, USE ECP ALTIMETER SETTING AND INCREASE ALL MDAS 140
FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING VISIBILITY
CAT C/D 1/2 SM.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT TERES ON
T336 SOUTHEAST BOUND.
THIS IS RNAV (GPS) RWY 6, AMDT 1D. 2504151957-PERM
No
0800-1900
FRANKLIN COUNTY
33 MARKET STREET, SUITE 203
APALACHICOLA, FL 32320-2317
Phone: 850-653-9783
STEVE KIRSCHENBAUM
8 AIRPORT ROAD
APALACHICOLA, FL 32320-2317
Phone: 850-290-8282
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
AAF
--
ACTVT PAPI RWY 6, 24, 14, & 32; MIRL RWY 06/24 & 14/32 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

5271 ft. x 150 ft.
CONC
Fair
NONE
MED
12 /R/B/X/T
--
--
--
--
  Runway 06 Runway 24
True Heading 60°240°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 43' 20"N 29° 43' 46"N
Longitude 85° 02' 15"W 85° 01' 23"W
Elevation 19' 19'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

5425 ft. x 150 ft.
CONC
Fair
NONE
MED
12 /R/B/X/T
--
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 29° 43' 58"N 29° 43' 20"N
Longitude 85° 02' 05"W 85° 01' 22"W
Elevation 15' 18'
Threshold Crossing Height 40 ft. AGL 66 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5251 ft. x 150 ft.
CONC
Fair
NONE

12 /R/B/X/T
--
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 29° 44' 11"N 29° 43' 19"N
Longitude 85° 01' 23"W 85° 01' 23"W
Elevation 15' 20'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC TYNDALL APCH AT 850-283-2900 OR 850-283-3353, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
APALACHICOLA RGNL-CLEVE RANDOLPH FLD (ICAO: KAAF, IATA: AAF) is a public airport located in APALACHICOLA, FL.
