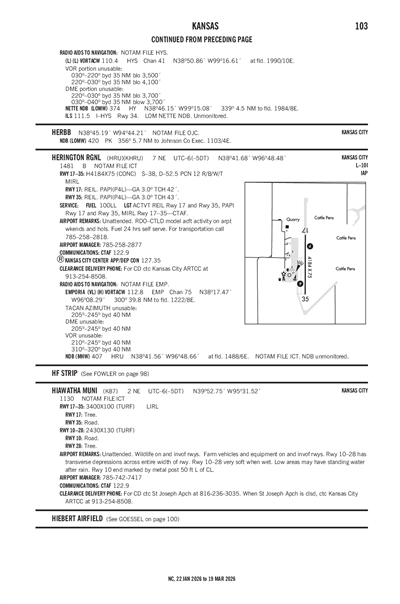

HIAWATHA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

K87
Local K87
HIAWATHA MUNI
PublicPUB

2 miles NE of HIAWATHA, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 52' 45"N 95° 31' 31"W
Elevation
1130' MSL
Pattern Alt
2130' MSL
Mag Variation
2°E
Declination
6°E
Fuel
None Listed
FSS
WICHITA (ICT)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KK83 (12nm) IFR
10:35 PM CST
Mist
Overcast 600'
5sm
42°F
42°F
30.14"Hg
020° 6kts
AO2 T00550055
METAR KK83 040435Z AUTO 02006KT 5SM BR OVC006 06/06 A3014 RMK AO2 T00550055
+ Add Your Business

K87 FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9

FAA A/FD Pages

Terminal Area Forecast

KSTJ (29nm)
Tue, 3/3 5:32 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 11:00 PM CST
Mist
Overcast 1,000'
6sm
040° 7kts
IFR
11:00 PM CST - 12:00 PM CST
Mist
Overcast 700'
6sm
040° 6kts
MVFR
12:00 PM CST - 6:00 PM CST
Overcast 1,500'
6sm
VRB° 4kts
TAF KSTJ 032332Z 0400/0424 04007KT 6SM BR OVC010
   FM040500 04006KT 6SM BR OVC007
   FM041800 VRB04KT P6SM OVC015
K87
EffectiveExpiresCategoryNOTAM
Domestic
12/3/25
2335Z
3/3/26
0500Z
!ICT 12/073 K87 OBST TOWER LGT (ASR 1223592) 395102.70N0953109.90W (1.7NM S K87) 1402.9FT (299.9FT AGL) U/S 2512032335-2603030500
No
UNATNDD
CITY OF HIAWATHA
701 OREGON ST
HIAWATHA, KS 66434
Phone: 785-742-7417
MIKE NICHOLS
701 OREGON ST
HIAWATHA, KS 66434
Phone: 785-742-7417
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
Sunset to Sunrise
--
N/A
Yes
No
No
Tie-Down
No
None
None
None
None
Crop Dusting

Runway 10/28

2430 ft. x 130 ft.
TURF
Good
NONE


--
--
--
--
  Runway 10 Runway 28
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

3400 ft. x 100 ft.
TURF
Fair
NONE
LOW

--
--
--
--
  Runway 17 Runway 35
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2FARM VEHICLES AND EQUIPMENT ON AND INVOF RYS.
A110-3WILDLIFE ON & INVOF RYS.
A110-4FOR CD CTC ST JOSEPH APCH AT 816-236-3035. WHEN ST JOSEPH APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
A33-10/28_CONDVERY SOFT WHEN WET. LOW AREAS MAY HAVE STANDING WATER AFTER RAIN.
A33-10/28_SURFTRANSVERSE DEPRESSIONS ACROSS ENTIRE WIDTH OF RY.
A42-10_MARKRWY 10 END MARKED BY METAL POST 50 FT L OF CL.
E111EXISTED PRIOR TO 1959.
HIAWATHA MUNI (IATA: K87) is a public airport located in HIAWATHA, KS, US.
